Technical data
04.00 | WSG 50 | Assembly and operating manual | en | 389474
27
3.4.8 Ethernet
The Ethernet interface can be used both for commands as well as
for configuration via the integrated web server. It is presented via
a 4-way M8 connector (socket).
4
RD-
3
RD+
1
TD+
1
Brown
TD+
4 RD-
Black
3
Blue
RD+
2
TD-
2
White
TD-
shielding plate
shield
connector position
braid
signal

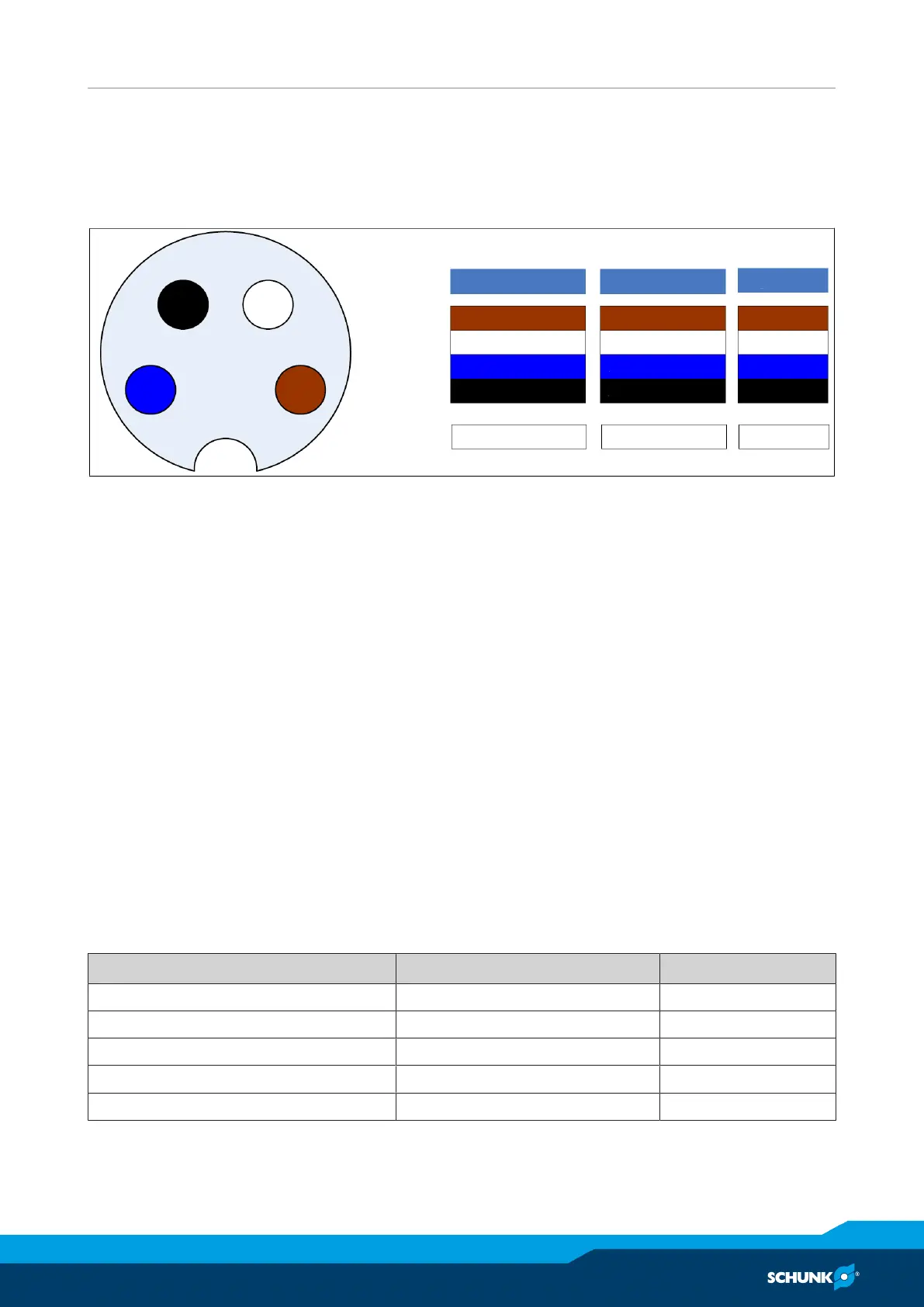

Pin assignment of the Ethernet connector (view on the socket).
The following cables are suitable to connect the Ethernet
interface:
• Type: KA GGN0804-PG-00300-R Ethernet cable, length 3m,
4 pole M8 connector straight to RJ-45, Ident-No. 0349620
• Type: KA GGN0804-PG-00500-R Ethernet cable, length 5m,
4 pole M8 connector angle to RJ-45, Ident-No. 0349621
Commands are sent to the product via TCP/IP connections, using
the TCP or UDP protocol. For further information, please see the
"WSG Command Set Reference Manual" (on the accompanying CD
or can be called up via the web interface).
The product currently also supports the following network
services:
• DHCP (dynamic IP addresses)
• SNTP (network time)
• HTTP (web user interface)
• Multicast DNS (decentralized resolution of host names)
Interface specification:
Parameter Value Note
Transmission standard IEEE 802.3
Communication standard TCP/IP (IPv4)
Transmission speed [MBit/s] 10; 100 Auto-Negotiated
Transmission type Half duplex
Auto-MDIX yes
