Technical data
18
04.00 | WSG 50 | Assembly and operating manual | en | 389474

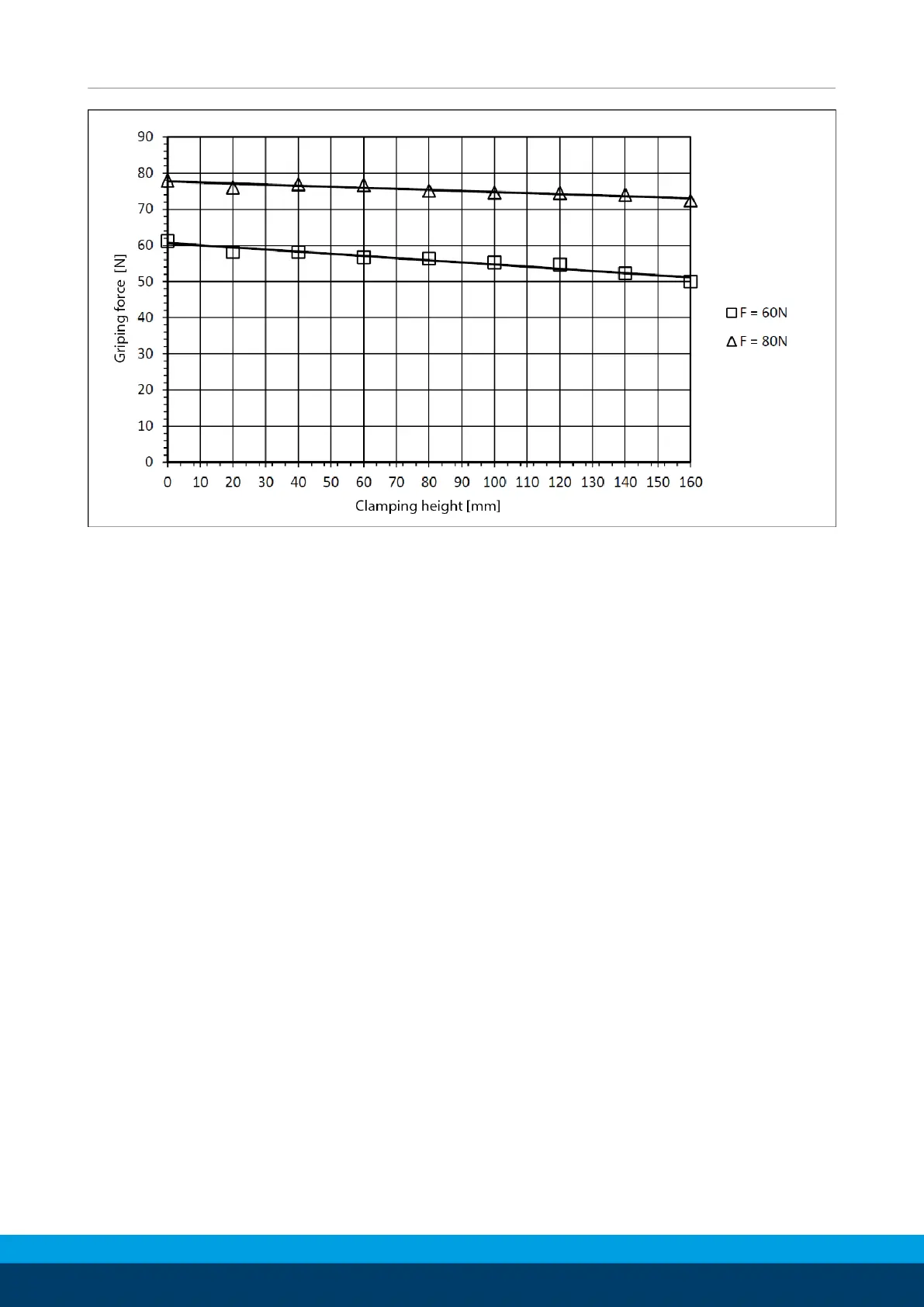

Gripping force in dependence of the clamp height
Definition of the nominal gripping force
To determine the nominal gripping force, the product is non-
positively mounted to an aluminum plate, see following figure. The
plate itself is thermally insulated from the underlying surface. With
an ambient temperature of 22° C the product can hold with the
nominal gripping force for at least 5 hours.
