User Manual
Chapter 1. Overview
Page 1-14 P/N 2349-72784-00

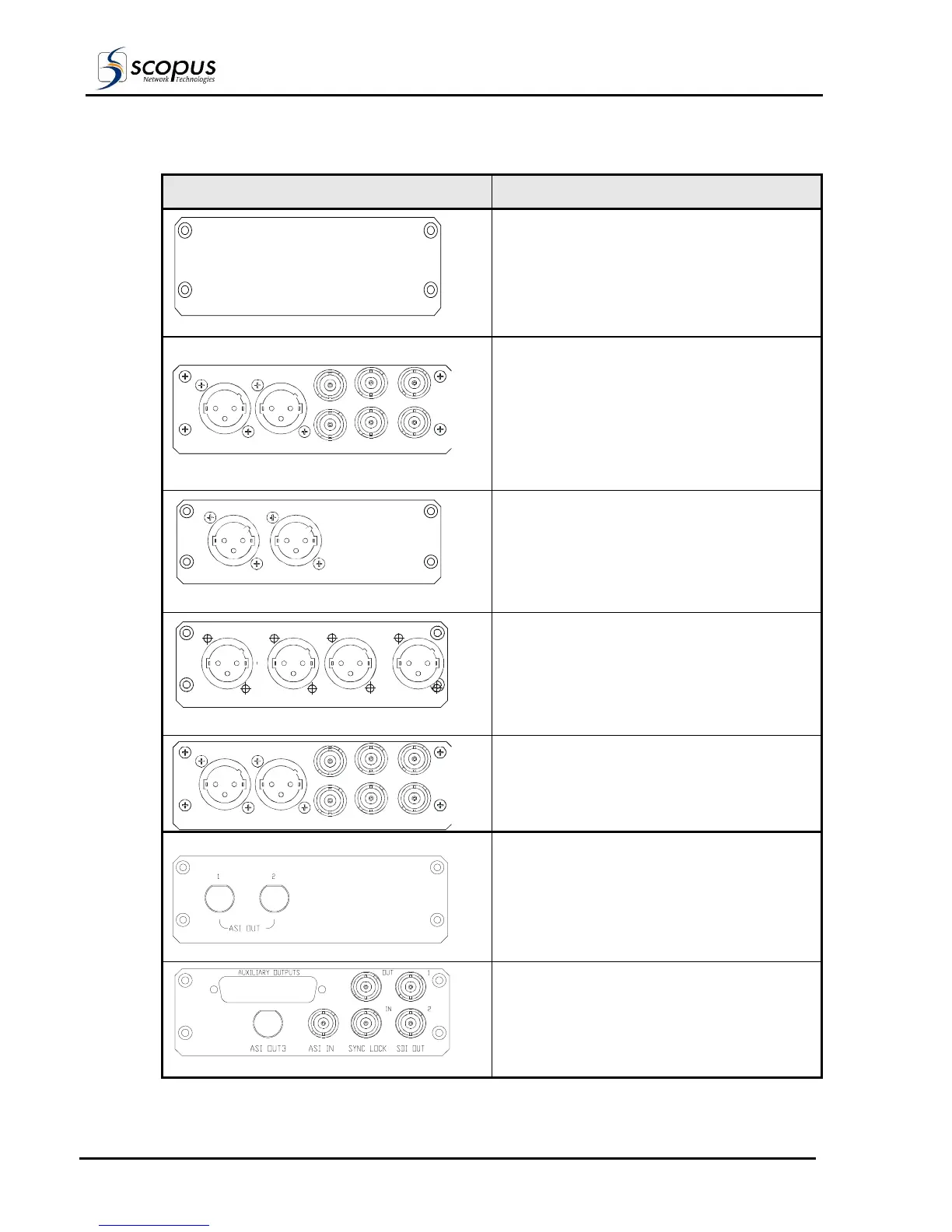

Table 1-4: IRD-2600/IRD-2800 Output Option
OPTION CARD DESCRIPTION
BLANK OUTPUT PANEL
This panel is supplied as default when no
output option is ordered.
Full With ASI In and OUT 3
Balanced Analog Audio over XLR or
AES/EBU (SP-DIF) over XLR
ASI IN + OUT Loopthrough
Sync lock IN + OUT
SDI OUT 1 + 2
BALANCED AUDIO OUT
LEFT2 RIGHT2
Balanced Analog Audio 2 Out over XLR
BALANCED AUDIO OUT
LEFT2 RIGHT2
LEFT 3 RIGHT3
Balanced Analog Audio 2 and 3 Out over
XLR
(Applicable Only for IRD-2800)
Full With ASI OUT 1 + 2
ASI OUT1 and OUT2
This option is supplied when the receiver
option installed is the G.703 interface.
The panel provides 2 ASI OUT via BNC
connectors
AUXILIARY
