2.4. Cable Connections
2.4.1. IRD-2600 and IRD-2800 Connection Setup and Options
This section describes the cable connections for ground, power, and interface cables
connected to the rear panel of the IRD-2600 and IRD-2800 Integrated Receiver Decoders.
The IRD-2600 or the IRD-2800 are ordered with a specific configuration to suit the
requirements of a specific application. It should therefore not be assumed that any two IRDs
are identical both on a hardware and software level. To accommodate such flexibility, the IRD
is designed with a high degree of modularity and is assembled in the factory with the
customer-selected options.
The rear panel can be logically dived in to three sections: Left (Receiver), Center (Decoder)
and Right (Output). The left and right sections are comprised of option cards. The
functionality of the available options is described in paragraph 1.2.4, Configuration Options.
The left section provides fron-end connectors for the receiver option installed in the IRD. The
center (Decoder) section is a standard feature for digital and analog audio options. Right
section provides the selected outputs of the IRD.
Figure 2-2 shows two examples of IRD rear panel configurations.
Example A shows the Decoder configured for output over RCA connectors.
Example B shows the XLR alternative.
The following sub-paragraphs detail the pin-assignment of the connectors on the IRD Rear
Panel.

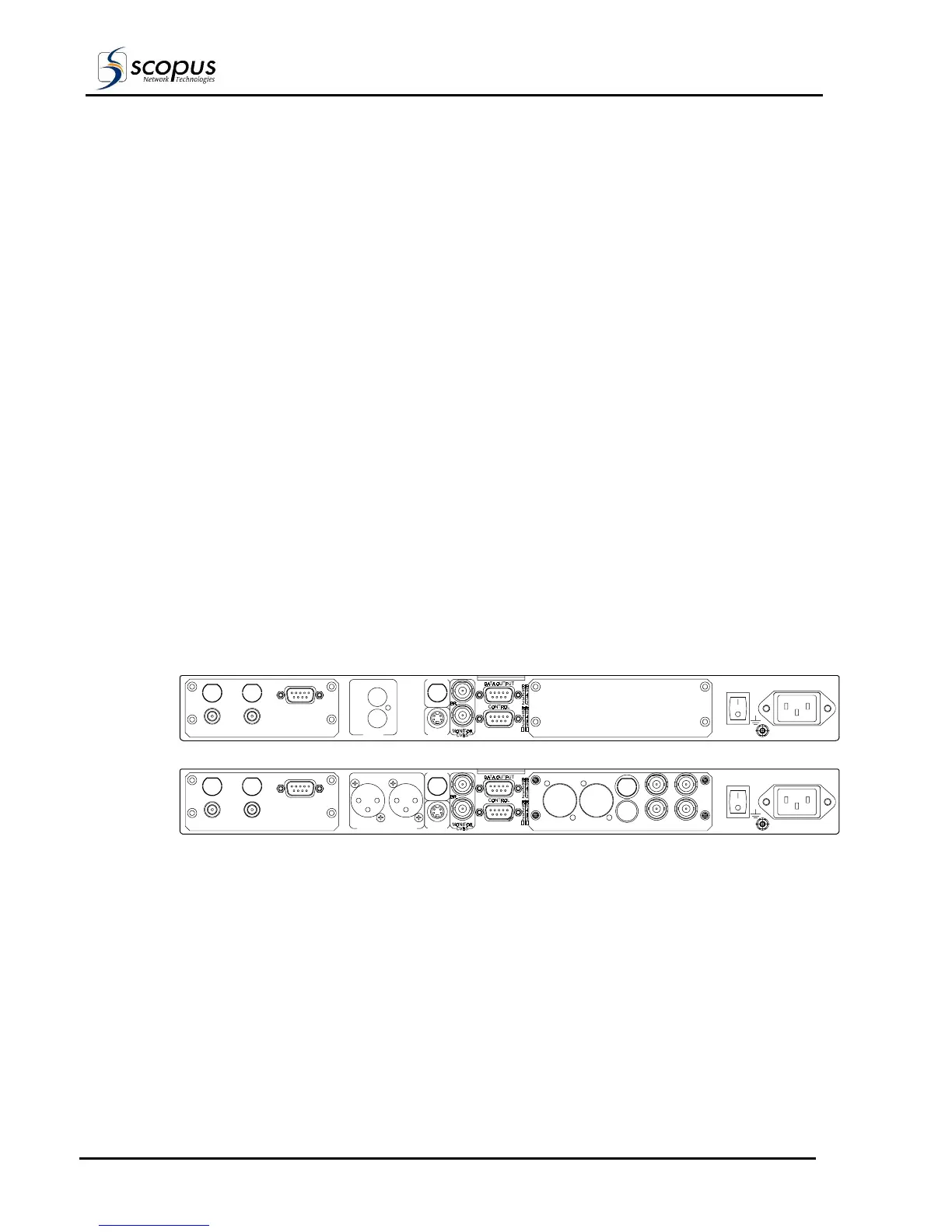

Figure 2-2: IRD-2600 and IRD-2800 Rear Panel Configurations
ASI
OUT 1
RF IN
- 25dBmMax OUT
ASI
OUT 2
LOOPTHROUG H
RS422/GPI
LEFT
RIGHT
AUDIO
AES/EBU
AC3
S-VIDEO
100-240VAC 1A
50/60 Hz
[]
[]
LEFT2
AES/EBU1
[]
[]
RIGHT2
AES/EBU2
BALANCED AUDIO ASI SY NC LOCK SDI OUT
OUT
3
OUT 1
IN IN 2
100-240VAC 1A
50/60 Hz
LEFT1 RIGHT1
ANALOG AUDIO OUT
AES/EBU
AC3
S-VIDEO
Example A
Example B
ASI
OUT 1
RF IN
- 25dBmMax OUT
ASI
OUT 2
LOOPTHROUG H
RS422/GPI
