Seastar Solutions Optimus 360 Installation Manual

6-11
© 2014 SeaStar Solutions Optimus 360 Installation Supplement, Rev. B

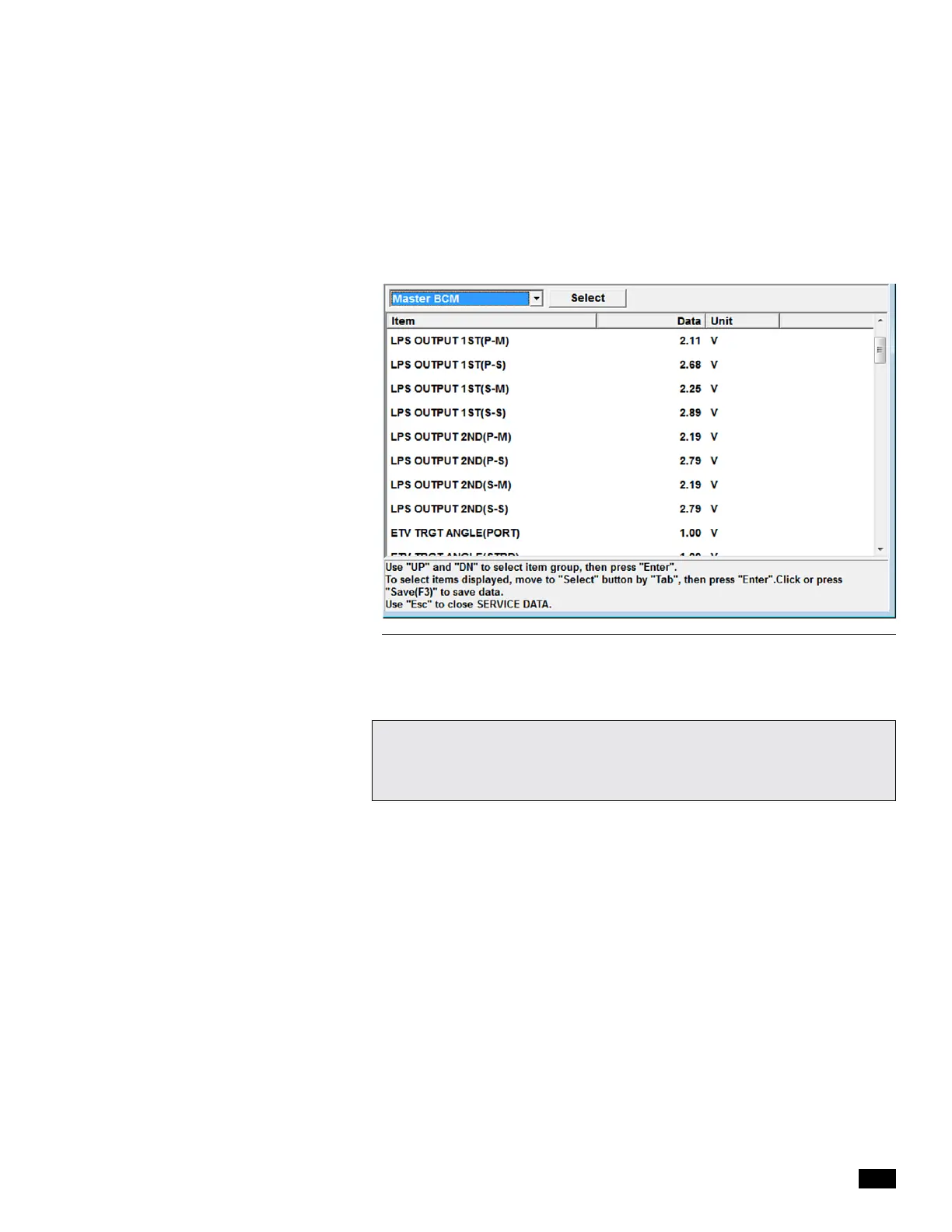

Figure 6-15. Service Data. Sample of typical values
YOU ARE NOW READY TO SEA TRIAL THE STEERING SYSTEM.
REFER TO BOOK 50. WHEN THE SEA TRIAL IS COMPLETE, PROCEED
TO THE JOYSTICK
SETUP IN SECTION 9 OF THIS MANUAL.
9. Cycle the power (off for ten seconds) and then click System Check
on the SDS home screen. This will bring up a window displaying
Service Data. Check that there are eight LPS Output(…) items in
the list with an associated voltage reading for each. See Figure
6-15.
