A01350693 Rev:P ECO: 7476 Date: 04/14/08 16
XIU
FIRE
PUSH
DOOR EGRESS
AUX
CA
NL
CANHGND
SECURE CARE
PRODUCTS
LOCK
- +
NO C NC
- +
KEYPAD
O
N
1 2 3 4
1 2 3 4 5 6 7
1) POWER
2) NOT USED
3) NOT USED
4) NOT USED
LOCK
NO C NC
AUX
NO C NC NO C NC
2
4
5
6
3
1

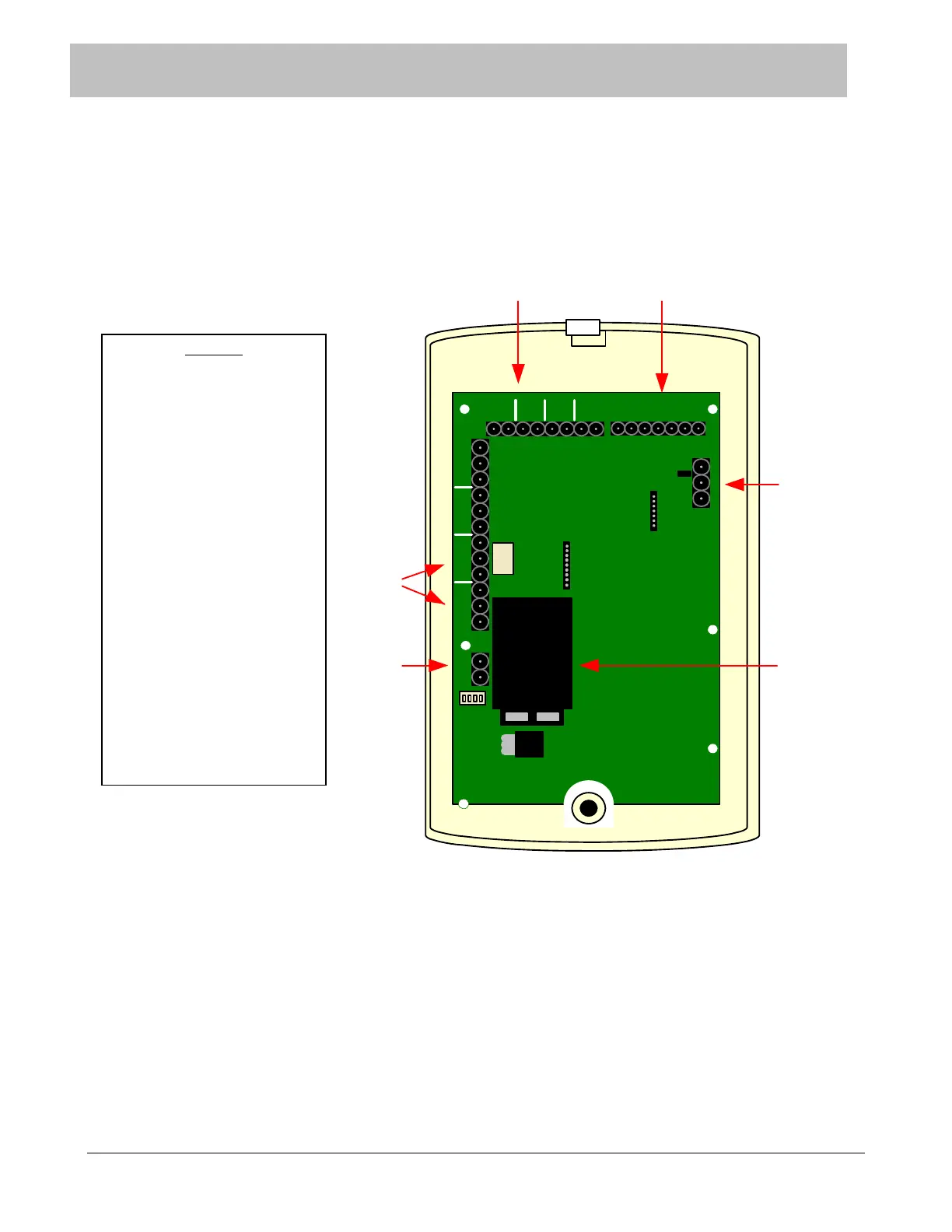

Figure 6-3 Rear View of XIU
SECTION 6 SYSTEM COMPONENT DESCRIPTIONS
LEGEND
1. XIU to XIU (Only used
with Cutband System. Refer to
ID with Stat Manual)
2. RS-232 connection to
Nurse Station or SCP Software
3. Controlled area network
(CAN)
4. Back up battery holder
5. DC power input connection
6. Auxiliary relay connection
(Form C Relays that activate
during a cutband alarm)
