Secure Care 135DE - Transmitter and System Tester Procedures

A01350693 Rev:P ECO: 7476 Date: 04/14/08 43
Using a Transmitter/System Tester

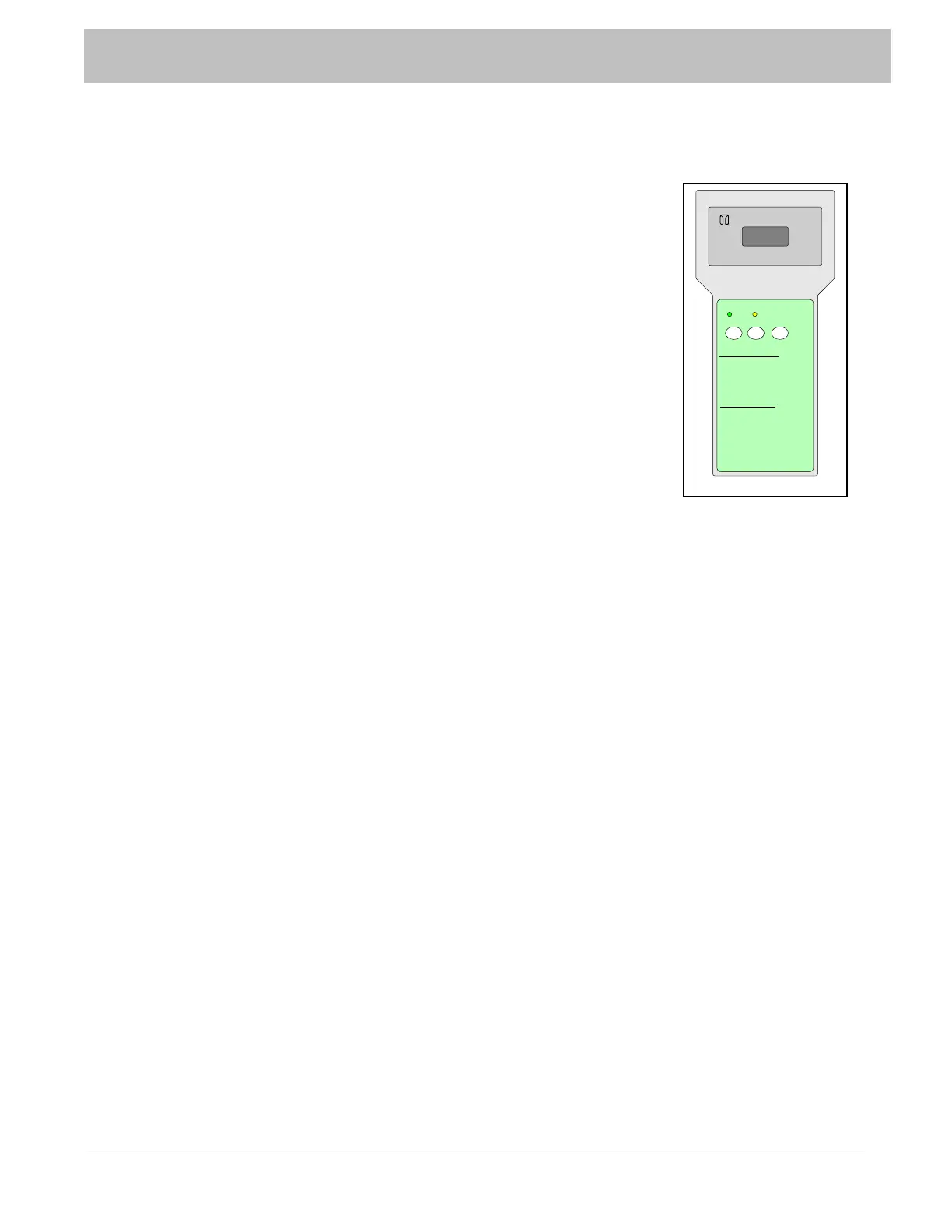

Testing a Transmitter Using the 135 Tester:
1. Press the ON button.
2. Bring the transmitter near the top of the Tester and verify the signal
LED blinks.
3. Verify the display reads “TX OK”.
Testing a Door System Using the 135 Tester:
1. Press the ON button.
2. Bring the tester near the door and press the DOOR button.
3. Verify the door system arms (if the door is closed) or alarms (if the
door is open).
SECTION 11 TESTING
Secure Care Products, Inc.
TM
PWR SIGNAL
ON OFF Door
1. PRESS ON BUTTON
2. BRING TRANSMITTER NEAR TOP OF
TESTER & VERIFY SIGNAL LED BLINKS
3. VERIFY DISPLAY READS "TX OK"
1. PRESS ON BUTTON
2. BRING TESTER NEAR THE DOOR
AND PRESS THE DOOR BUTTON
3. VERIFY THAT DOOR SYSTEM ARMS
TO TEST A TRANSMITTER
TO TEST DOOR SYSTEM
