Secure Care 135DE - ID Nurse Station Console; Figure 6-4 Rear View of ID Nurse Station Console

A01350693 Rev:P ECO: 7476 Date: 04/14/08 17
ID Nurse Station Console
y
y
y
123
4
5
6
7
8
9
10
11
12
1. POWER
2.MUTE
3.LOUD/SOFT
4.N/A

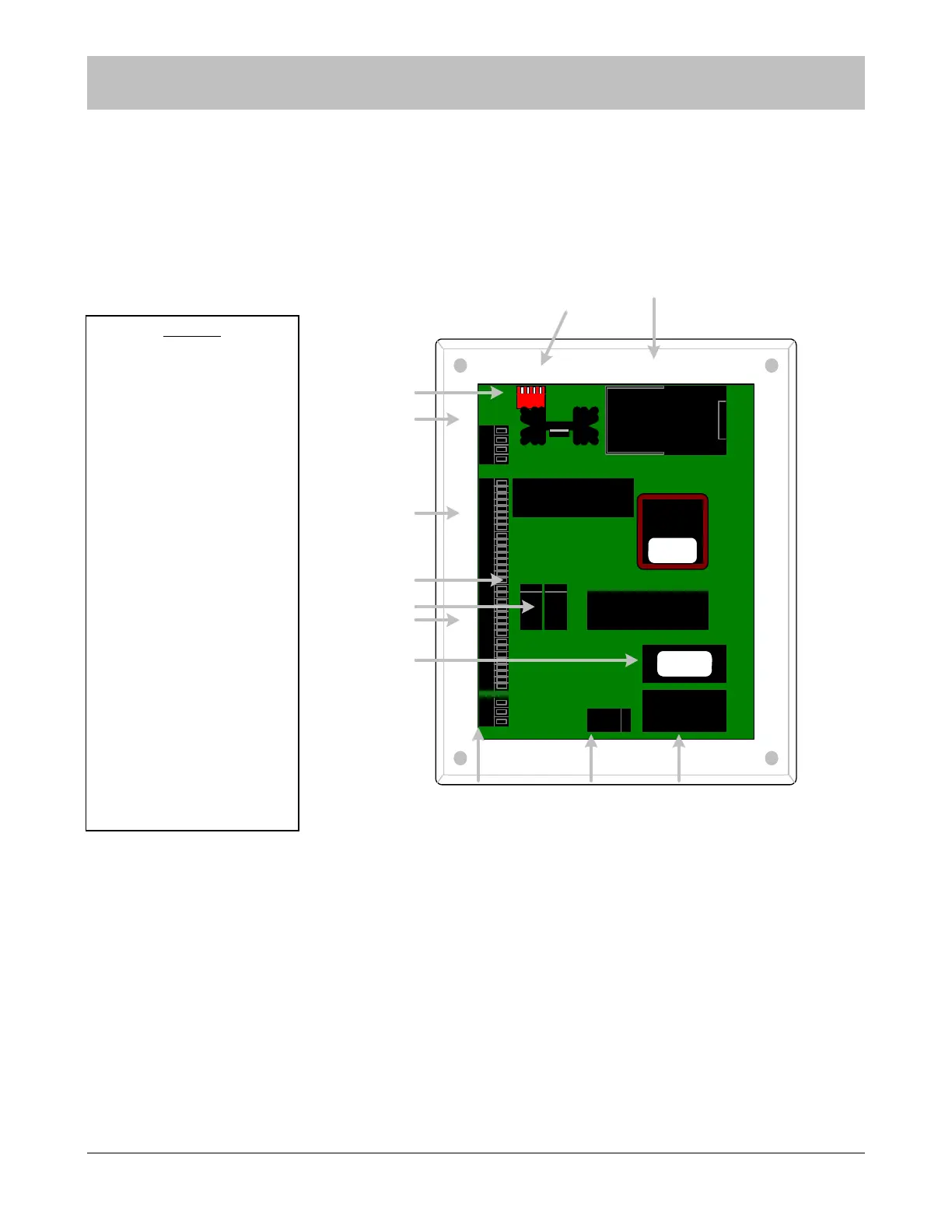

Figure 6-4 Rear View of ID Nurse Station Console
SECTION 6 SYSTEM COMPONENT DESCRIPTIONS
LEGEND
1. Non-volatile RAM storage
2. RS-232output chip
3. RS-232 output connector
4. Software EPROM
5. RS-232 device input
connections ( Term. 9-16)
6. RS-232 input chip (Term.
13-16)
7. RS-232 input chip (Term. 9-
12)
8. Dry contact device input
(Term. 1-8)
9. DC input power connector
10. DC power regulator and
heat sink
11. Power / Volume control
switches
12. Back up battery holder
