Delayed Egress and Fire Alarm Connections
Each of our panels has a delayed egress connection and a fire alarm connection per Life Safety Code 101 and NFPA code
101. The
fire alarm panel connection is designed to disengage the magnetic lock in the event of a fire alarm. The delayed egress connection
will sense when pressure is applied to the door, releasing the magnetic lock 15 seconds later. Connect the positive lead from your
fire alarm panel to the positive termination on the panel; connect the negative lead from your fire panel to the negative termination
on the panel. When connecting the delayed egress (1), simply connect both leads
from the lock to the panel. Polarity does not
matter. Connections are shown in Fig. 9-11.

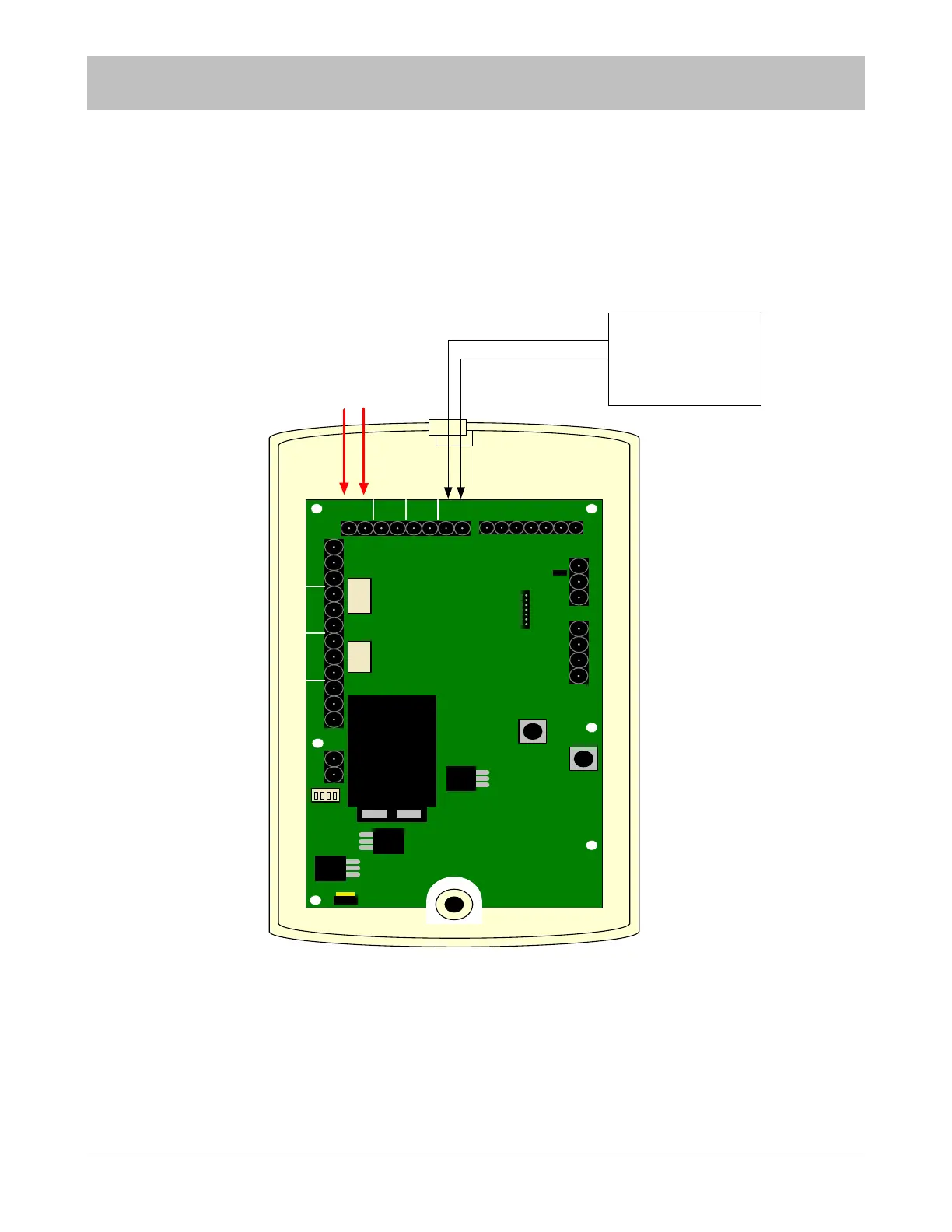

Figure 9-11 Delayed Egress and Fire Alarm Connections
SECTION 9 INSTALLATION AND CONNECTIONS
FIRE PUSH DOOR EGRESS
LOCK AUX
CA
NL
CAN
H
GN
D
SECURE CARE PRODUCTS
AUXLOCK
- +
NO C
NC
NO C
NC
NO C
NC
NO C
NC
- +
KEYPAD
O N
1 2 3 4
1 2 3 4 5 6 7
1 2 3
4
1
1
Normally Open(NO)
Or Normally
Closed(NC) Dry
Conctact Fire Alarm
Relay
