Secure Care 135DE - LED Nurse Station Annunciators and Keypads;Buttons

A01350693 Rev:P ECO: 7476 Date: 04/14/08 18
203/204 LED Nurse Station Annunciator
NOTE: Actual Nurse Station connections may differ from figures below.

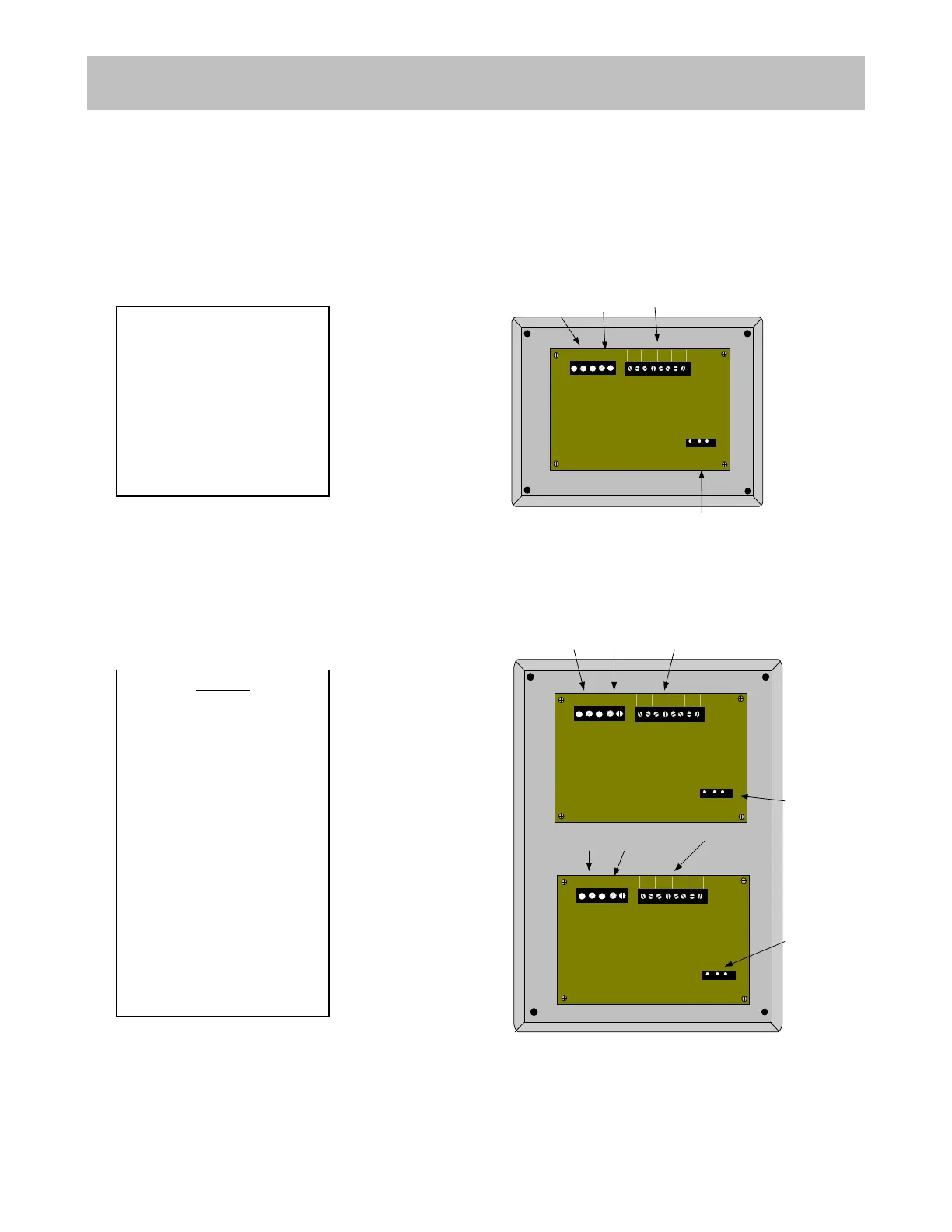

Figure 6-5 New A02030901 Nurse Station Annunciator
Figure 6-6 New A02040901 Nurse Station Annunciator
SECTION 6 SYSTEM COMPONENT DESCRIPTIONS
LEGEND
1. Form C output relay
2. DC power inputs
3. Dry contact position inputs
(1-4)
4. Volume adjustment
5. Dry contact position inputs
(5-8)
6. DC power inputs
7. Shield drain ground
connection
8. Volume adjustment
LEGEND
1. Form C output relay
2. DC power input
3. Dry contact position inputs
(1-4)
4. Volume adjustment
+
4321
-
All Terminal strips are
removable for ease of
installation
4
2 3
M L H
1
NO C NC
+
4321
-
All Terminal strips are
removable for ease of
installation
M L H
NO C NC
+
4321
-
All Terminal strips are
removable for ease of
installation
M L H
NO C NC
1 2 3
4
5
67
8
