Interfacing the Magnetic Solutions Lock
The 135DE Exit Panel can be interfaced with a magnetic lock. The connections to the locks should be made as shown in Fig. 9-8.
Green
EGRESS
LOCK AUX AUXLOCK
NO C NC NO C NC NO C NC NO C NC
DOOR
Orange
Green/White
Orange
Orange/white
Orange/white
Blue/White
NC COM REED -12 +
( - )
( + )
Lock
Power
Supply
Blue

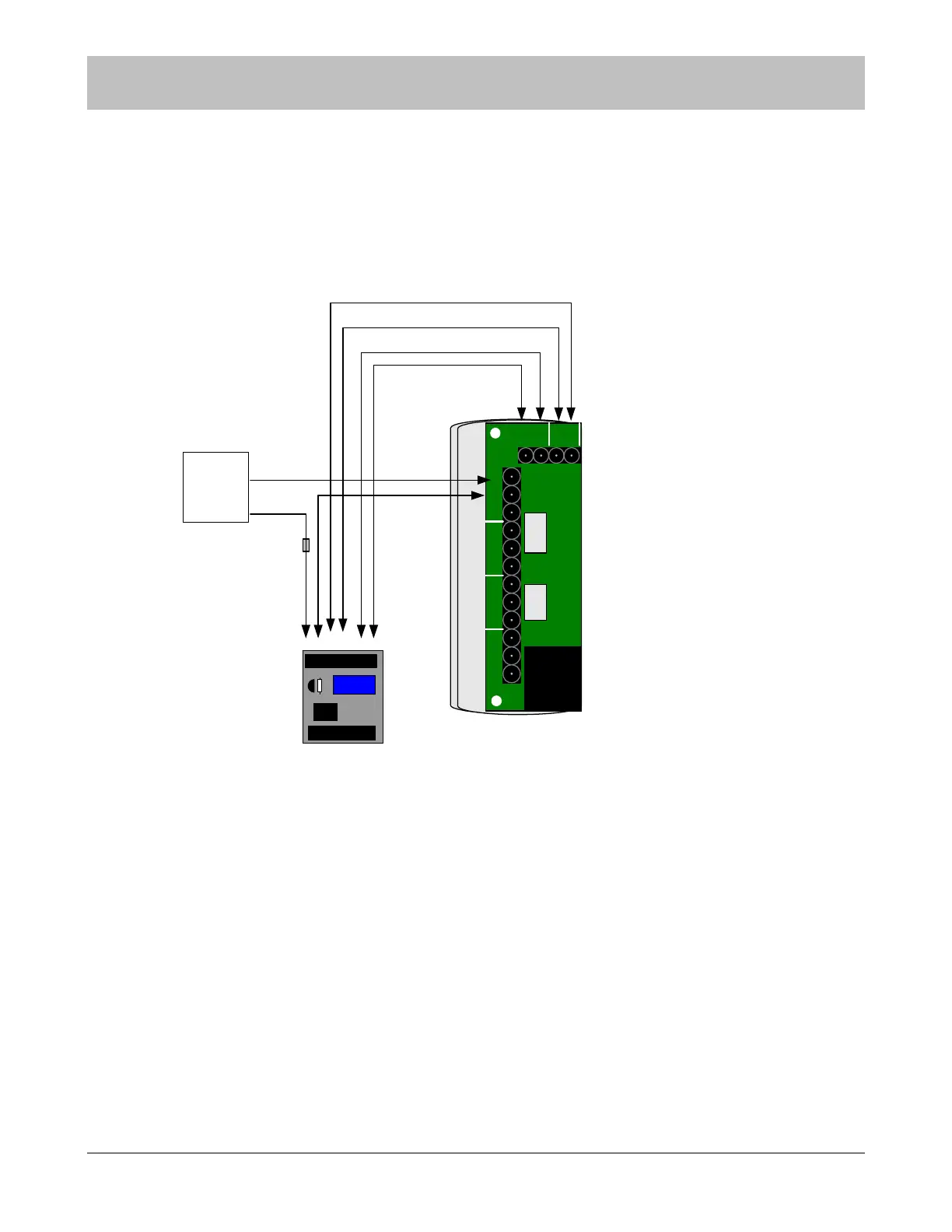

Figure 9-8 135DE Exit Panel to Magnetic Solutions Lock Connections
