SECTION 9 INSTALLATION AND CONNECTIONS
Basic Installation of Mounting Enclosures
Surface Mount Enclosure (XIU, 135DE)
The surface mount enclosure is designed to be mounted on the wall adjacent to the exit to be monitored. It mounts using the
screws, anchors, and strain relief provided with the enclosure. Wiring may be routed through one or more of the three provided
knockout locations or through surface mounted non-metallic conduit into the knockouts on the top of the enclosure. The center of
the enclosure should be mounted 48” above the floor in accordance with ADA requirements.

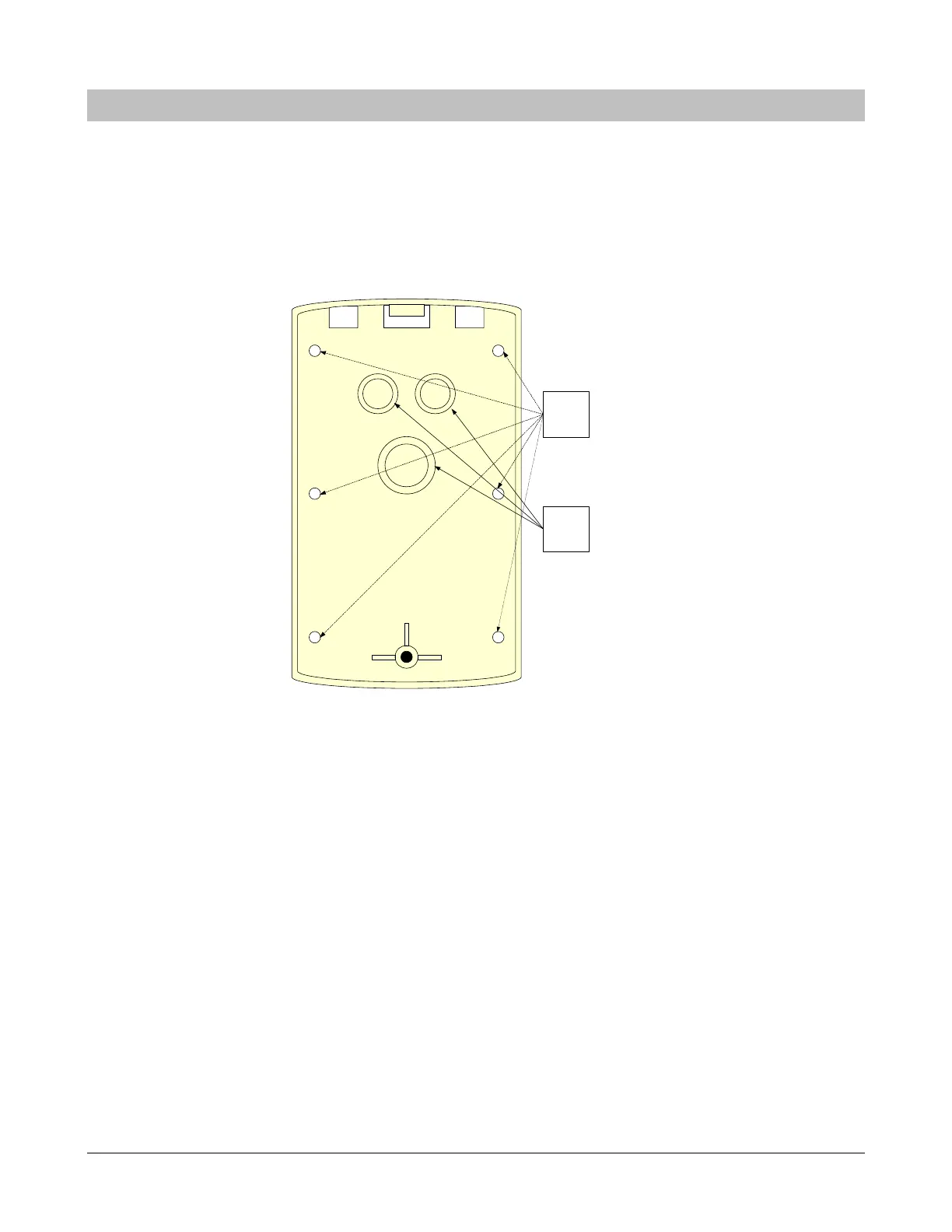

Figure 9-1 Surface Mount Enclosure for Exit Panels
After routing wires appropriately to the enclosure location, use the enclosure as a template to mark and drill for the six anchor
locations. Drill a ¼” hole for each anchor location and install plastic anchors provided. Apply strain relief connectors to the
required knockout locations. Route wires through the strain relief connector. Tighten strain relief connector around the wires.
Wires should withstand 35 pounds of pull force without slipping through connector. Use the #10 X 1” stainless steel, pan head,
sheet metal screws provided to mount the enclosure to the wall.
NOTE: Strain relief of routed cables is required to retain UL product listing. If above
instructions are not followed, product listing is subject to removal.
PUSH
+ -
enclosure
mounting
holes
knockout
holes
