Interfacing Magnetic Locks
The 135DE Exit Panel can be interfaced with a magnetic lock. The connections to the locks should be made as shown in Fig. 9-7.
The 135DE Exit Panel can also be interfaced to two locks.

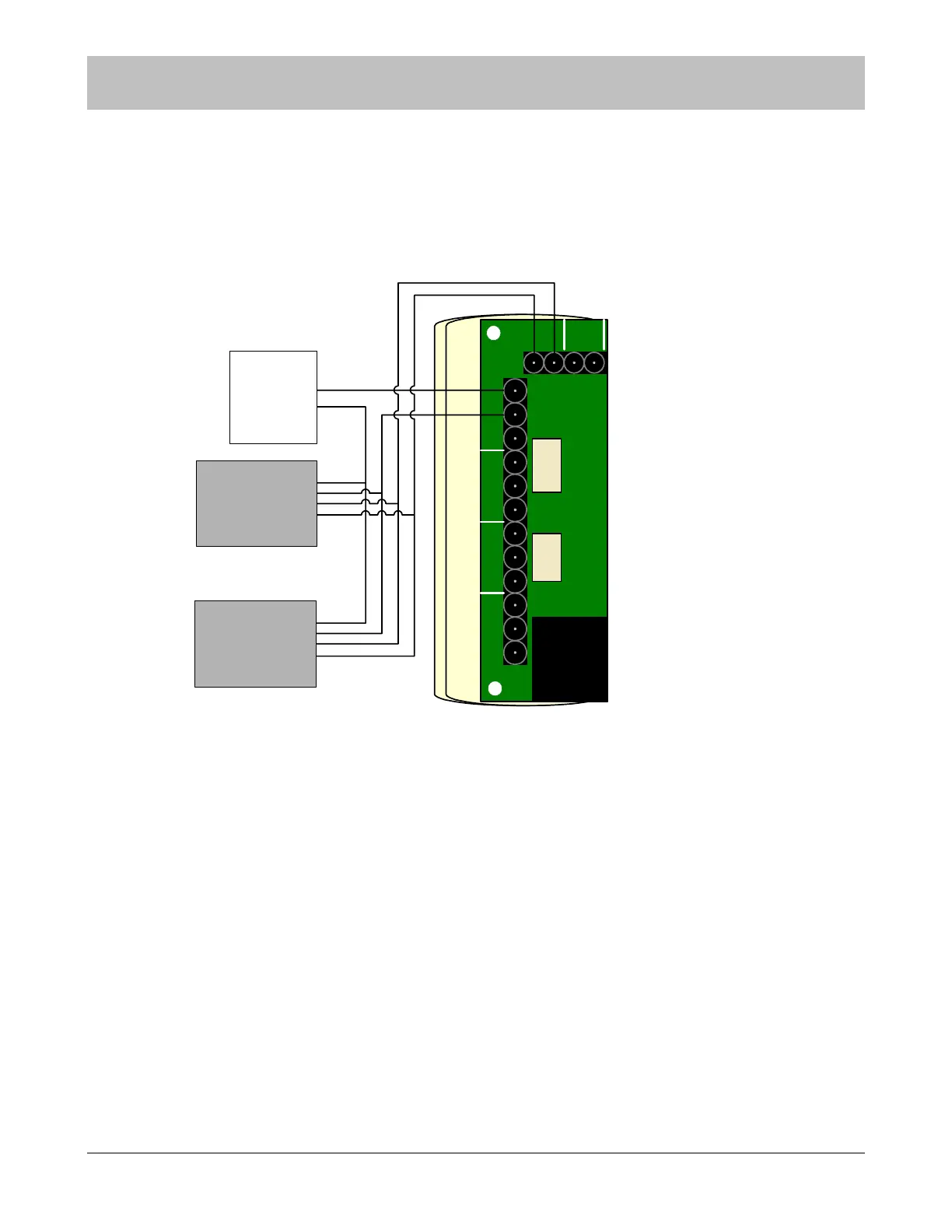

Figure 9-7 135DE Exit Panel to Dortronics Lock Connections
SECTION 9 INSTALLATION AND CONNECTIONSSECTION 9 INSTALLATION AND CONNECTIONS
EGRESS
LOCK AUX AUXLOCK
NO C NC NO C NC NO C NC NO C NC
DOOR
Black
Black
Black
Red
Red
Red
Green
Green
Green
White
White
White
Lock
Power
Supply
Dortronics and
Locknetics
301 Door Lock
Dortronics and
Locknetics
301 Door Lock
