A01350693 Rev:P ECO: 7476 Date: 04/14/08 26
Remote Annunciation
Remote annunciation provides a method of displaying conditions of the installed system to varying degrees in other locations of the
facility as required by the policies and procedures in place. These locations can include, but are not limited to, security offices, risk
management offices, centralized staffing locations, and facility operator offices. The amount of information provided at a remote
location will vary by product purchased and installed. At a minimum, the location of an alarm can be identified by each remote
annunciator.
The following diagrams and text references will guide you through the application of the different products available with the
system. Contact your Sales Representative if there are any questions in regards to adding or changing your remote annunciation
product.
A02030901 (A02040901) Nurse Station Annunciator
The A02030901 (A02040901) Nurse Station Annunciator is a basic dry contact driven series of LED’s and piezo sounders designed
to provide a specific location of a device in alarm. The device in alarm can include, but is not limited to, 500DE, 135, 135DE or a
panic button. There are no communication requirements from the field device to the annunciator. The field device can provide a
dry contact closure during an alarm event. If each field device is wired properly to the remote annunciation location, the closure
will provide an alarm on one of four (or eight) LED locations on the face of the unit.
Each field device requires a two conductor shielded home run (single length of wire from beginning point to end point) without any
breaks or splices.
The A02030901 Nurse Station Annunciator requires a mounting box A10000210 for flush mounted applications and mounting box
401 for surface mounted applications. The A20240901 Nurse Station Annunciator requires a mounting box 449 for flush mounted
applications and mounting box 448 for surface mounted applications.
+
4321
-
All Terminal strips are
removable for ease of
installation
M L H
NO C NC
FIRE
PUSH DOOR EGRESS
LOCK
AUX
CA
N
L
CAN
H
GN
D
SECURE CARE
PRODUCTS
AUXLOCK
- +
NO C NC NO C NC NO C NC
NO C NC
+
-
KEYP
AD
O
N
1 2 3
4
1 2 3 4 5
6 7
1 2 3 4

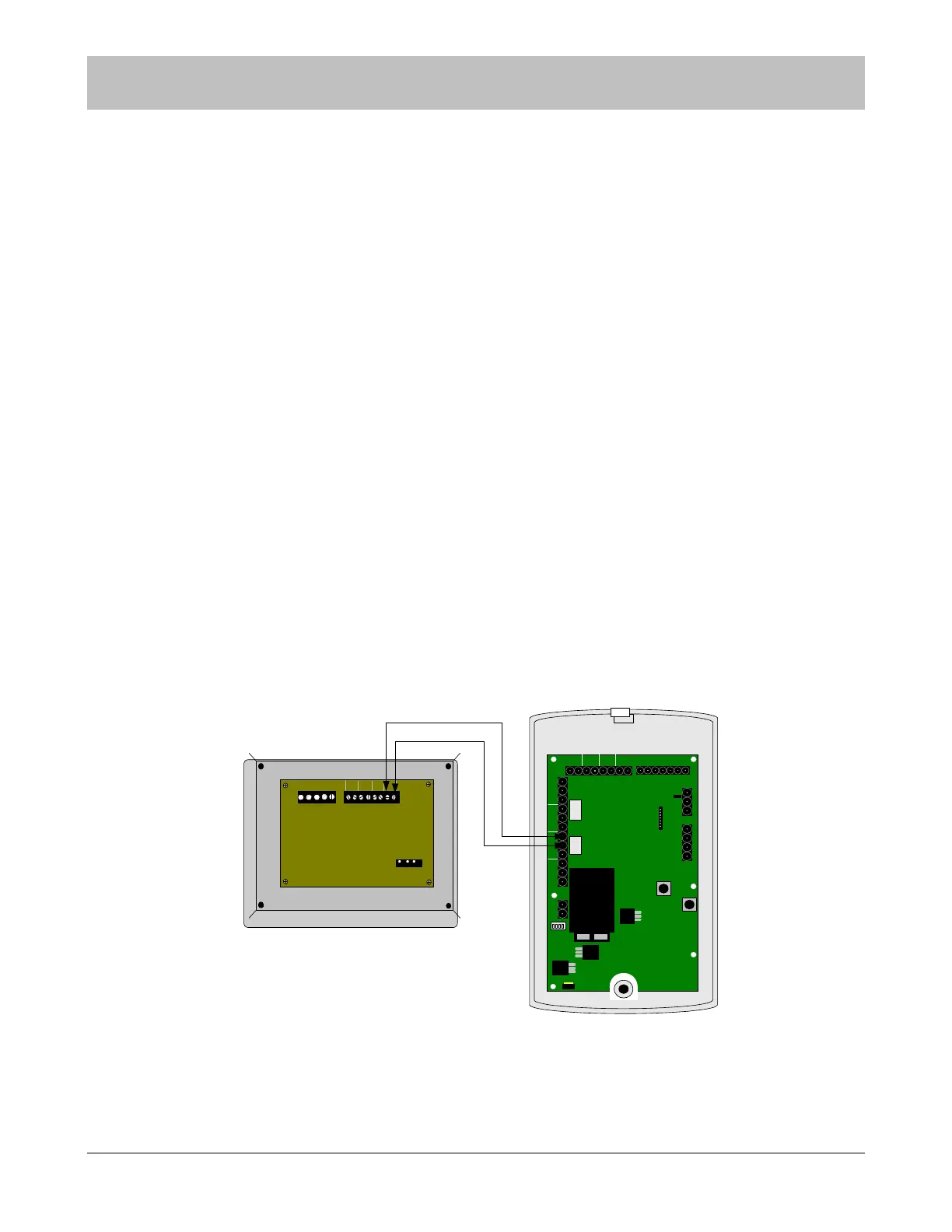

Figure 9-5 Connection Between the A02030901/A02040901 and the 135DE Exit Panel
Connection should be made using the Normally Open (NO) and Common © on the back of the 135DE Exit Panel.
SECTION 9 INSTALLATION AND CONNECTIONS
