Interfacing Two Magnetic Solutions Locks
The 135DE Exit Panel can also be interfaced to two Magnetic Solutions locks. Make connections as shown in Fig. 9-9. The two locks
should be wired in series not in parallel.

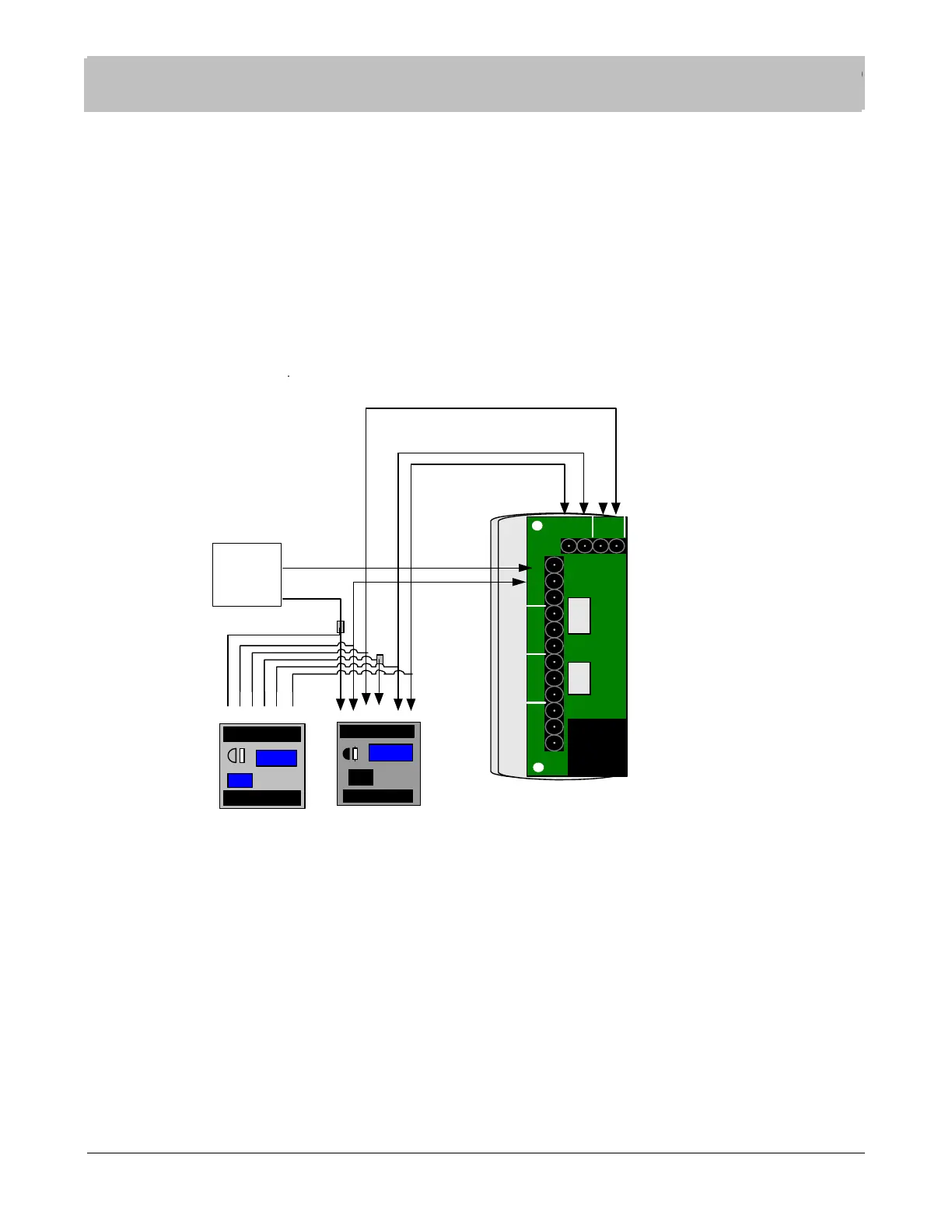

Figure 9-9
135DE Exit Panel to Two Magnetic Solutions Locks Connections
SECTION 9 INSTALLATION AND CONNECTIONS
SECTION 9 INSTALLATION AND CONNECTIONS
Green
EGRESS
LOCK
AUX
AUXLOCK
NO C NC NO C NC NO C NC NO C NC
DOOR
Orange
Green/White
Orange
Orange/white
Orange/white
Blue/White
NC COM REED -12
+
( - )
( + )
POWER
SUPPLY 12V
Blue
NC COM REED -12+
VVV V VV
