Seg WI Series User Manual

4.1.3.2 Temporary Blocking
Blockings
wiProtGeneral_Y04
name .
ExBlo
no assignment
1..n, Assignment List
&
name .
Function
Inactive
Active
name . ExBlo-I
2
(The General Protection module is not deactivated or blocked)
Prot . Active
name . Active
name = all modules that are blockable
Assignment
name .
Mode
-
use
[Device planning / Projected Elements]
Blocking, if the assigned signal is active

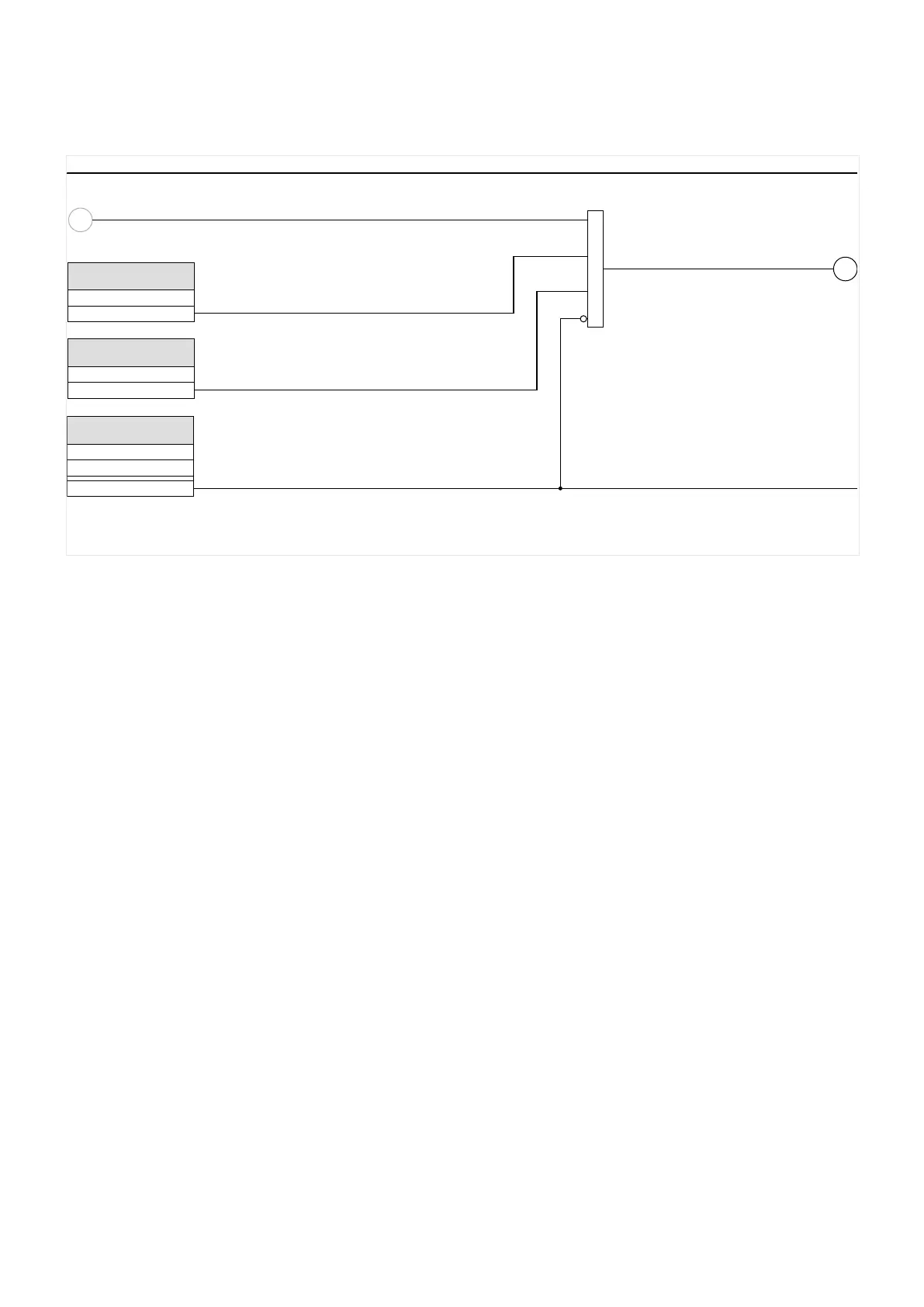

Fig. 43: Principle of the activation and blocking of an example protection stage named »name«.
To block a particular protection stage temporarily by an active signal:
•
There is for each protection stage a setting »ExBlo«, to which a signal can be
•
assigned. This signal can be selected from a list of device-internal and external
signals. (“External signals” are those received from a Digital Input.) The blocking
becomes active when the assigned signal is active.
130 WIC1 WIC1-1.0-EN-MAN
4 Protective Elements
4.1.3.2 Temporary Blocking
