Functionality
External Protection - Module
wiExtTrip_Y01
2
ExP .
Condition **
no assignment
1..n, Assignment List **
(Stage is not deactivated and no active blocking signals)
ExP = ExP[x] *
t
0
ExP .
t
&
19
ExP . Pickup
≥1
ExP . Trip
21
ExP .
Definition
20
ExP . Alarm
&
&
[Device planning / Definition]
DI[x] *
Assigned Signal **
Trip
Alarm

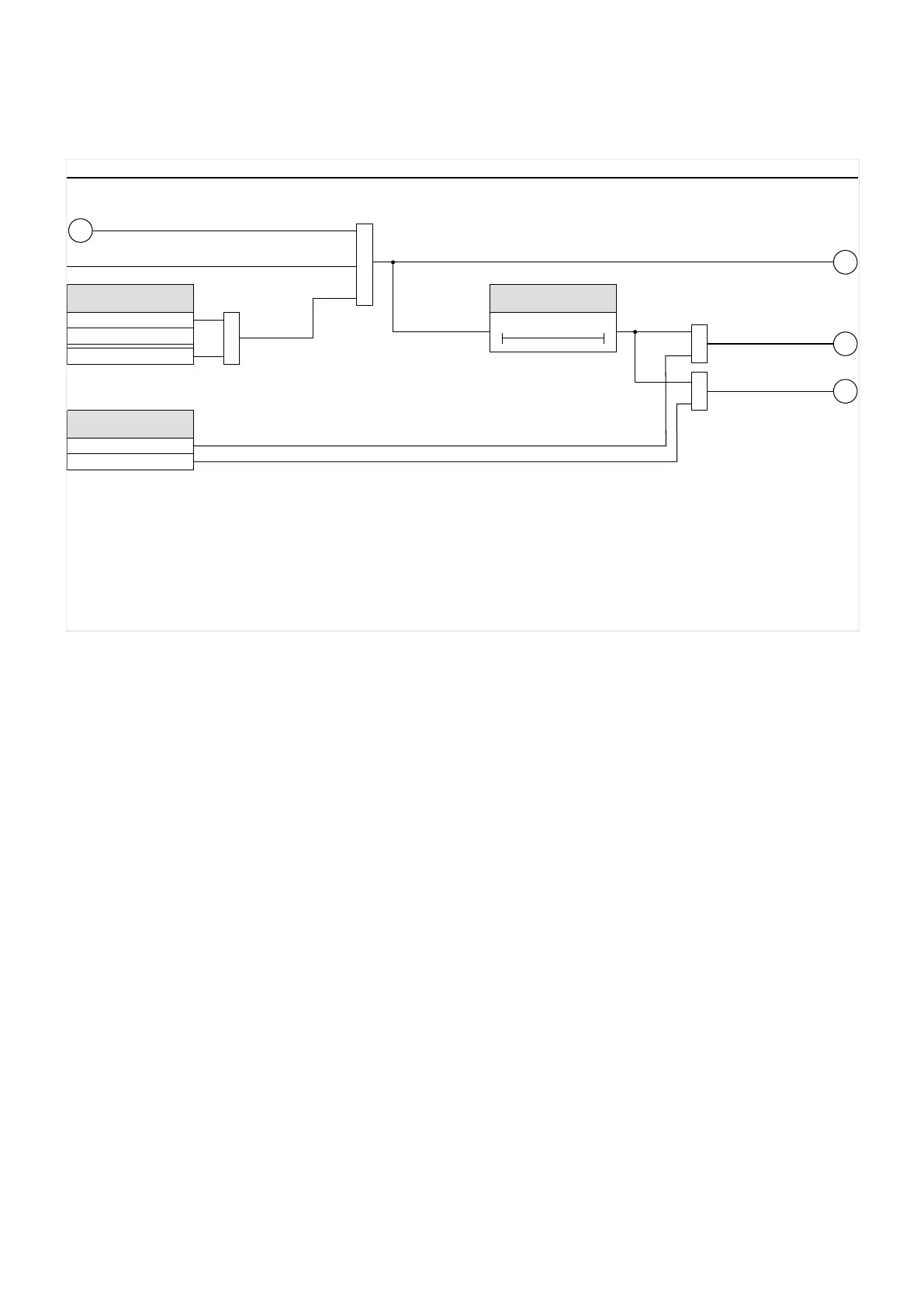

Fig. 61:
Functionality of the »ExP« module.
* The setting »Trigger Signal«, that de󰊟nes which »ExP[x]« instance uses which Digital
Input, is not available for most devices and has therefore not been added to this diagram.
** The assignment of an additional condition at »Condition« is available only for »ExP[2]«.
170 WIC1 WIC1-1.0-EN-MAN
4 Protective Elements
4.11.1 Functionality
