[Protection Para / Breaker & Trip] »Aux ON«
You typically assign one of the two Digital Inputs here.
• For the signal for the switchgear state OPEN (“OFF”) – if wired/required – the same•
assignments are available:
[Protection Para / Breaker & Trip] »Aux OFF«
You can connect one of the position indicators' contacts (either the »Aux ON« or the »Aux
OFF«), so that you still have the other Digital Input available. However, for some applications
it can also be recommended to connect both position indicators.
Thereafter the trip coil output has to be connected with the switchgear.
Switchgear
wiProtGeneral_Y05
Switchgear
Prot .
Aux ON
&
30
Prot . DI 1
Prot . DI 2
no assignment
1..n, Assignment List
DI 1
Prot .
Aux OFF
&
31
no assignment
1..n, Assignment List
DI 2
Position Indication
Digital Inputs
[Aux ON]
[Aux OFF]

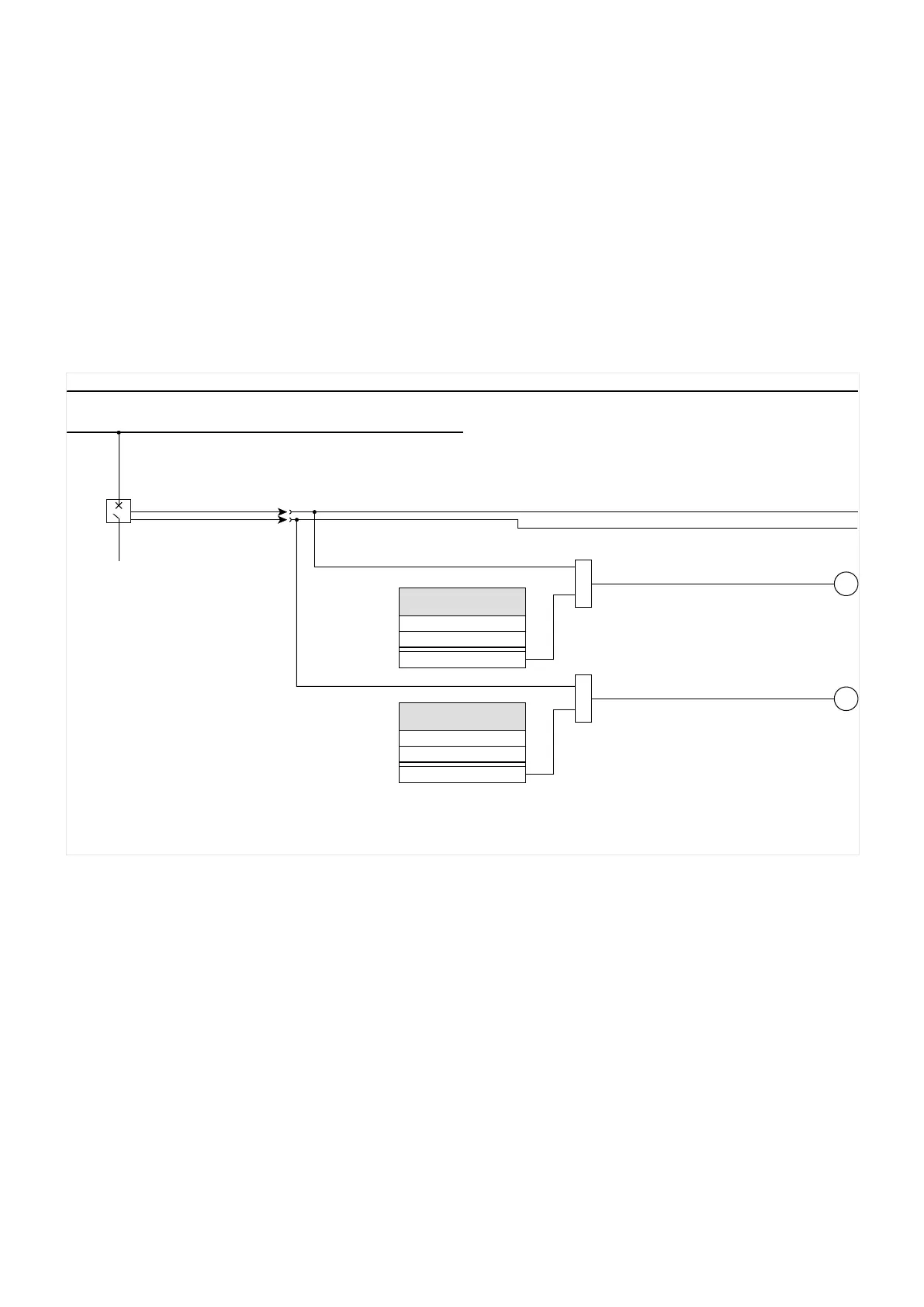

Fig. 44:
Position Indication via Digital Inputs (example “DI 1”, “DI 2” with WIC1‑4xxxxC).
