Seg WI Series User Manual

HPT_Y07
Active
name .
Function
Inactive
1
2
If the setting value of parameter »name .
Function« is set to “Inactive”, then output 1 is
active and output 2 is inactive.
If the setting value of parameter »name .
Function« is set to “Active”, then output 1 is
inactive and output 2 is active.
HPT_Y08
name .
ExBlo1
no assignment
1..n, Assignment List
The setting value of parameter »name .
ExBlo1« is not a choice from a simple, 󰊟xed
selection list, but it is another parameter
(usually a binary output signal) that is assigned
from a parameter list.
This means that the setting parameter assumes
the value of the assigned parameter. In case of
a binary output signal, for example, it means
that the parameter »name . ExBlo1« is active
whenever the assigned output signal is active.
If no signal has been assigned then the
output is always inactive (and only the “no
assignment” box, which is not connected in this
example, would be active).
HPT_Y19
IL1
I<
I>
IL1
I .
Two types of comparators (“Schmitt triggers”):
Top row: If the analog input value (here:
the phase current IL1) is greater than the
speci󰊟ed threshold (here: the setting value
of the parameter »I . I>«) then the output
becomes active.
Bottom row: This type has the opposite
functionality: If the analog value IL1 is below
the threshold (here: the setting value of the
parameter I<«) then the output becomes
active.
HPT_Y0A
├─────────────────┤
t
on
t
off
t-Off Delay
t-On Delay
Timer stage: If the input becomes active, then
the output becomes active after the time t
on
(setting value of »t-On Delay«) has elapsed
(switch-on delay).
If the input becomes inactive again, then the
output signal becomes inactive after the other
speci󰊟ed duration has elapsed (switch-o󰊞 delay
t
o󰊞
, setting value of »t-O󰅯 Delay«).
HPT_YX0
name .
Trip duration time
t
Hold time: This is a pulse which is triggered by
the input (and in this case, the pulse duration is
settable via parameter).
HPT_YX1
&
≥1
=1
The usual set of logic operators: AND, OR,
eXclusive OR (from left to right). The second
input of the XOR operator is negated.
29WIC1WIC1-1.0-EN-MAN
2 WIC1 – Introduction and General Information

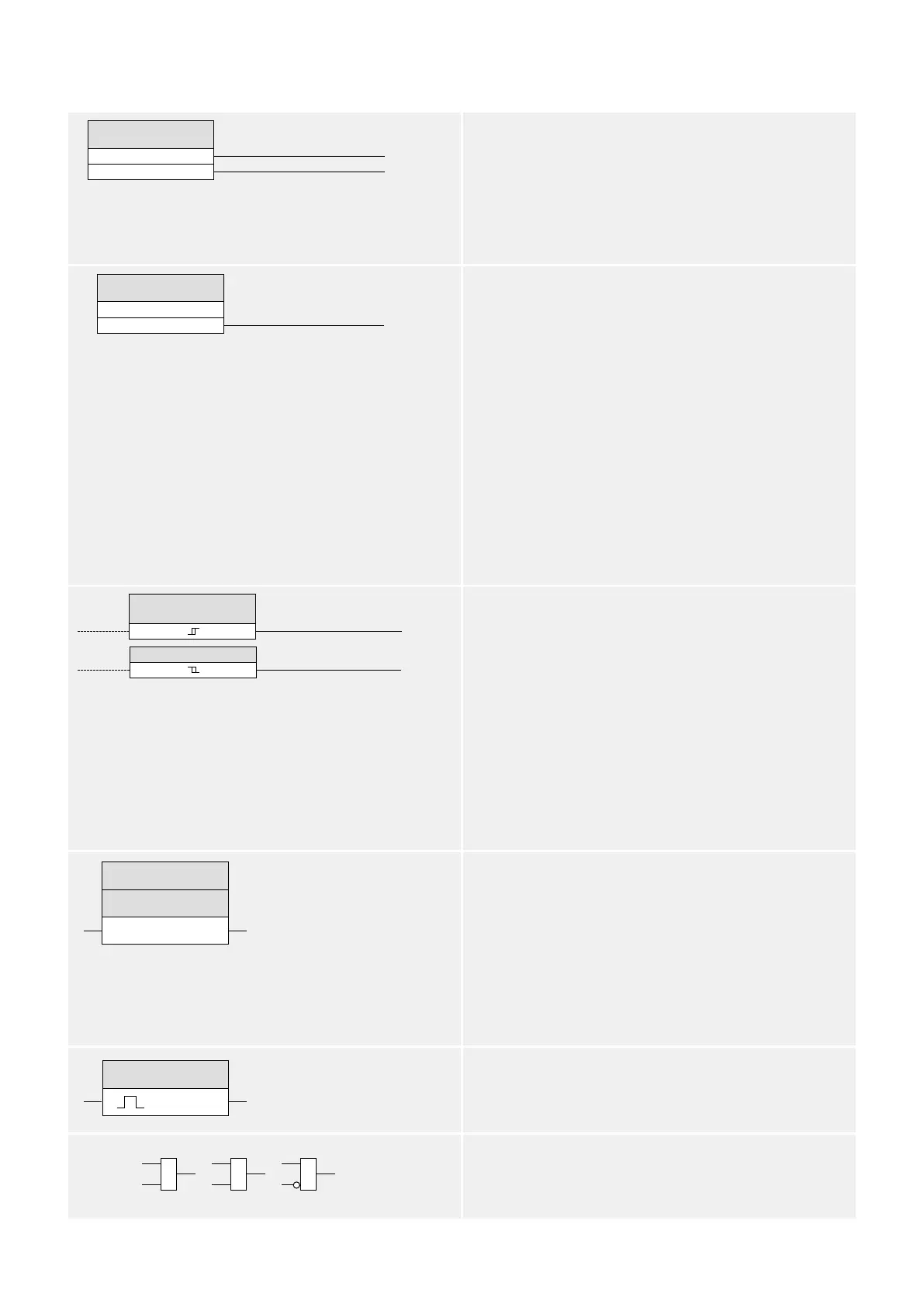

2.5.1 Symbols in Function Diagrams
