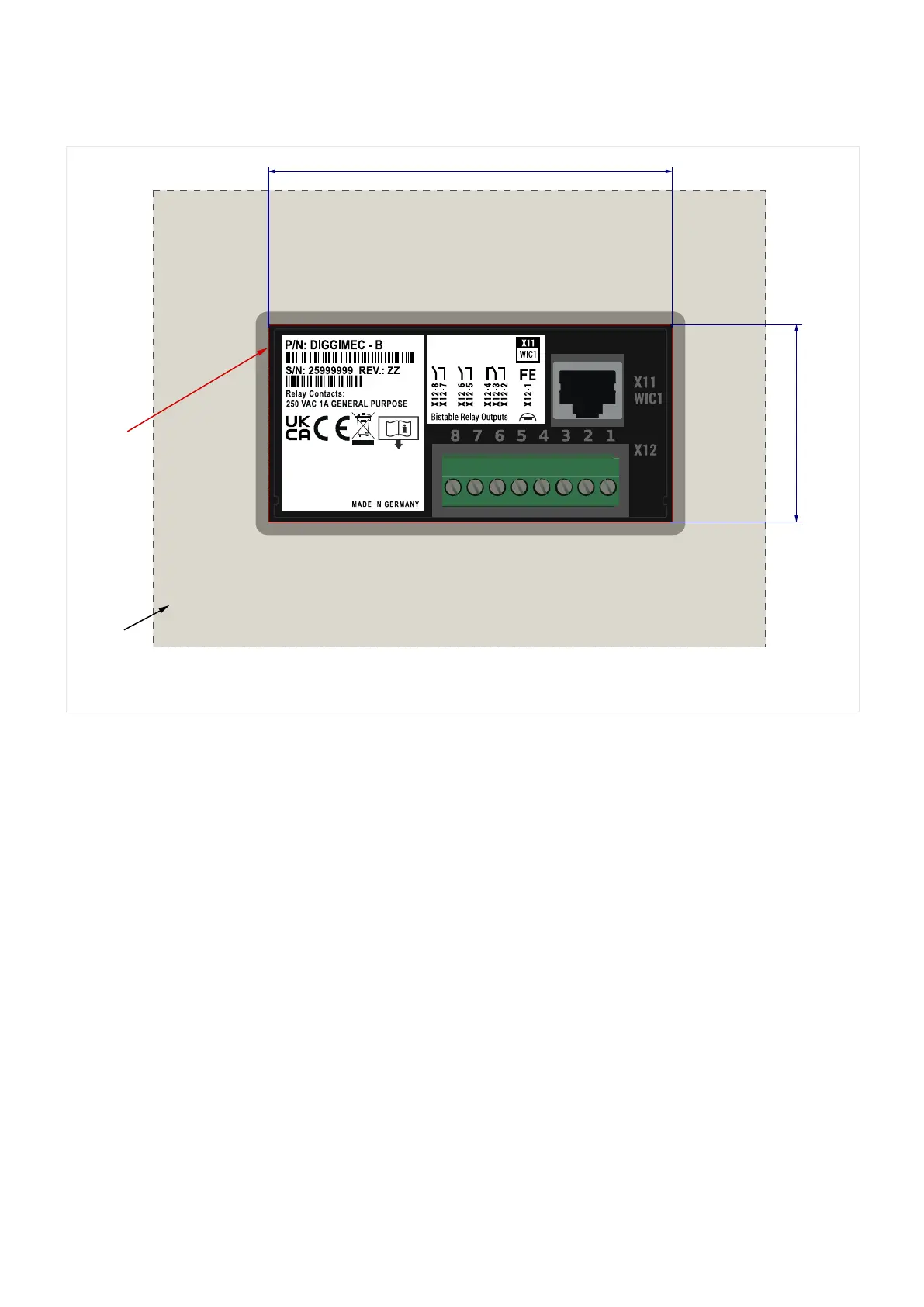

Installation Diagram – Cutout for Door Mounting of the DiggiMEC
WI_Z04
45
92
[3.62]
[1.77]
Door
Cut-out
Fig. 11:
Door Cut-out. All dimensions in mm, except dimensions in brackets [inch].
The DiggiMEC can be mounted into a standard door cutout, that is already available by
default with most cabinets.
The rear side (╚═▷ “3.9.2 DiggiMEC Connectors”) features an RJ45 plug: It may only be used
to connect the DiggiMEC with a WIC1.
61WIC1WIC1-1.0-EN-MAN
3 Hardware
3.2.2 DiggiMEC Dimension Drawings
