WIC1-CTx_Z02
60
⌀50
100
⌀7
17.2
6
126
115
130
23.4
24.8
100
66

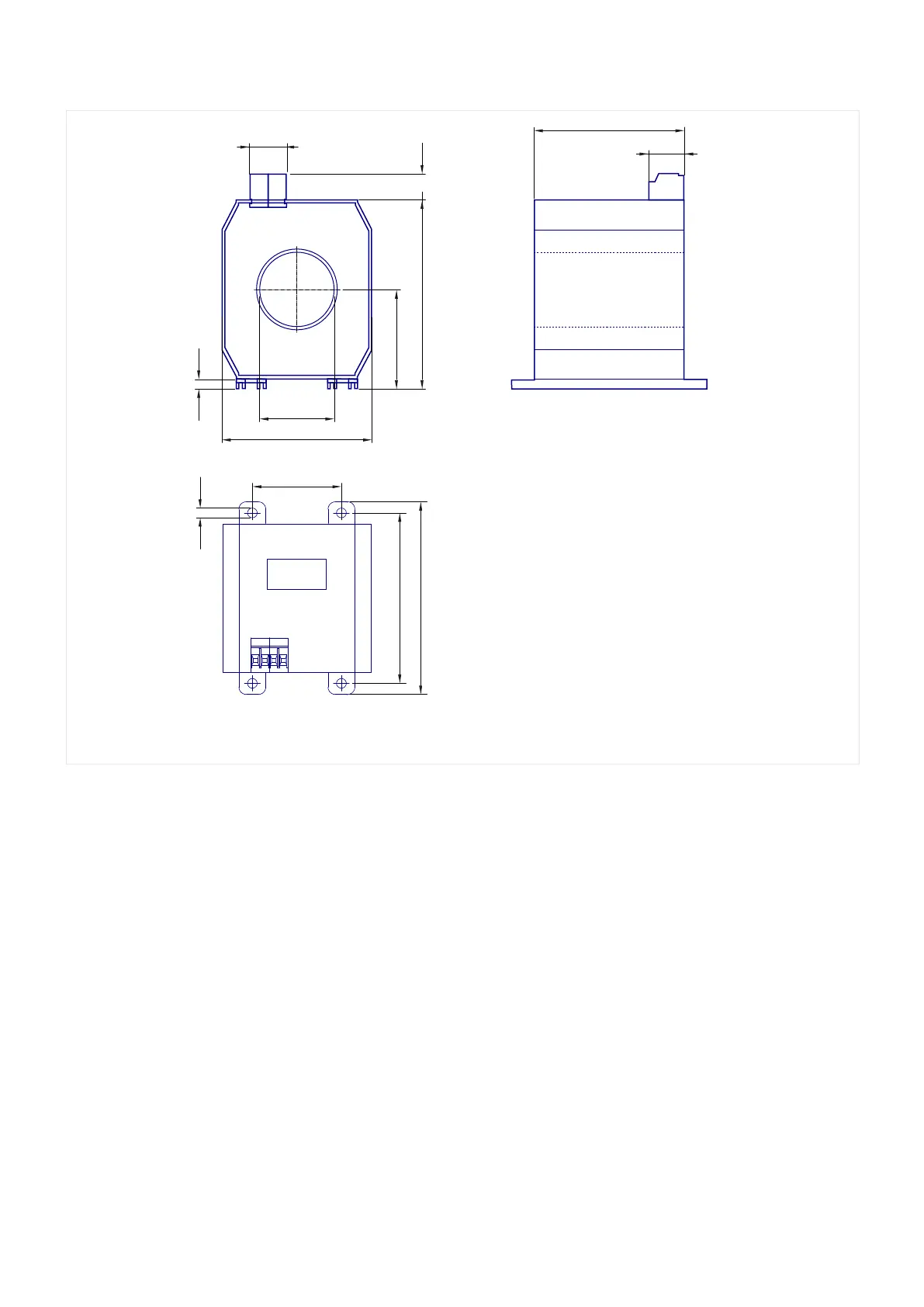

Fig. 13:
Types WIC1-CT2 – WIC1-CT5 (panel mounting).
63WIC1WIC1-1.0-EN-MAN
3 Hardware
3.2.3 Dimension Drawings of the WIC1-Compatible Current Transformers
