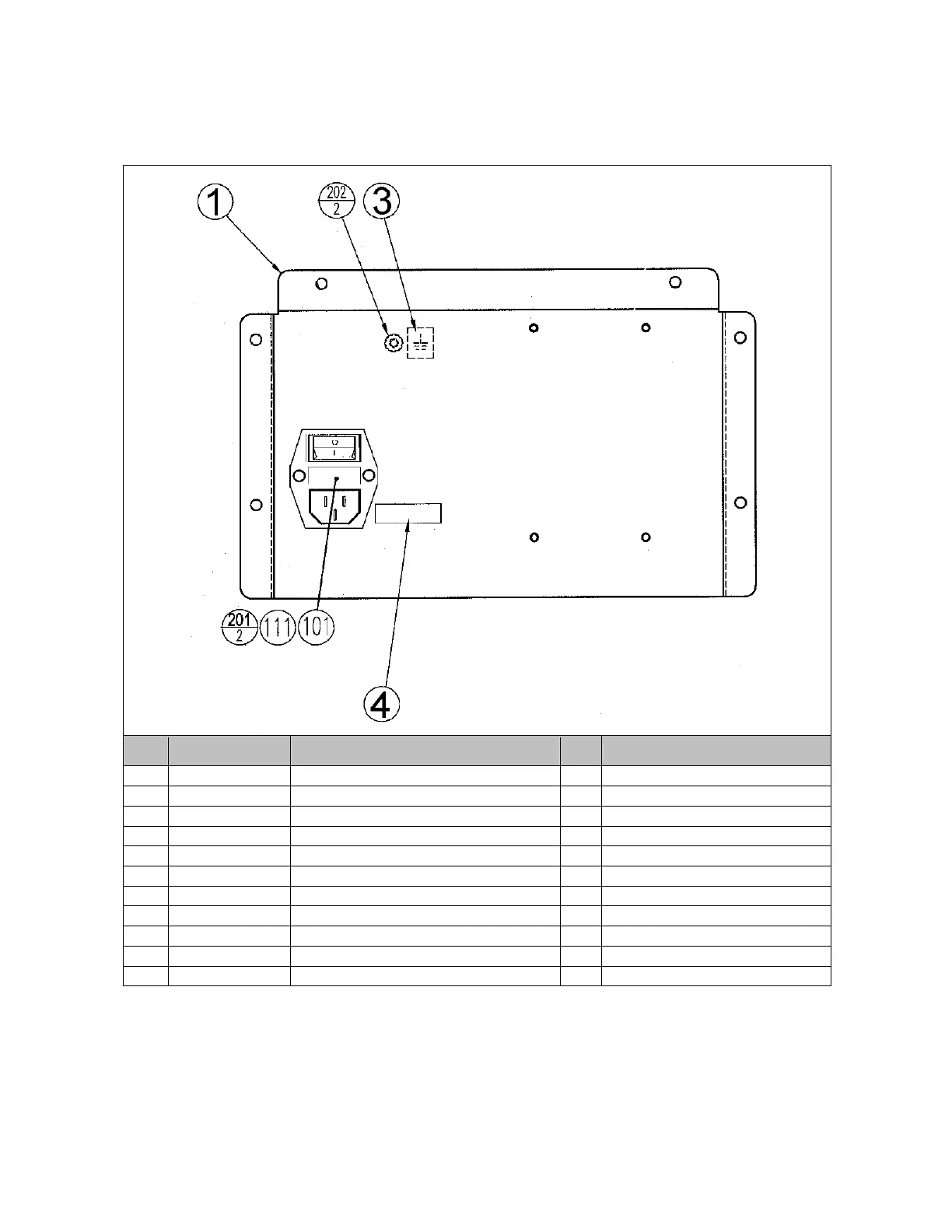

8.12. ORT-1710UK ASSY AC UNIT (BLACK PENT)
Item
Component Part
Description QTY
Component Reference
1 RTS-1711UK AC BRKT (BLACK) 1
3 LB1096 STICKER PROTECTIVE EARTH 1 NXT TO ERTH STUD ON INSIDE
4 421-6595-5000-T STICKER FUSE 5000mA TYPE T 1 NXT TO IEC INLET ON OUTSIDE
101 EP1381 FILTER IEC & SW 6A ROXBURGH 1
111 514-5078-5000 FUSE 5X20 CERAMIC SB 5000mA 1
202 050-F00400 M4 NUT FLG SER PAS 2 EARTH - 2
204 000-F00316 M3X16 MSCR CSK PAS 2 (101)-2
301 ORT-60004UK WIRE HARN AC OUT 1 240V CHANGE
303 600-9030-45K WIRE HARN EARTH 300mm M4/M5 K 1 AC BRKT TO XFMR
305 600-9025-44K WIRE HARN EARTH 250mm M4/M4 1 AC BRKT TO BASE
306 600-9015-4FK WIRE HARN EARTH 150MM 1
