5.2. Internal Switches And Coin Meters
•
Never touch places other than those specified. Touching places not specified
can cause electric shock and short circuits
•
Be careful not to damage wiring. Damaged wiring can cause electric shock and
short circuits.
• Adjust to the optimum sound volume considering the environmental
requirements of the installation location.
• If the COIN METER and the game board are electrically disconnected, game
play is not possible.

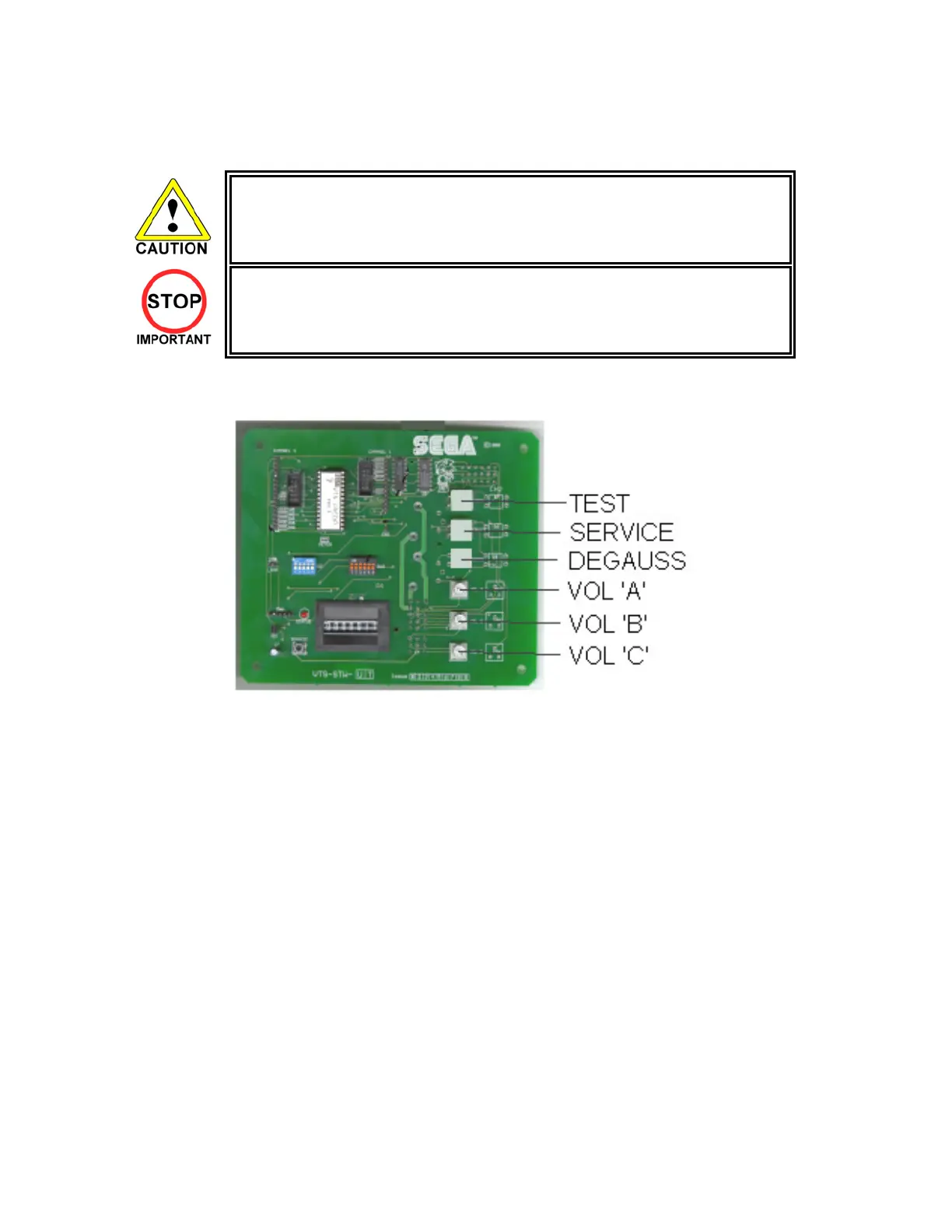

Open the Coin Chute door to access the VTS PCB. The function of each switch is as follows.
TEST BUTTON
(TEST SW)
Used to enter TEST mode. Also has function during TEST mode. Refer to the later
Section detailing TEST mode.
SERVICE BUTTON
(SERVICE SW)
Gives credits without registering on the coin counter. Also used during TEST
mode.
DEMAG Eliminates colour unevenness from the monitor screen.
VOLUME CONTROL Adjusts the volume of the speakers.
