104
8.14.
CTA
-

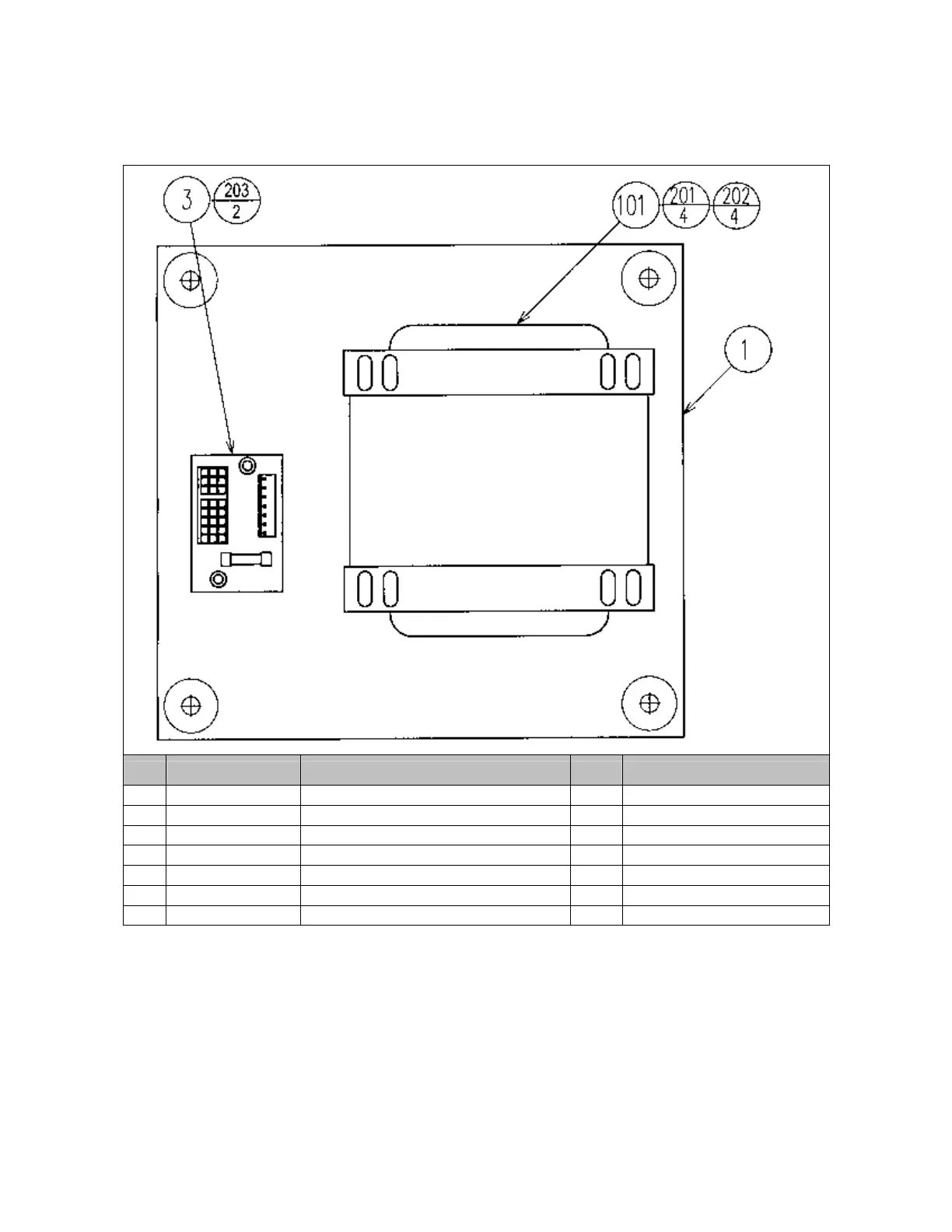

4200UK ASSY XFMR
Item
Component Part
Description
QTY
Component Reference
1
CTA
-
4201UK
WOODEN BASE XFMR CTA
1
3
838
-
11856C
E
-
02
CONN BD W/FUSE 6.3A CE
1
101
560
-
5422
-
01UK
XFMR CTA
1
201
000
-
P00416
-
W
M4X16 MSCR POSI PAN W/FS
4
(101)
-
4
202
FX0301
M4 WSHR 16OD FLT BZP
4
(101)
-
4
203
FX0151
N4X1" S/TAP POSI PAN BZP
2
(3)
-
2
301
CTA
-
60013UK
WIRE HARN CONN BD OUT
1
104
106
Table of Contents
Default Chapter
2
Table of Contents
2
1 Before Using this Product
5
Inspections Immediately after Transporting the Product to the Location
6
2 Introduction to this Service Manual
8
3 Installation and Maintenance Instructions
9
Handling and Installation Precautions
9
Coin Handling
9
Name of Parts
10
Accessories
11
Shipping the Game Board
12
Shipping the Media Board
14
Assembly Instructions
15
Installing the Billboard
16
Installing the Floor and Leg Adjustor Adjustment
17
Coin Handling Installation
19
Wiring Connections
20
Connection to the Power Supply
21
Assembly Check
22
CRT Test
22
Memory Test
23
Input Test
24
Output Test
25
Sound Test
25
Moving the Machine
26
Control Panel (Handle Mecha.) - 'HAPP' Type
27
Replacing Volume
27
Greasing - SEGA and HAPP Types
29
Replacement of Spring
29
Shift Lever
30
Removing Shift Lever
30
Switch Replacement
30
Greasing
30
Accelerator and Brake
31
Removing the Accelerator and Brake
31
Adjusting or Replacing the Volume
33
Greasing
34
Replacement of Fluorescent Lamps
35
Front Fluorescent
35
Game Board
37
Taking out the Game Board
37
Removing the GD-ROM Drive
39
Composition of the Game Board
40
Replacing the Main Board Battery
41
Replacing the Media Board Battery Pack
42
Troubleshooting
45
Fuses
46
Periodic Check and Inspection
47
Cleaning the Cabinet Surfaces
47
4 Contents of Game
48
Basic Controls
49
Game Outline
49
Game Flow
50
Versus Mode Entry
50
Car Selection
50
Transmission Selection
52
Mode Selection
52
Outrun Mode
52
Heart Attack Mode
53
Time Attack Mode
55
Versus Play
57
Versus Mode Game Play
57
Special Versus Mode Commands
57
No Handicap Mode
57
Player Only Mode
57
Gameplay Techniques and Secret Commands
58
How to Drift
58
MID-Game Quit Command
58
Character Introductions
59
5 Maintenance Instructions
60
Explanation of Test Data and Display
60
Internal Switches and Coin Meters
61
System Test Mode
62
RAM Test
63
JVS Test
63
Sound Test
64
Test
64
System Assignments
65
Coin Assignments
65
Coin/Credit Setting (Coin Chute Common Type)
66
Coin/Credit Setting (Coin Chute Individual Type)
67
Manual Setting
68
Sequence Setting
69
Bookkeeping
70
Backup Data Clear
70
ROM BD Test
71
Clock Setting
71
Game Test Mode
72
Input Test
73
Output Test
74
Drive Board Test
75
Game Assignments
76
Bookkeeping
78
Backup Data Clear
80
Network Play
81
6 Coin Mech Installation and Credit Board Set up
82
Introduction
82
Price of Play Settings UK
84
Price of Play Settings Euro
85
Price of Play Settings Austria-Czech-Denmark-Norway-Israel-France2
86
7 Design Related Parts
87
8 Parts List
88
Assembly Structure
88
Ort-00002Juk Top Assy Outrun 2 U/R
89
Ort-1000Juk Assy Ur Cabi Pent
90
Ptr-1110Uk Assy Framework Black New
94
Ptr-1950Uk Assy Sfmd Black (Flat Door)
95
Noa-1200Uk Assy Crt Cover Uk
96
Ort-1400Juk Assy Front Panel Pent
97
Cta-1150Uk Assy CC Box Ww
98
Ort-4000Uk Assy Elec
99
Ptr-1750Uk Assy Service Door (Black)
100
Ort-4100Uk Assy Main Bd
101
Ort-1710Uk Assy Ac Unit (Black Pent)
102
Ort-20002Uk Assy Control Panel
103
Cta-4200Uk Assy Xfmr
105
Ort-6001Uk Assy Wire L
106
Nob-6001Uk Assy Wire L
106
Cta-6002Uk Assy Wire R
106
Otr-Inst-Jur Assy Inst Kit Ort Pent Ur
107
Ort-1250Uk Assy Floor Short
108
9 Appendix A - Electrical Schematic
109
