5.4.3. Drive Board Test

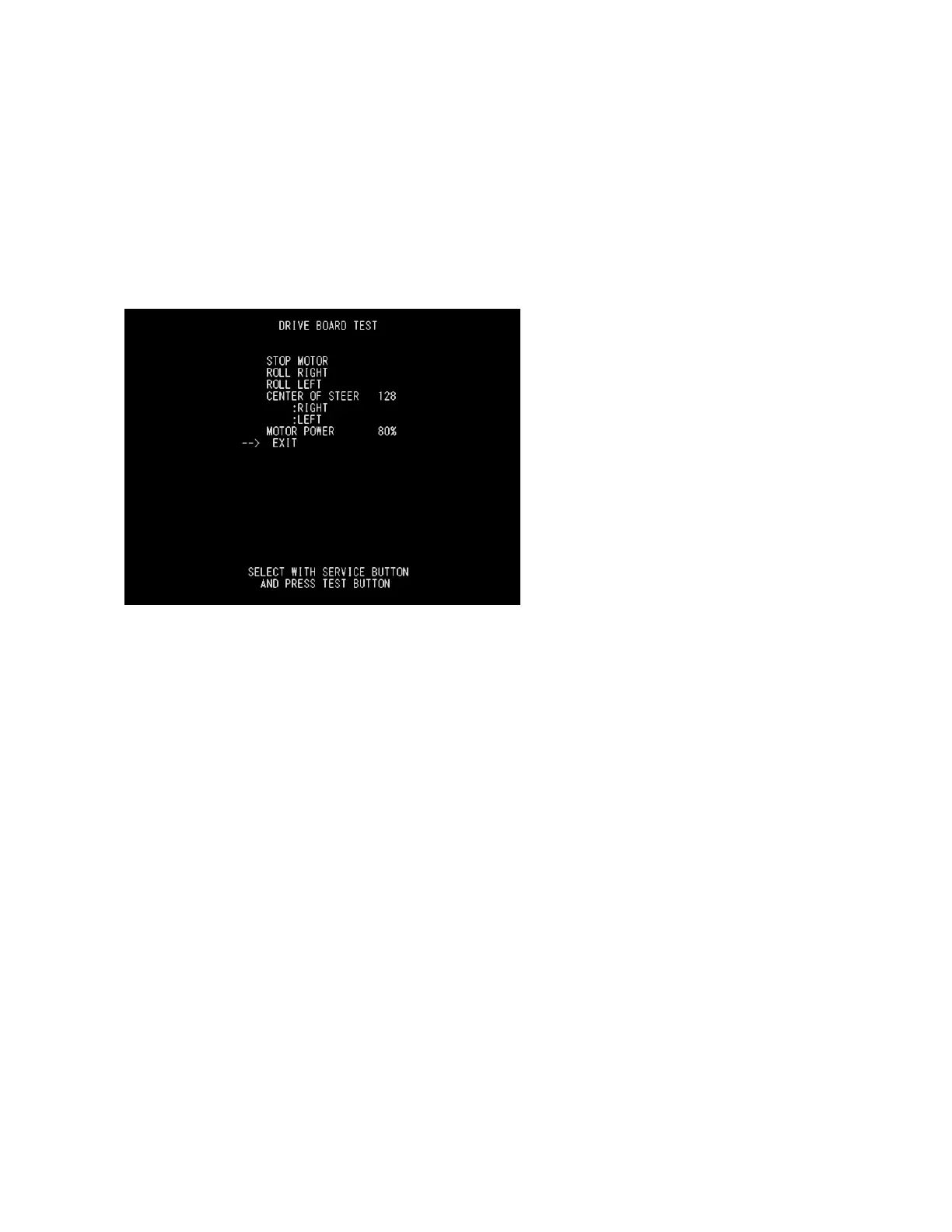

Select DRIVE BOARD TEST to display the following screen and check the status of steering motor.
Use the SERVICE Button to select the desired test item. Press the TEST Button to activate the selected
item.
NOTE: This test will not be displayed in Upright cabinet types.
• STOP MOTOR: Halts motor activity.
• ROLL RIGHT: Rotates steering wheel completely to the right.
• ROLL LEFT: Rotates steering wheel completely to the left.
• CENTER OF STEER: Steering wheel motor’s center of control is displayed.
RIGHT: Moves center of control position to the right.
LEFT: Moves center of control position to the left.
• MOTOR POWER: Sets the steering resistance.
There are four levels to choose from, 100% (strong resistance), 90%,
80%, and 60% (weak resistance). (80% is the default setting)
After changing the settings, select EXIT and press the TEST Button to return to the Game Test Menu
screen.
