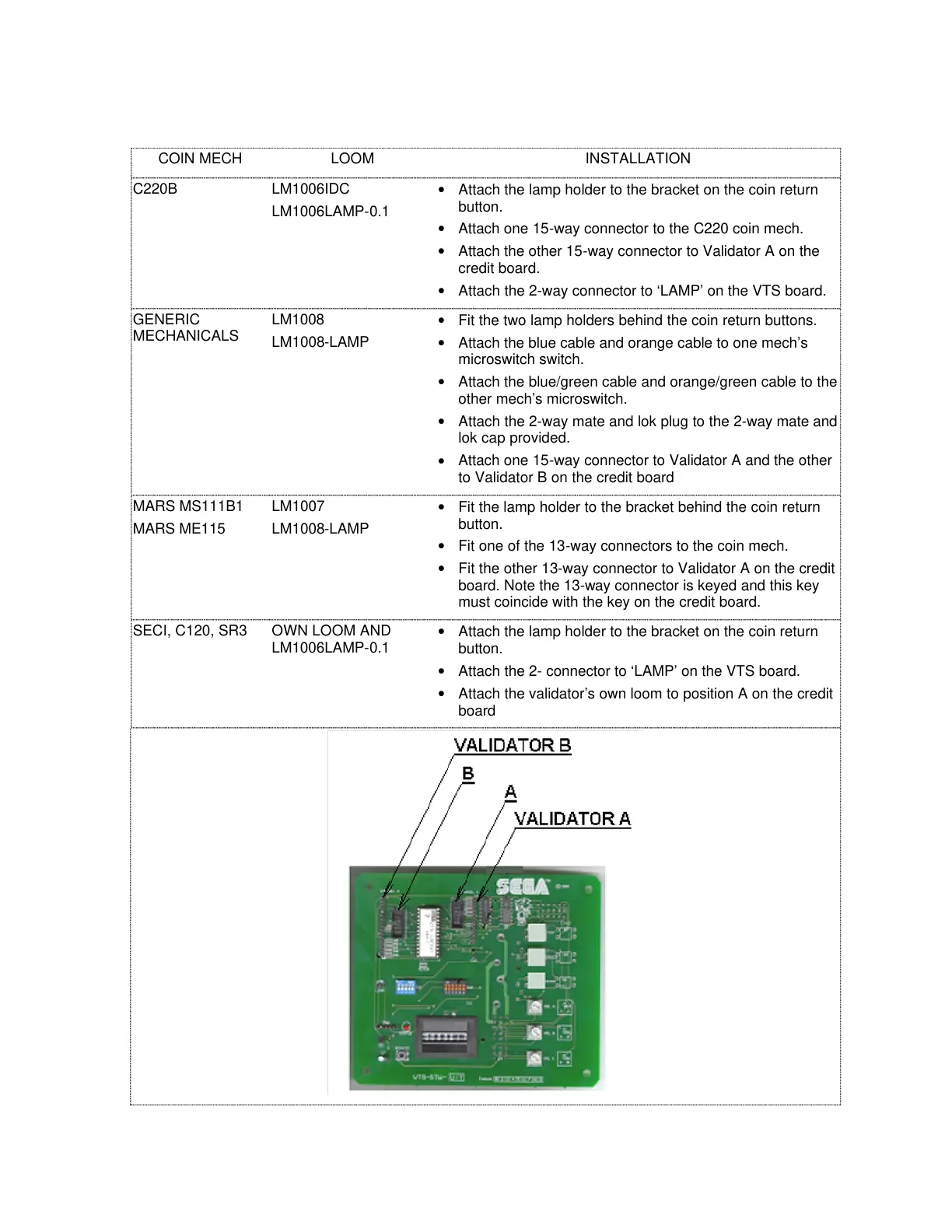

3.7.3.1. Wiring Connections
COIN MECH LOOM INSTALLATION
C220B LM1006IDC
LM1006LAMP-0.1
• Attach the lamp holder to the bracket on the coin return
button.
• Attach one 15-way connector to the C220 coin mech.
• Attach the other 15-way connector to Validator A on the
credit board.
•
Attach the 2-way connector to ‘LAMP’ on the VTS board.
GENERIC
MECHANICALS
LM1008
LM1008-LAMP
•
Fit the two lamp holders behind the coin return buttons.
• Attach the blue cable and orange cable to one mech’s
microswitch switch.
•
Attach the blue/green cable and orange/green cable to the
other mech’s microswitch.
• Attach the 2-way mate and lok plug to the 2-
way mate and
lok cap provided.
•
Attach one 15-way connector to Validator A and the other
to Validator B on the credit board
MARS MS111B1
MARS ME115
LM1007
LM1008-LAMP
• Fit the lamp holder to the bracket behind the coin return
button.
• Fit one of the 13-way connectors to the coin mech.
• Fit the other 13-way connector to Validator A on the credit
board. Note the 13-way connector is keyed and this key
must coincide with the key on the credit board.
SECI, C120, SR3 OWN LOOM AND
LM1006LAMP-0.1
• Attach the lamp holder to the bracket on the coin return
button.
•
Attach the 2- connector to ‘LAMP’ on the VTS board.
• Attach the validator’s own loom to position A on the credit
board
VTS credit board assembly
