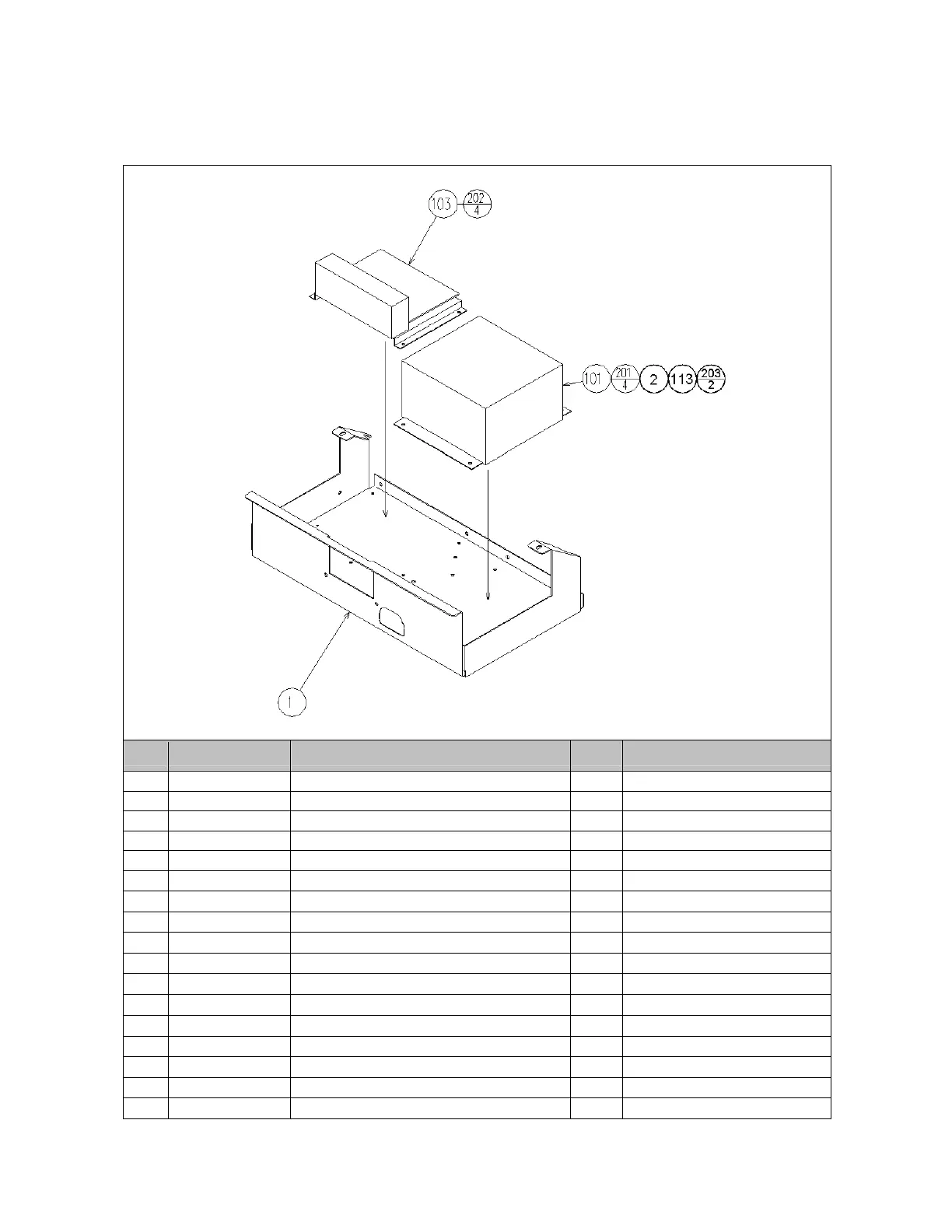

8.9. ORT-4000UK ASSY ELEC
Item
Component Part
Description QTY Component Reference
1 CTH-4001 ELEC BASE SHORT 1
2 NOM-4002 BRKT FOR PWR PROTECT UNIT 1
101 400-5443 SW REGU FOR CHIHIRO 1
103 838-13616 AUDIO POWER AMP 2CH 1
107 280-A02048-PM ROUTER TWIST D20 SO4.8 PAN LG 4
108 601-6231-B095 EDGE TRIM NEW TYPE 0.91t 9,5 (1) BACK EDGE IN MIDDLE
110 280-A01248-PM ROUTER TWIST D12 SO4.8 PAN MED 2
111 280-A02000-A ROUTER TWIST D20 ADH 1
113 610-0674 POWER PROTECT UNIT FOR CHIHIRO
1
201 010-P00408 M4X8 S-TITE PAN PAS 4 (101)-4
202 010-P00308 M3X8 S-TITE PAN PAS 4 (103)-4
203 000-P00408-W M4X8 MSCR PAN W/FS PAS 2 (113)-2
303 NOB-60013UK WIRE HARN SW REGU INT 1
304 NOA-60014 WIRE HARN I/O BD PWR 1
305 NOB-60202UK WIRE HARN AUDIO POWER-IN 1
306 600-7159-039 WIRE HARN JVS PWR 039CM 1
307 CTH-60101UK WH POWER PROTECT UNIT 1
