3.13. Game Board
•
When performing work, be sure to turn power off. Working with power on can
cause an electric shock or short circuit.
•
Be careful not to damage wiring. Damaged wiring can cause an electric shock or
short circuit.
•
The voltage/amperage ratings for the Game Board are 3.3V 12A, 5.0V 10A and
12V 2A. To avoid risk of fire, never use any board with supply requirements
exceeding the above.
• When replacing the Game Board with one not of JAMMA standard, be sure to
use only the harness supplied by the manufacturer of the Game Board. Using
other harnesses constitutes a fire risk.
• Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

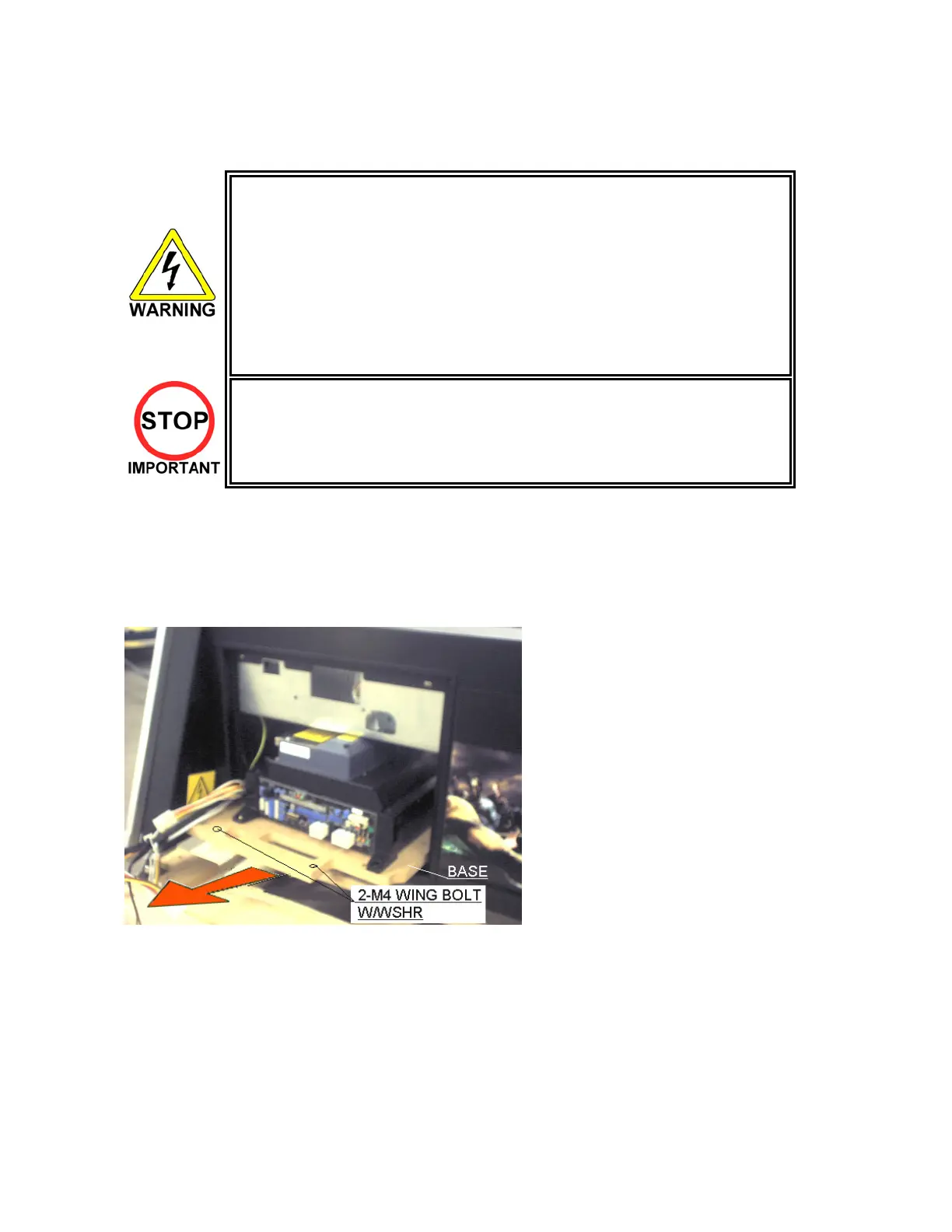

3.13.1. Taking Out The Game Board
To take out the Game Board (Chihiro), remove together with the wooden base on which the Game Board is
mounted. If the Game Board is faulty, return to SEGA within the original packaging provided. There are
no user-serviceable parts inside.
1. Turn off the power.
2. Unlock and remove the Service Door.
3. Disconnect all harnesses linking the
Game Board assembly to the cabinet.
4. Remove the two M4 wing bolts and
carefully withdraw the assembly
upwards and out through the service
opening (see following page).
To Next Page
