6. COIN MECH INSTALLATION AND CREDIT BOARD SET UP
6.1. Introduction
A VTS board controls game credits between the Coin Mechanism and the game board for this machine.
This electronic circuit allows the price of play to be set for a range of different countries. These functions
are set on Dual In Line (DIL) PCB mounted switches.
SW1 is used to set the currency (or coin ratio) and SW3 the price of play. Refer to the Tables on the
following pages for the correct settings for your environment.

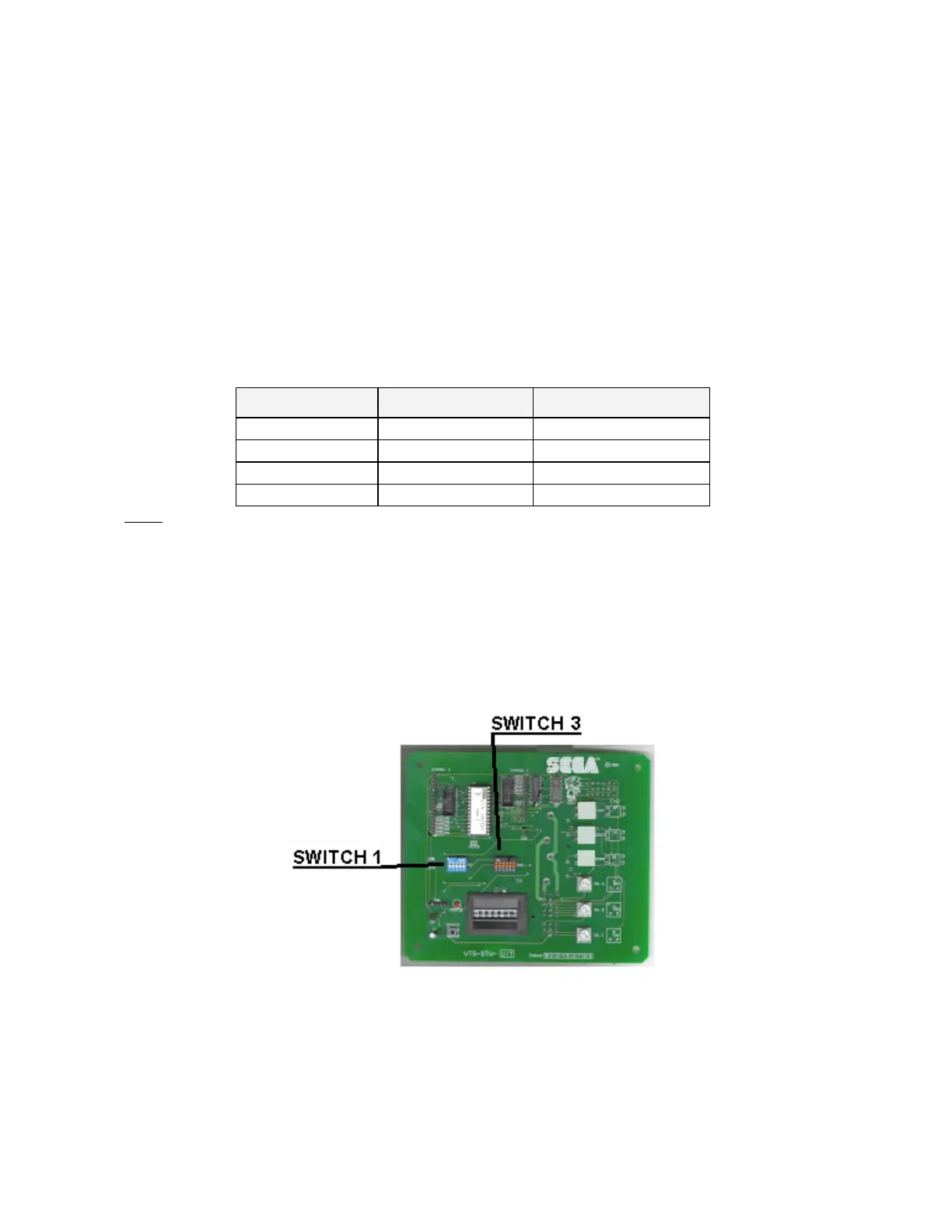

The
VTS
board pictured below is mounted in the Coin Chute Tower.
The
VTS
board is connected to the coin validator and lamps via a dedicated wiring harness depending
upon the coin validator used:
Wiring Harness Validator
LM1006 Coin Controls (15 way connector)
LM1007 Mars (13 way connector)
LM1008 Mechanical See note 2
N/A NRI See note 1
Notes
1. If NRI mechanisms are to be used, these should be ordered with the highest denomination coin on coin
path #1 and the lowest denomination on coin path #4. The
VTS
board should be then be set up for
either the UK or Switzerland settings. A minimum connecting lead length of 600mm is required.
2. Mechanical coin mechanisms may be connected in parallel allowing two identical mechanisms to be
fitted.
The VTS Board
