1. Loosen the two screws and adjust
the gear mesh by moving the VR
Bracket.
2. Adjust to an appropriate setting by
securing the steering wheel in the
straight ahead position.
3. After adjustment, check the volume
setting as described in Section 5.4. If
necessary, repeat steps 3 & 4 until
the volume value is within allowable
limits (±3H)

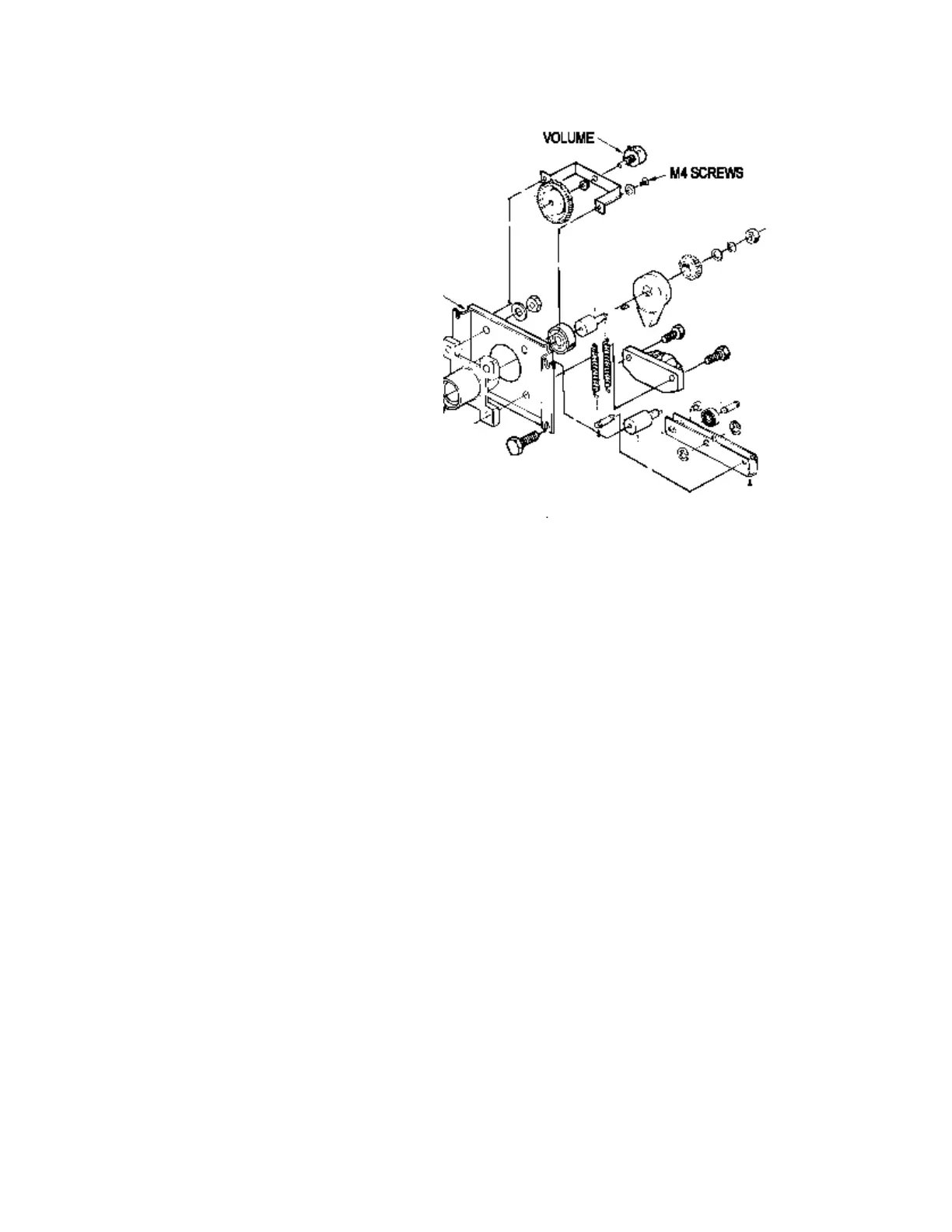

HOW TO REPLACE
1. Disconnect the Volume Connector.
2. Take out the two screws and remove the Volume together with the VR Bracket.
3. After replacing the Volume, engage the gears at the angle shown and fix the VR Bracket.
Close the Control Panel and replace the three tamperproof screws before turning power ON and setting the
Volume value in the TEST MODE.
To Next Page
