102
www.seuservice.com

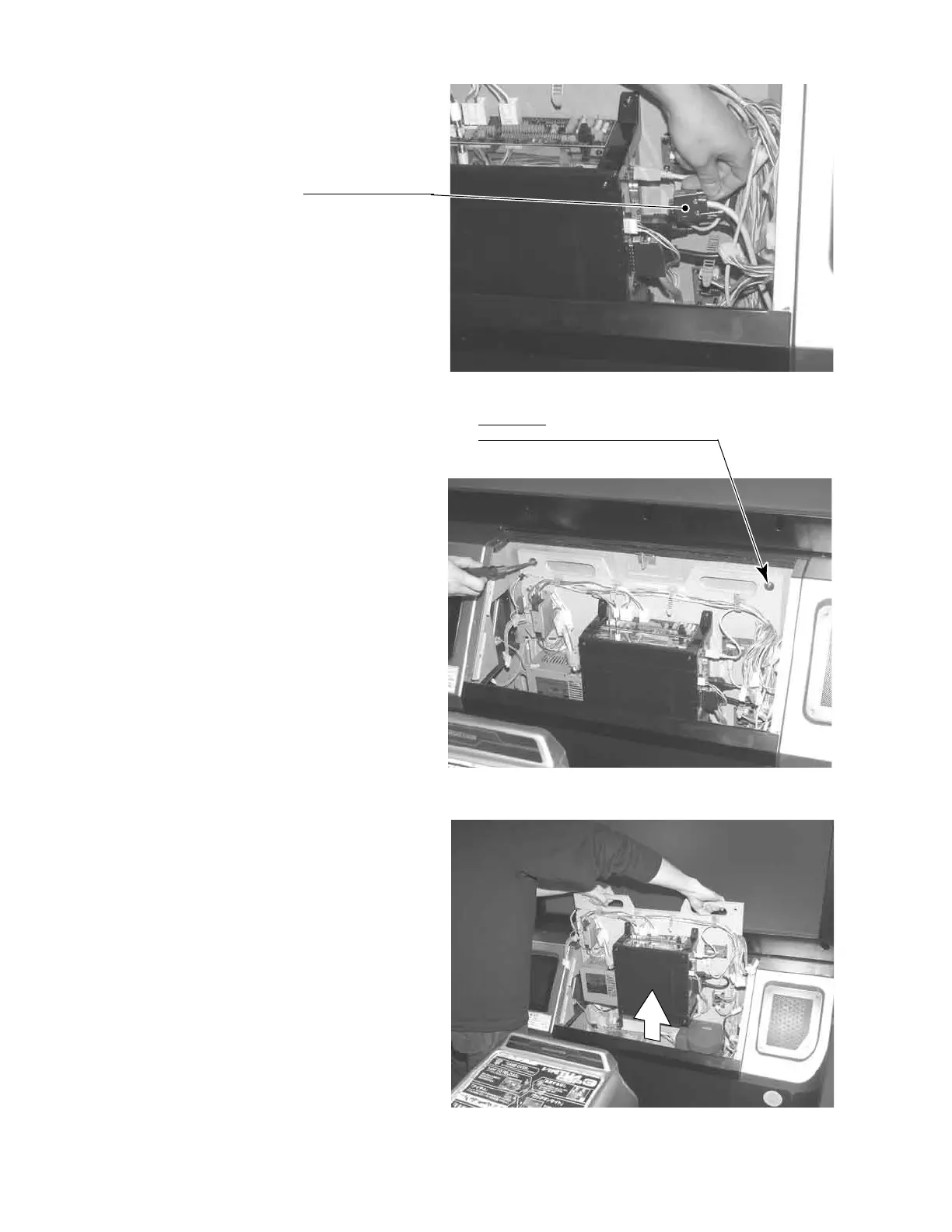

Remove the 2 screws that fasten
the ASSY MAIN BD wooden Base
.
Extract the ASSY MAIN BD from
the Cabinet with the Chihiro Board
attached.
At this time, be careful not to
damage the wiring.
Loosen the screws on either side of
the D-SUB connector connected to
the Chihiro Board and disconnect.
D-SUB CONNECTOR
PHOTO 16. 1 e
PHOTO 16. 1 f
PHOTO 16. 1 g
SCREW (2)
M5×35, w/spring washer, at washer used.
To Next Page
