Unplug the AVIP Cable connected
to the Chihiro Board.
Because the AVIP Cable is packed
with it when the Chihiro Board
is transported, unfasten the cord
clamp that fastens the cable and
remove it.
Work with the ASSY MAIN BD
set on a level surface.
Unplug all connectors connected to
the Chihiro Board. Unplug the GD
Cable connector on the side of the
Media Board on the upper part of
the Chihiro Board.

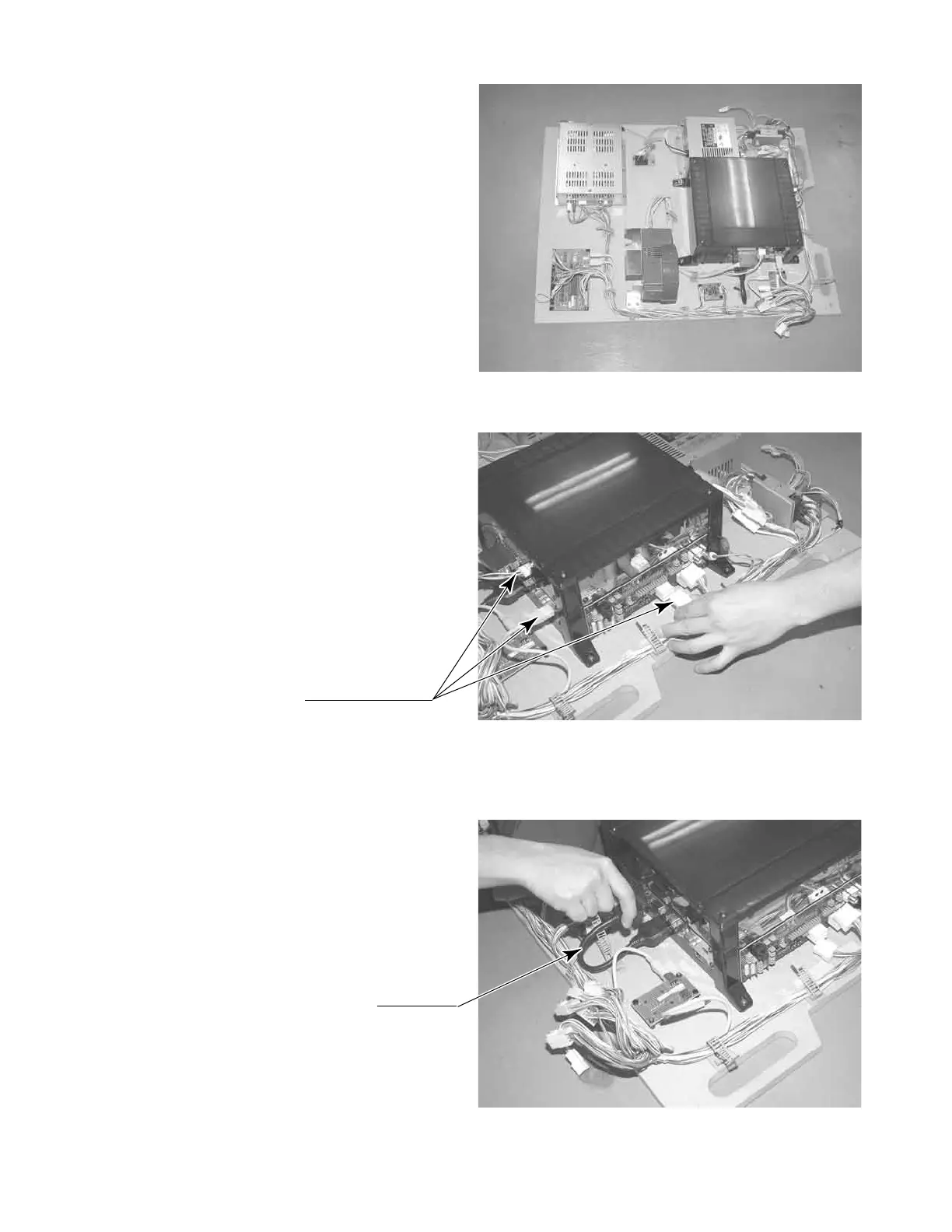

PHOTO 16. 1 h
PHOTO 16. 1 i
Unplug all connectors.
PHOTO 16. 1 j
AVIP CABLE
