20
www.seuservice.com

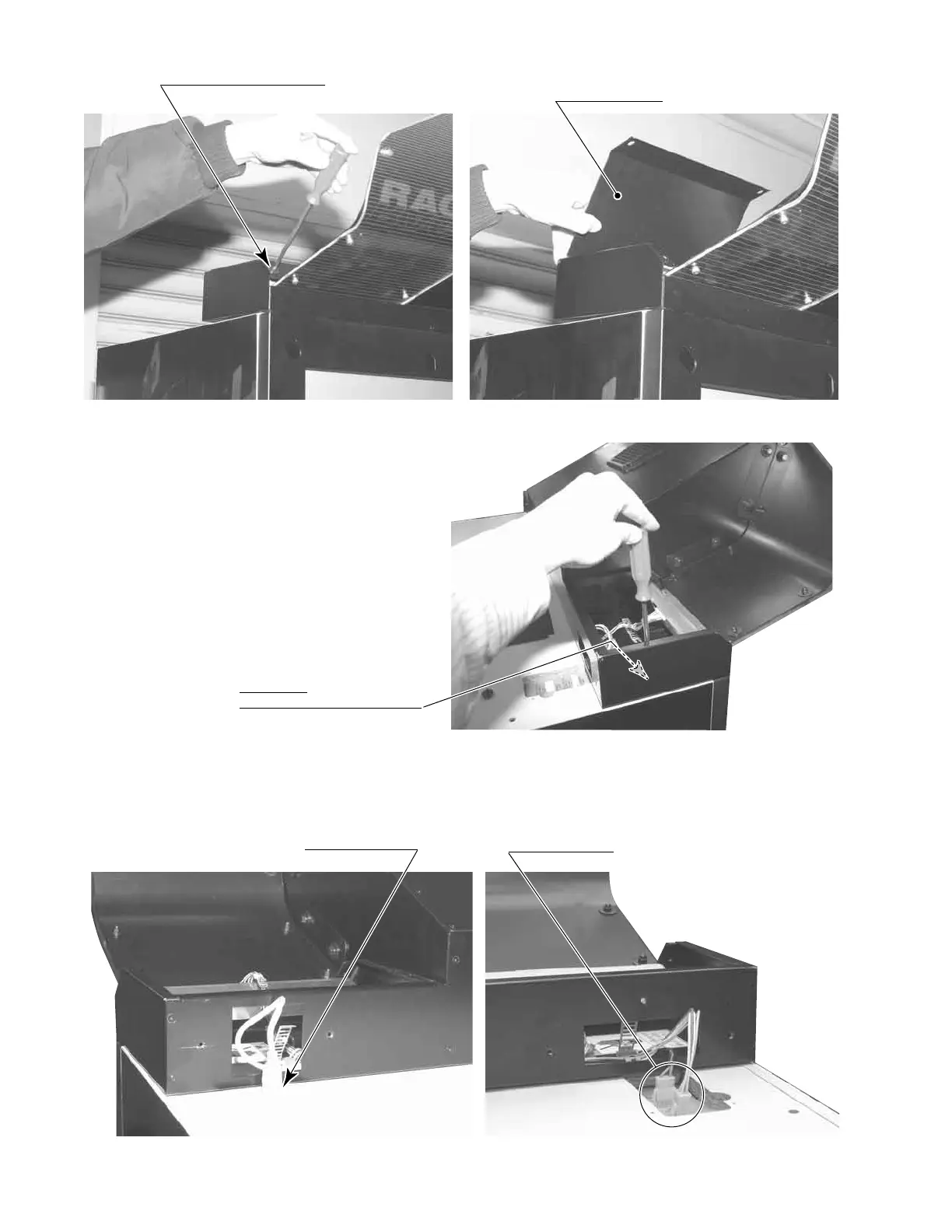

Having removed the Billboard
Lids from both sides, attach the
base plate with 2 screws.
Pull the wires through the rectangular holes on either side of the Billboard and connect them to
the connectors on the roof of the PTV. There are 2 connectors on the left side.
PHOTO 6. 2 a
TRUSS SCREW (2ea), black
M4×8, at washer used
PHOTO 6. 2 b
BILLBOARD LID
PHOTO 6. 2 c
PHOTO 6. 2 d
JVS CONNECTOR
PHOTO 6. 2 e
CONNECTOR (2)
SCREW (2)
M5×16, w/at & spring washers
To Next Page
