Re-attach the Billboard Lids on either side of the Billboard as they were before.
Attach Wire Covers L (left) and R
(right) to protect the connectors on
the right and left sides of the roof
of the PTV. The larger wire cover
is Wire Cover L and should be at-
tached to the 2 connectors.
Attach Wire Cover L with 4 screws. The screw for the PTV roof is different from the 3 truss
screws for the Billboard.
Attach Wire Cover R with 2 truss
screws.

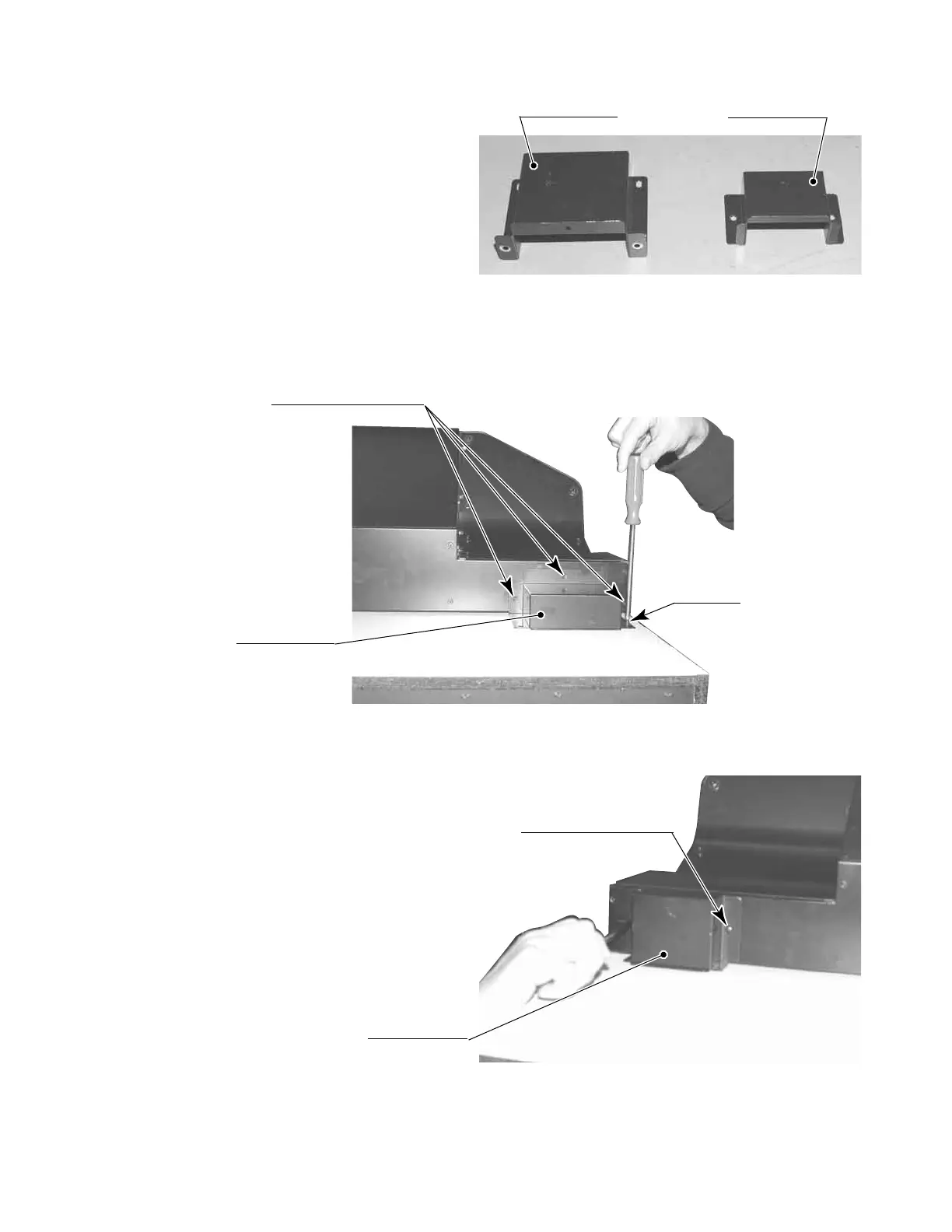

PHOTO 6. 2 f
WIRE COVER R
WIRE COVER L
PHOTO 6. 2 g
TRUSS SCREW (3), black
M4×8
WIRE COVER L
PHOTO 6. 2 h
WIRE COVER R
SCREW (1)
M5×16,
w/at & spring washers
TRUSS SCREW (2), black
M4×8
