29
www.seuservice.com

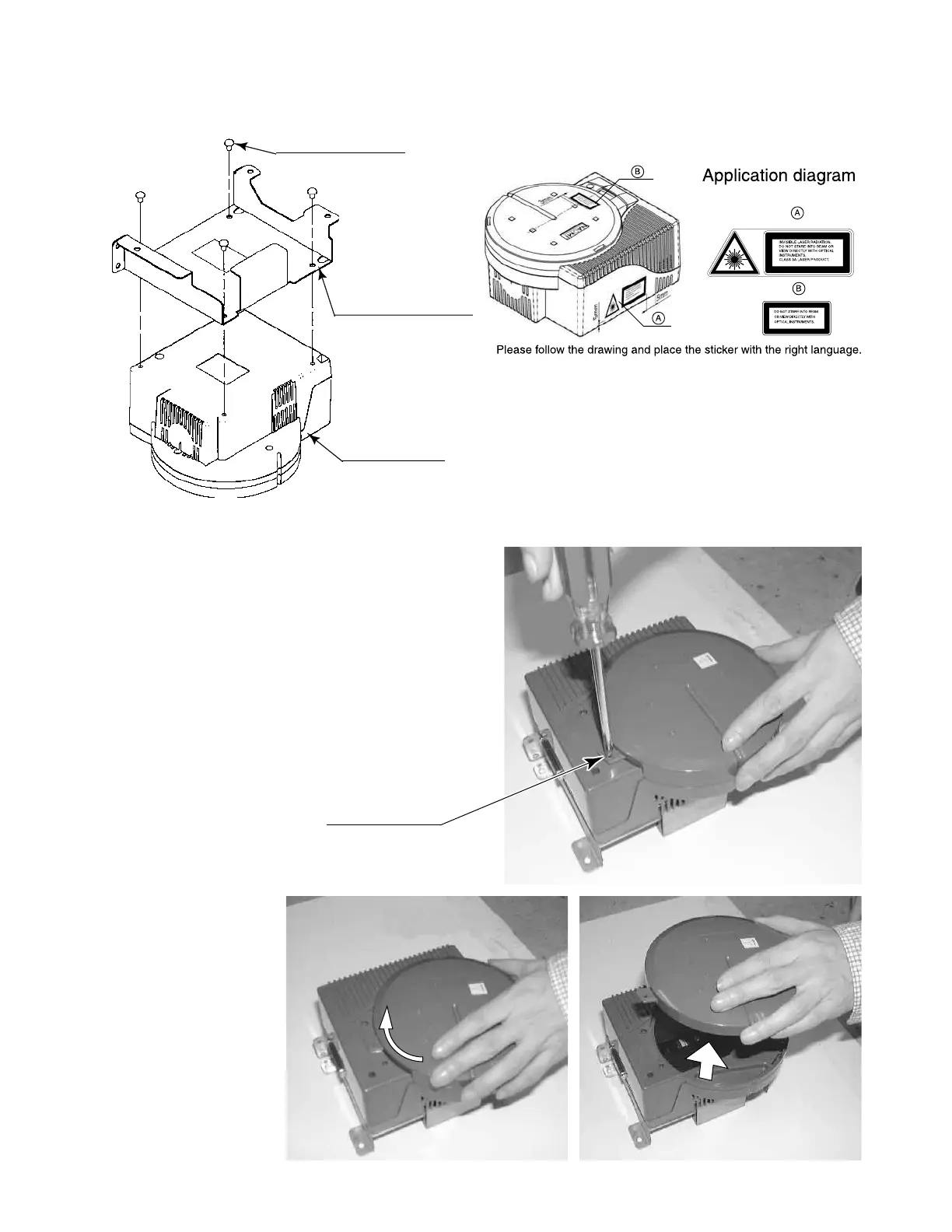

Remove the 1 truss head screw that
xes the GD-ROM drive lid (DISC
LID). And turn clockwise the lid to
remove.
TRUSS SCREW (1)
M3×8
PHOTO 6. 6 b
Use the 4 tapping screws to x the GD-ROM drive bracket onto the GD-ROM drive. Be careful
about a xing direction.
TAPPING SCREW (4)
4×8
FIG. 6. 6 a
GD DRIVE BRACKET
GD-ROM DRIVE
FIG. 6. 6 b
CAUTION for U. S. A., Europe, and Australia:
Attach the 2 caution stickers for a laser ray onto
the GD-ROM drive.
To Next Page
