SEL-351S AC/DC Connection Diagrams for Various Applications
Voltage Channel VS does not need to be connected. Here, it is shown connected for use in voltage and synchronism check
elements and voltage metering. See Synchronism Check VS Connection (Global Setting VSCONN = VS) and Broken-Delta
VS Connection (Global Setting VSCONN = 3V0) on page 2.20.
Current Channel IN does not need to be connected. Channel IN provides current
I
N
for the neutral ground overcurrent
elements. Separate from Channel IN, the residual ground overcurrent elements operate from the internally derived
residual current I
G
(I
G
= 3I
0
= I
A
+ I
B
+ I
C
). But in this residual connection example, the neutral ground and residual ground
overcurrent elements operate the same because I
N
= I
G
.

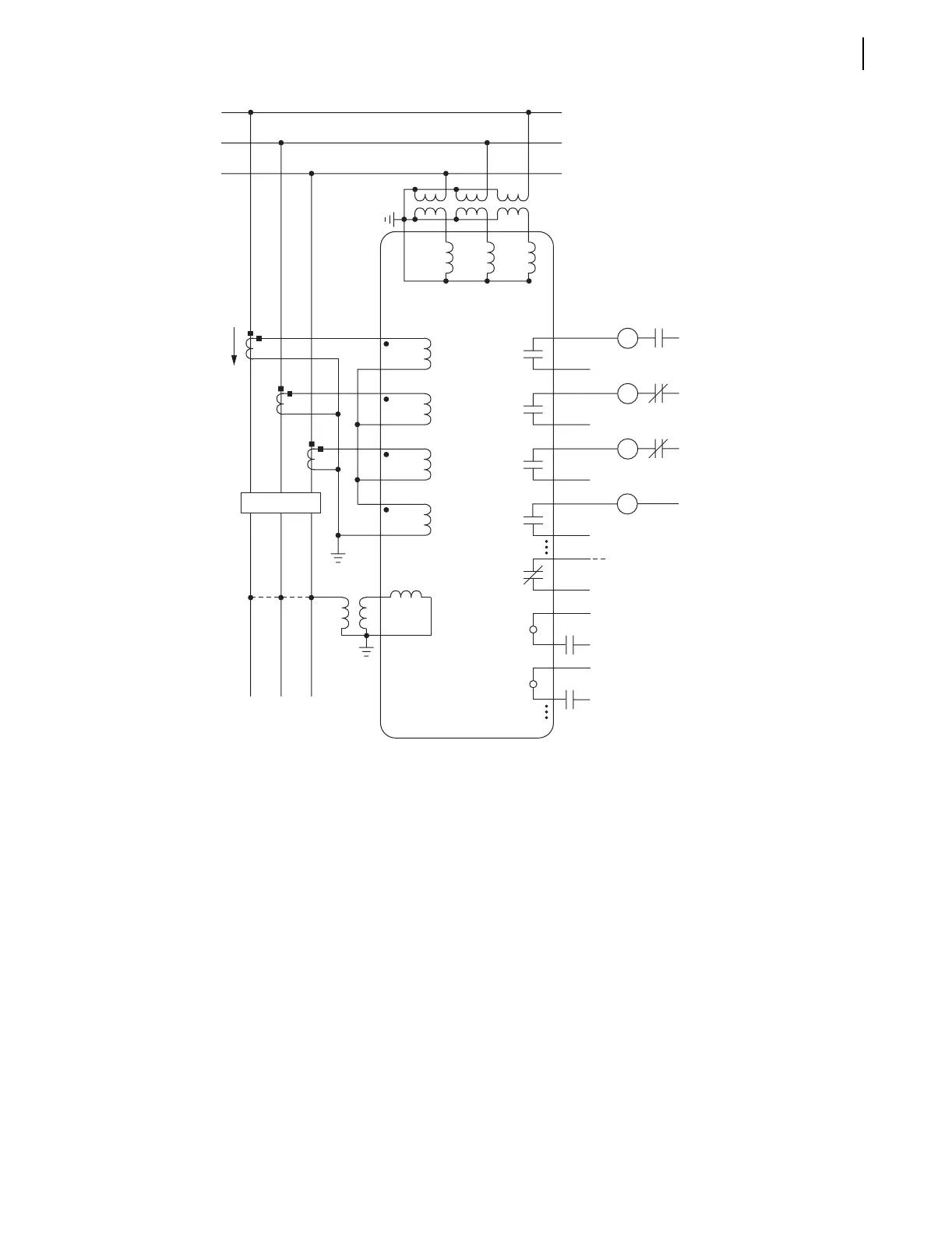

Figure 2.19 SEL-351S Provides Directional Overcurrent Protection and Reclosing for a Transmission Line
(Wye-Connected PTs)
