Installation
SEL-351S AC/DC Connection Diagrams for Various Applications
Voltage Channel VS does not need to be connected. Here, it is shown connected for use in voltage and synchronism check
elements and voltage metering. See Synchronism Check VS Connection (Global Setting VSCONN = VS) and Broken-Delta
VS Connection (Global Setting VSCONN = 3V0) on page 2.20.
In this example, current Channel IN provides current polarization for a directional element used to control ground
overcurrent elements. Separate from Channel IN, the residual ground overcurrent elements operate from the internally
derived residual current I
G
(I
G
= 3I
0
= I
A
+ I
B
+ I
C
).

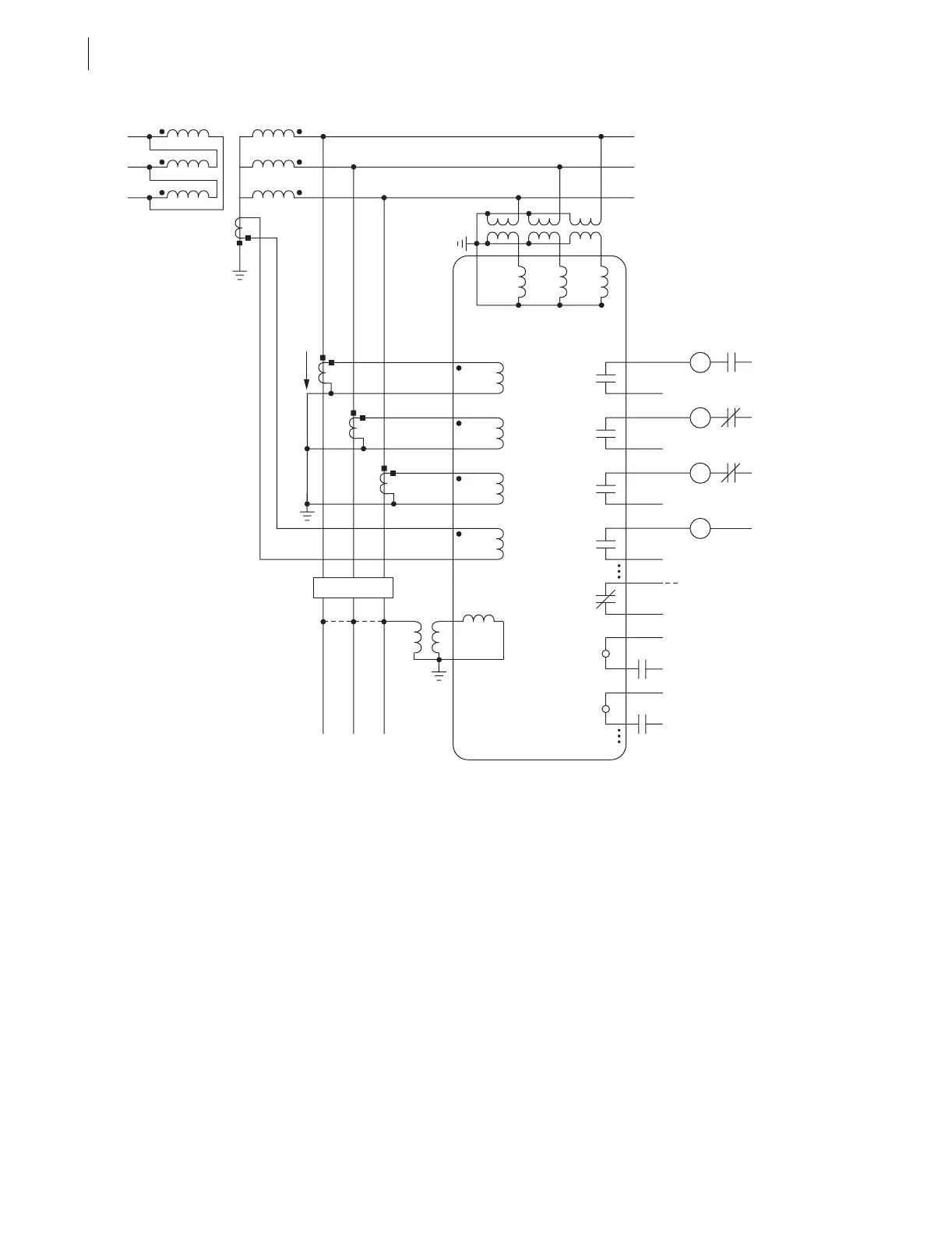

Figure 2.20 SEL-351S Provides Directional Overcurrent Protection and Reclosing for a Transmission Line
(Current-Polarization Source Connected to Channel IN) (Wye-Connected PTs)
