SEL-351S AC/DC Connection Diagrams for Various Applications
The voltage inputs do not need to be connected. Voltage is needed for voltage elements, synchronism check elements,
frequency elements, voltage-polarized directional elements, fault location, metering (i.e., voltage, MW, MVAR), and
frequency tracking.
Although automatic reclosing is probably not needed in this example, output contact OUT102 can close the circuit breaker
via initiation from various means (serial port communications, optoisolated input assertion, etc.), with desired
supervision (e.g., hot bus check).
For sensitive earth fault (SEF) applications, the SEL-351S should be ordered with Channel IN rated at 0.2 A or 0.05 A
nominal. See current input specifications in the subsection Specifications: General on page 1.10. See neutral ground
overcurrent element pickup specifications in Section 3: Overcurrent, Voltage, Synchronism Check, Frequency, and Power
Elements. See also the note following Table 4.3.

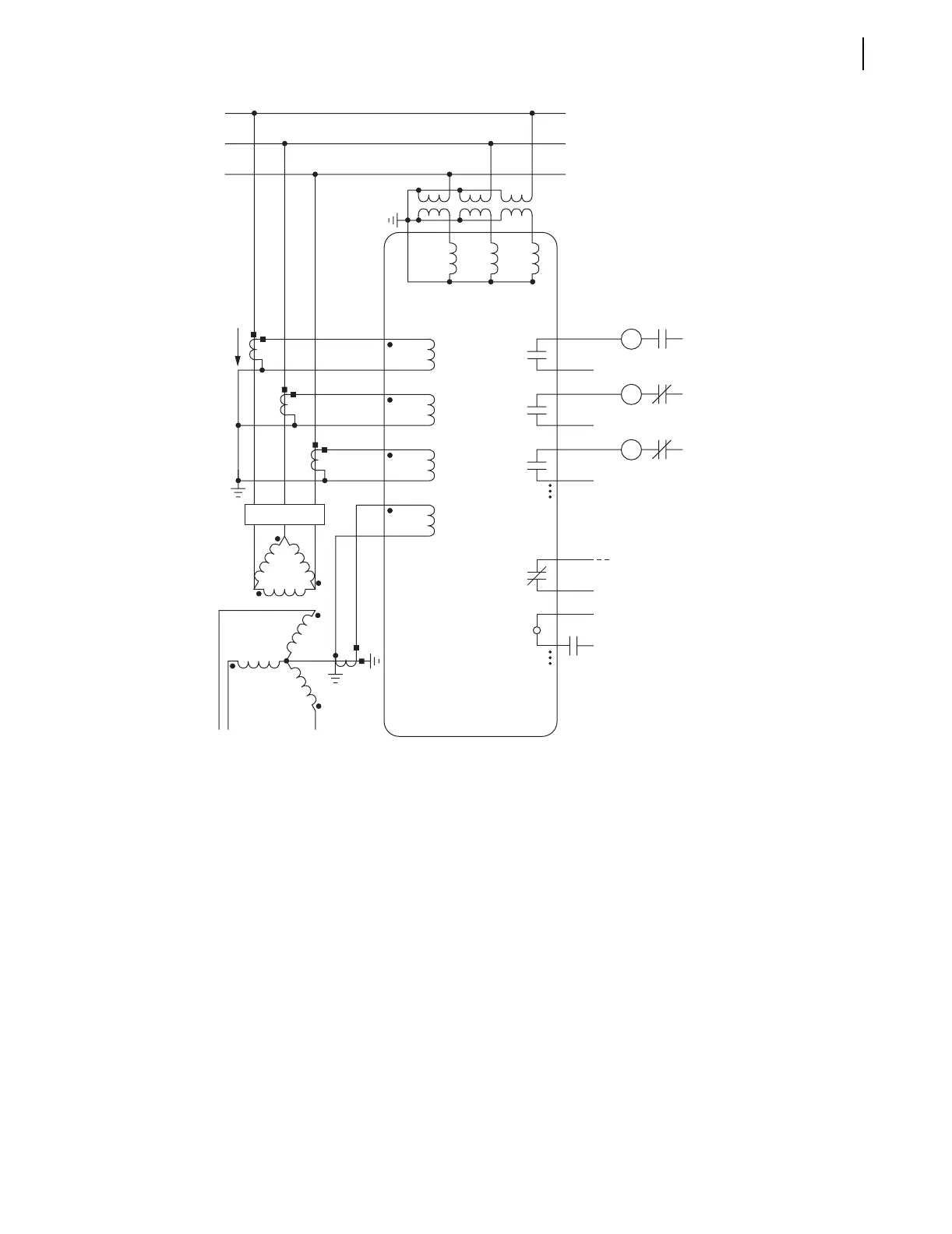

Figure 2.21 SEL-351S Provides Overcurrent Protection for a Delta-Wye Transformer Bank (Wye-Connected PTs)
