OmniHub 6/6D– User Manual
Page 105 of 182
3.5.8.2 OHM-QAMB-02
3.5.8.2.1 Module Status
The Status page contains status information of IP Input, Modulation Output and IP
Output.

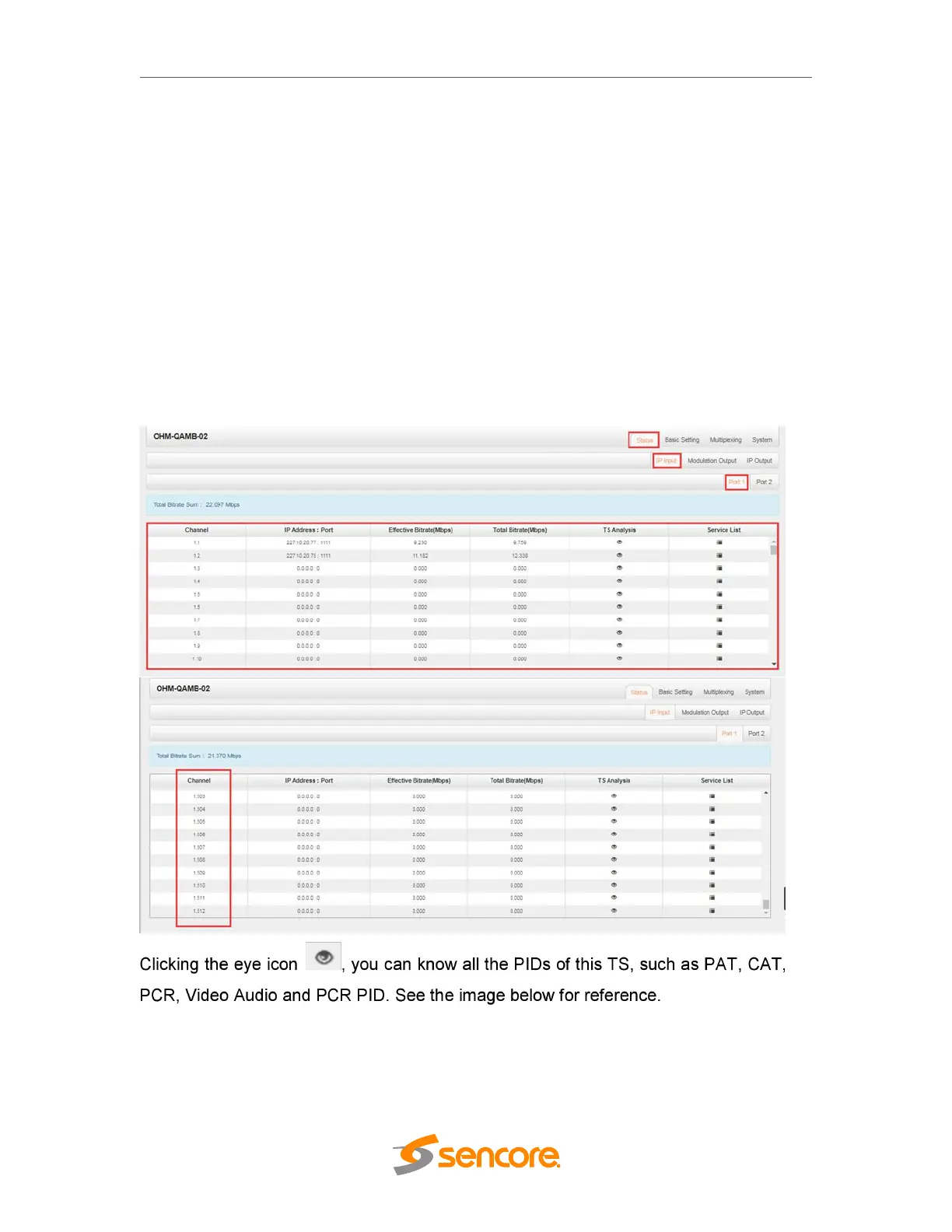

Input > OHM-QAMB-02 has 1024 IP input channels. Those channels are divided into
two RJ45 ports, each of which has 512 IP input channels. Clicking Port 1, you can
obtain status information of the 512 channels, such as input source IP address and port
number, total bitrate (Mbps) and effective bitrate (Mbps). The TS analysis and Service
List button of each channel allow you to check their individual detailed information. See
the image below for reference.
