OmniHub 6/6D– User Manual
Page 36 of 182

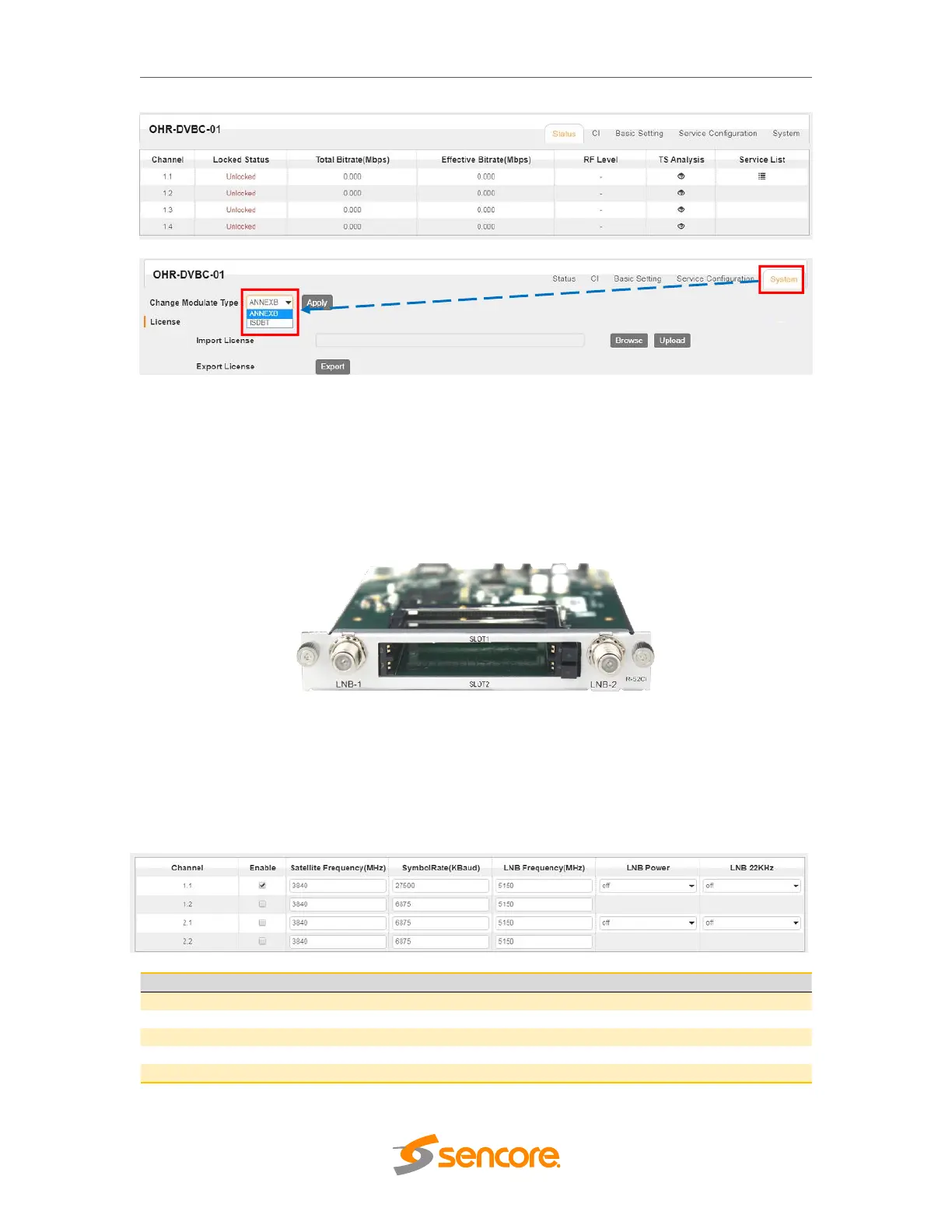

3.3.3 OHR6-DVBS2CI-00
OHR6-DVBS2CI-00 is a 4-channel DVB-S/S2 receiving and descrambling module with 2
RF connectors and 2 CI slots, each RF connector can connect with 2 transponders. The
module has independent power supplies for each LNB.
For Status and CI pages, please refer to OHR6-DVBC-00 module section on page 30 to
32.
3.3.2.1 Module Settings
On the Parameter Settings page of OHR6-DVBS2CI-00 you can input information of the
source signal. The table below show the parameter range of each field. For the LNB
power, Channel 1.1 and 1.2 share power with each other from LNB-1, Channel 2.1 and
2.2 share power with each other from LNB-2.
Name
Range
Satellite Frequency (KHz)
950000~2150000
Symbol Rate (KBaud)
1000~45000
LNB Frequency (KHz)
950000~21500000
LNB Power
Off/13V/18V
LNB 22KHz
Off/22KHz
