OmniHub 6/6D– User Manual
Page 89 of 182

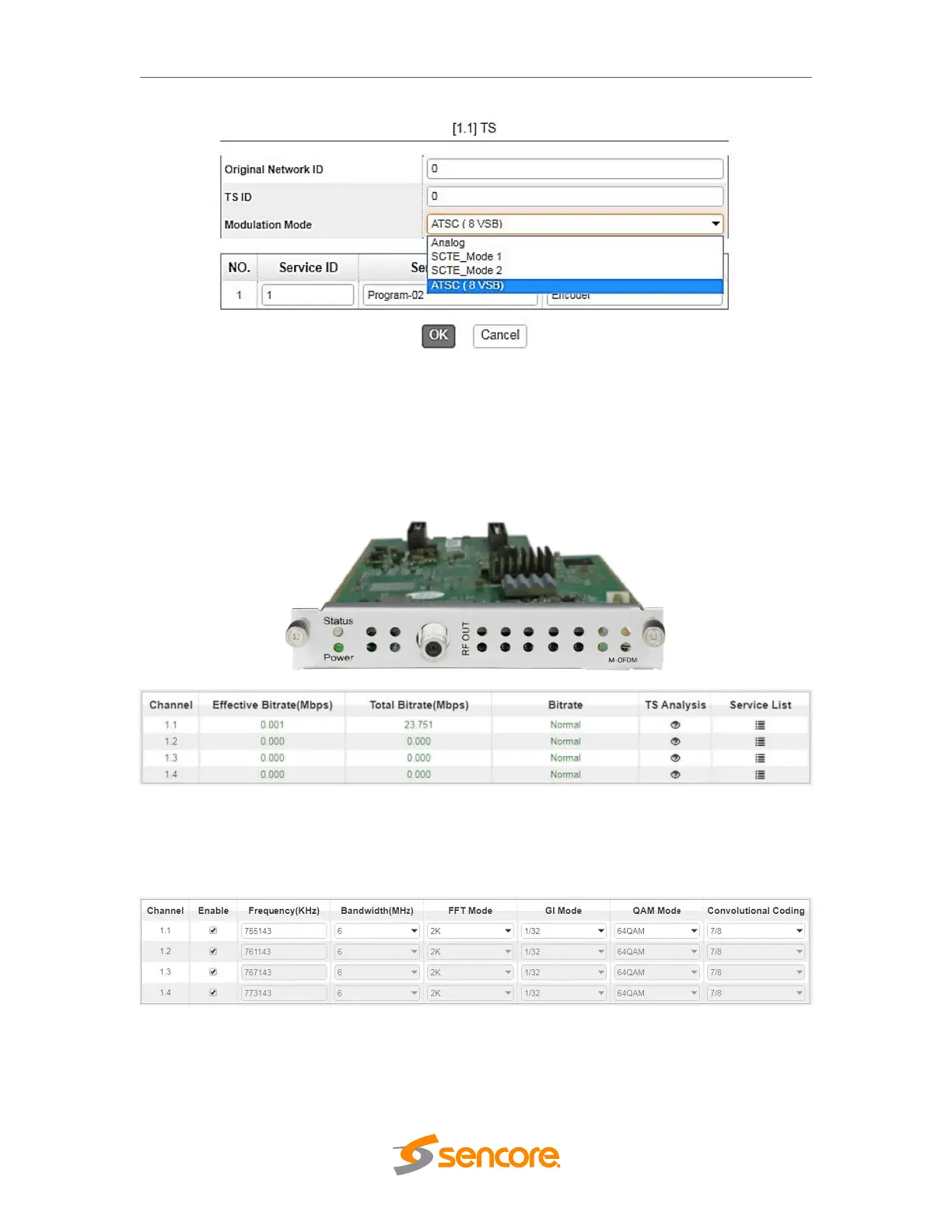

3.5.6 OHM6-OFDM-R01/R01A
OHM6-OFDM-R01 / R01A module supports up to 4/8 adjacent frequencies modulating
with 1 RF female connector for output. The status for the OHM6-OFDM is like in OHM6-
QAMA and another modulator module. It will show Lock Status of each channel when
the signal is stable.
3.5.6.1 Module Basic Settings
For the Settings of OHM6-OFDM-R01
Module Settings is where you can input the source parameters. Once it’s done, click on
Apply for the changes to take effect and check on the Status of the channel that the
signal is Locked.
