OmniHub 6/6D– User Manual
Page 77 of 182
1. Click on (pencil) icon. There will always be a BaseBoard selection for the IP
output and other Output options depending on the module inserted.
2. Select the correct Output and Channel you want to output the service to.
3. Check Multiplex on the channel you want to outputt. You can output multiple
services to one channel or output one service to multiple channels.

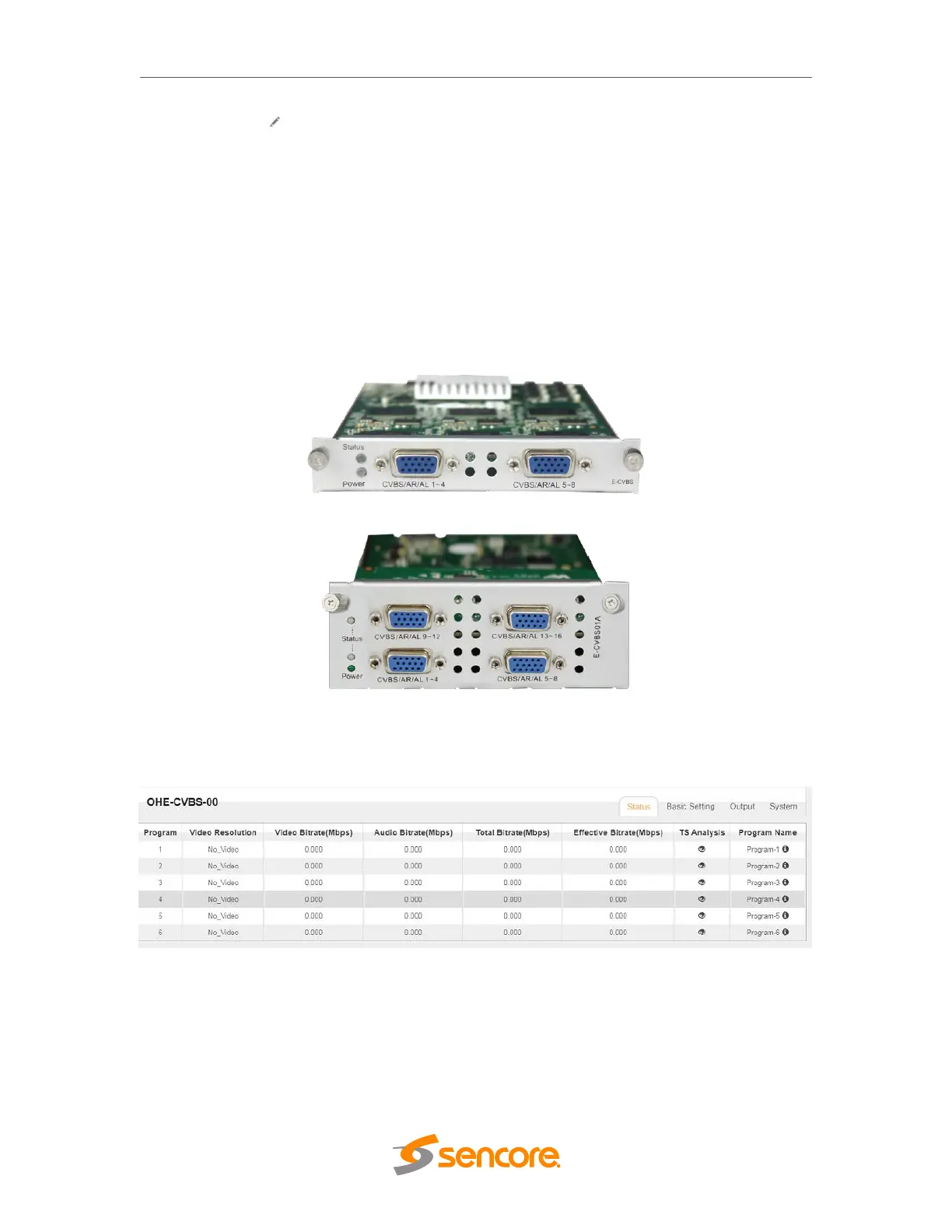

3.4.6 OHE6-CVBS-00/R01/R01A
OHE6-CVBS-00/03/R01/R01A is a 6/8/16-channel CVBS encoder with 2/2/4 DB15
connectors (for 3/4/4-channel respectively). It supports H.264/MPEG-2 SD encoding and
MPEG1-L2, AAC (optional) and AC3 (optional) audio. One difference of the two modules
is, OHE6-CVBS-R01 has insertion features while OHE6-CVBS-00 doesn’t have.
OHE6-CVBS-00/R01(6/8 CH)
OHE6-CVBS-R01A (16 CH)
Like all other modules. OHE6-CVBS Status shows the bitrate of each channel and you
can check the TS Analysis and Service List here. See picture below.
