OmniHub 6/6D– User Manual
Page 43 of 182

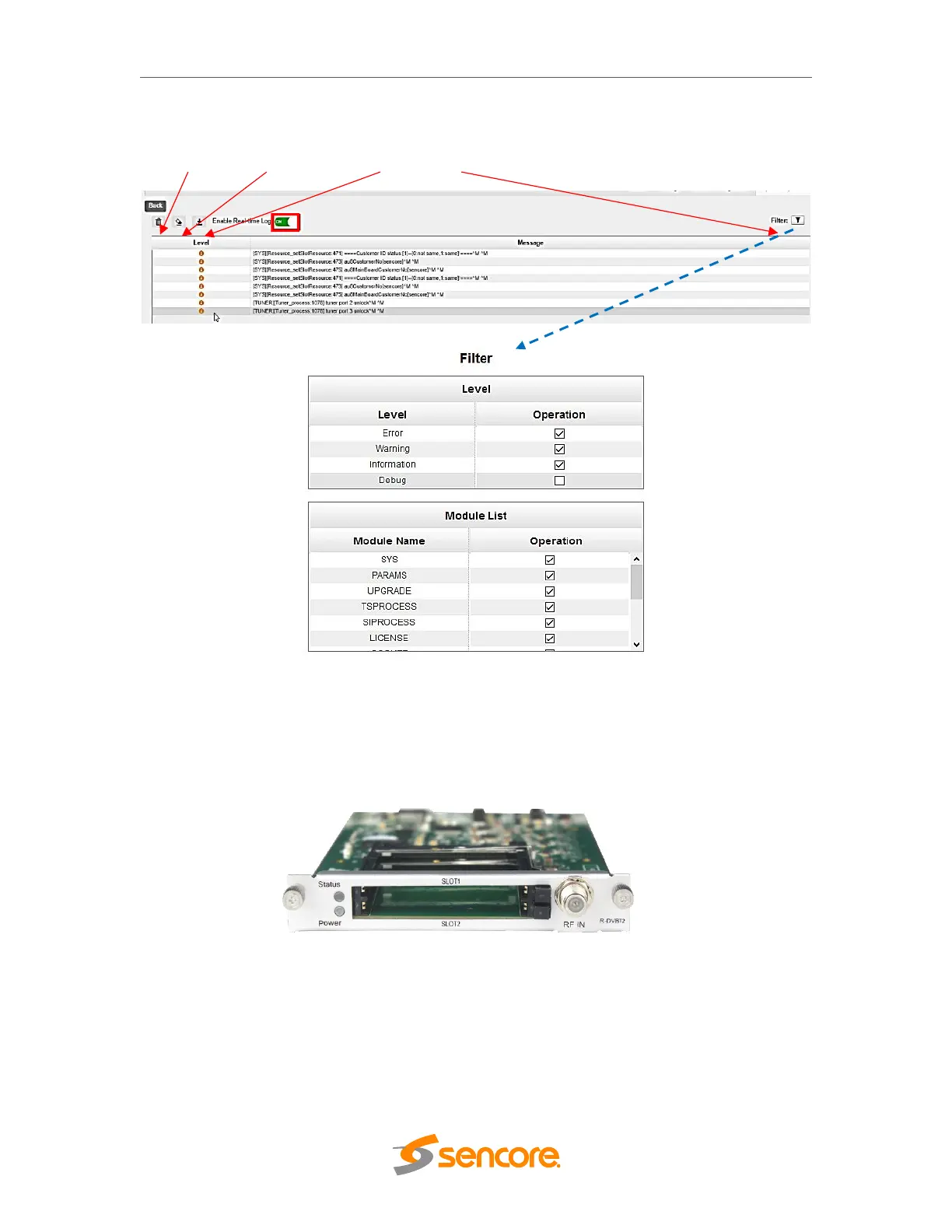

After login is enabled, additional control buttons will be displayed:
- clean log, clean screen, export logs, filter dialog box
3.3.6 OHR6-DVBT2CI-00
OHR6-DVBT2CI-00 is a 4-channel DVBT/T2 receiving and descrambling module with 1
RF female connector and 2 CI slots. It can receive signals via 4 RF channels
simultaneously and support 2 CAM cards descrambling.
3.3.6.1 Module Status
By selecting the OHR6-DVBT2CI-00 in the module list, you will be automatically be
redirected to the status page of the module. It shows the Chanel 1.1 to 1.4 that
corresponds for the 4 input channels of the module. Locked Status of each channel
shows the signals if these channels are locked or unlocked. If the signal is good, there
will be values of Total Bitrate and Effective Bitrate.
