Sencore OmniHub 6 User Manual

OmniHub 6/6D– User Manual
Page 88 of 182

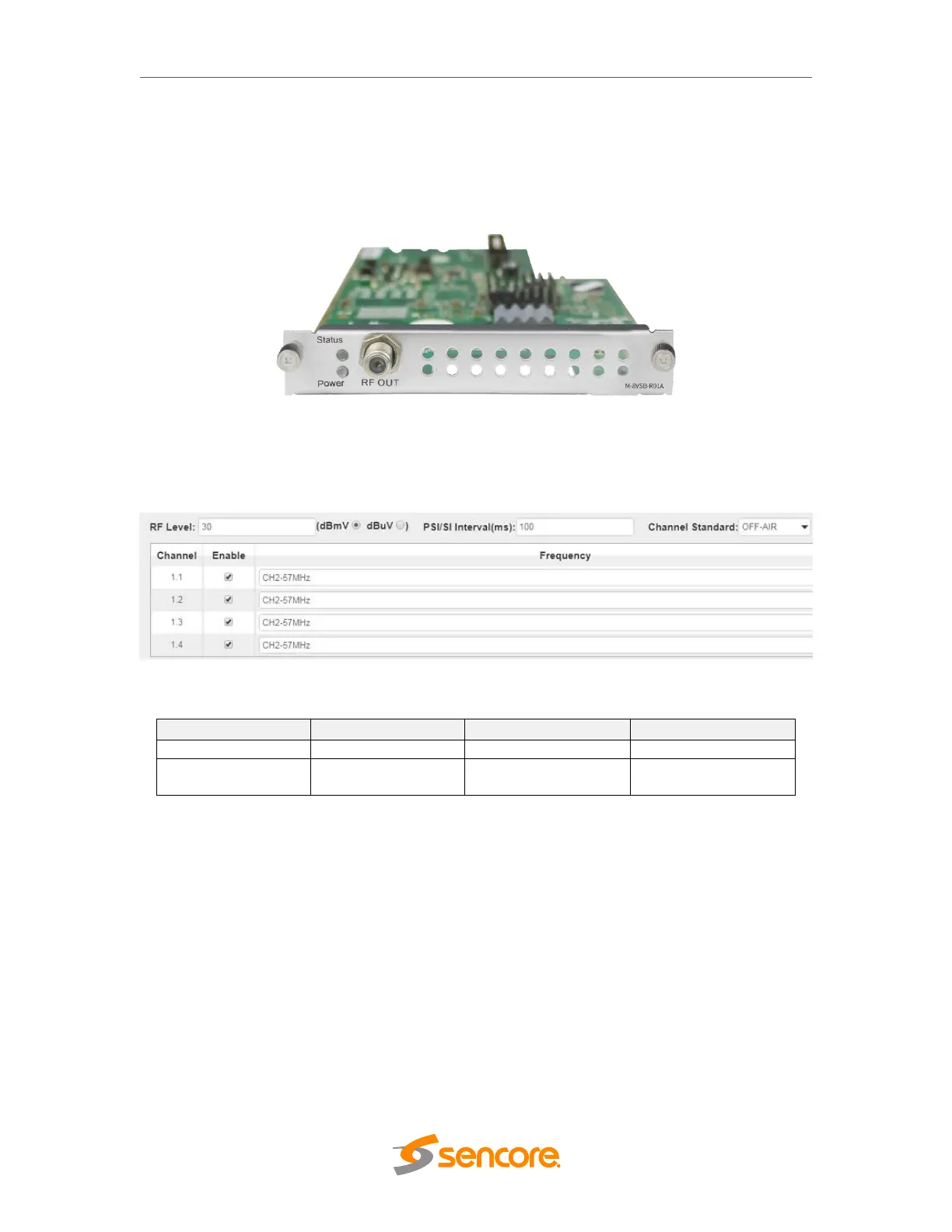

3.5.5 OHM6-8VSB-R01/R01A
OHM6-8VSB-R01A module supports up to 4/8 adjacent frequencies modulating with 1
RF connector for output.
Please see QAM configuration on page 74 for reference
3.5.5.1 Module Basic Settings
Click the Apply button on the right side to make the change take effect.
Name
Range
Name
Range
RF level (dBmV)
28~48
PSI/SI Interval (ms)
50~10000
Channel Standard
OFF-AIR, STD, IRC,
HRC
Channel - Frequency
CH2 - 57MHz ~
CH69 – 803MHz
3.5.5.2 Module Output
TS setting: Please refer to IP output service configuration on page 26 for reference.
Select the modulation mode: Analog, SCTE_Mode 1, SCTE_Mode 2, or ATSC (8VSB).
