OmniHub 6/6D– User Manual
Page 31 of 182
3.3 Receiver Modules

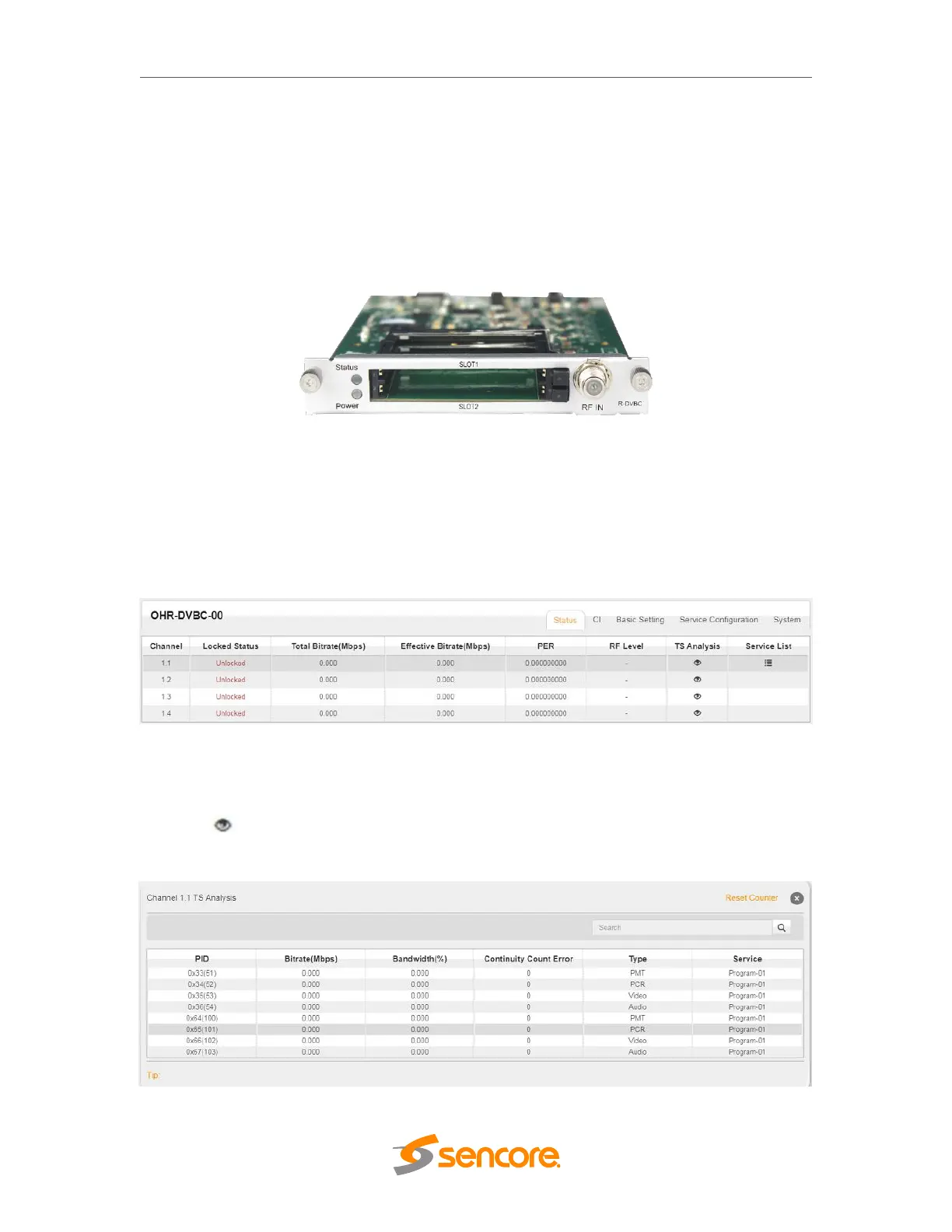

3.3.1 OHR6-DVBC-00
OHR6-DVBC-00 is a 4-channel DVBC receiving and descrambling module with 1 RF
female connector and 2 CI slots. It can receive 4 DVBC signals simultaneously and
support 2 CAM cards for descrambling.
3.3.1.1 Module Status
By selecting the OHR6-DVBC-00 on the module list, you will be automatically redirected
to the Status page of the module. This will display the channels from 1.1 to 1.4 that
represent the 4 input -channels of the module. Once a channel is connected to the
source and configured with correct parameters. The status of the channel will display
‘locked’ and you can see the values of the total bitrate and the actual bitrate.
Total Bit rate in Mbps shows the bitrate of receiving signals of each channel with
LOCKED status, while the Effective Bit Rate in Mbps shows its actual bitrate. RF Level
of the input signal will show you the level of each locked channel.
Clicking under TS Analysis will display the information on the structure of the
transport stream as shown in the picture below.
