OmniHub 6/6D– User Manual
Page 69 of 182
Enable Destination MAC: Generally, you do not need to enable this option. This
is reserved for exceptional cases when the unicast stream cannot be received
with using unicast IP addresses. You can enable destination MAC and streaming
out by setting Destination MAC.

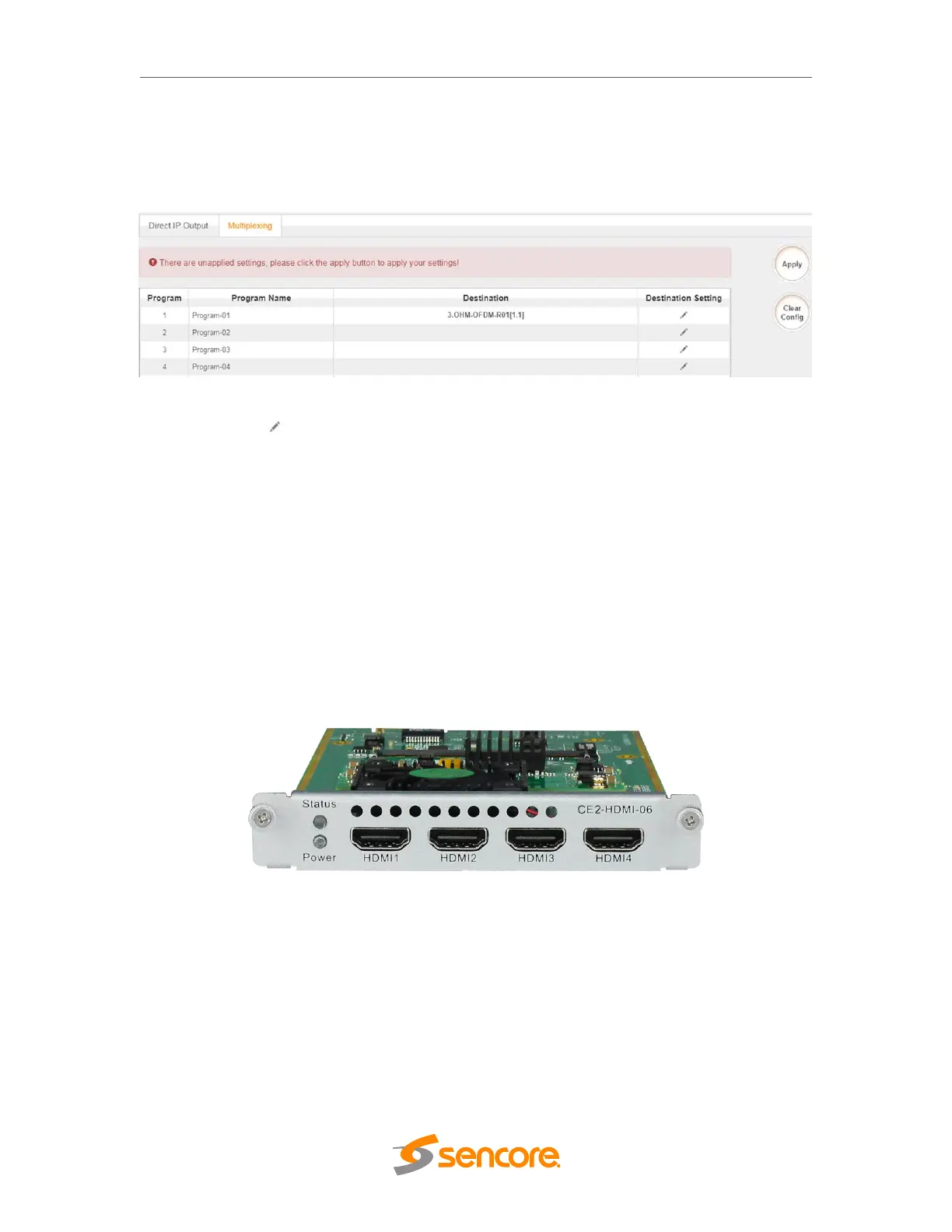

To use Multiplexing mode on service level:
4. Click on (pencil) icon. There will always be a BaseBoard selection for the IP
output and other Output options depending on the module inserted.
5. Select the correct Output and Channel you want to output the service to.
6. Check Multiplex on the channel you want to outputt. You can output multiple
services to one channel or output one service to multiple channels.
3.4.5 OHE6-HMDI-06
OHE6-HDMI-06 module is a 4-channel HDMI high-definition encoding board, support
H.264 HD/SD, support B frame, MPEG1L2 (support), AAC (optional), AC3 (optional),
support superimposed OSD subtitles, logo, two-dimensional Code. H.265 supports up to
4 channels of 1080@p60 input and output; H.264 supports up to 4 channels of
1080@i50/60 input and 4 channels of 1080@p25/30 output. OHE6-HDMI-06 occupies 1
slot in OmniHub 16 chassis.
3.4.5.1 Module Status
Like other Hdmi encoder module. The Status of OHE6-HDMI-06 shows the Bitrate, input
and output Resolution, TS analysis and Service List and Program Name on each
channel as shown in the image below.
