OmniHub 6/6D– User Manual
Page 70 of 182

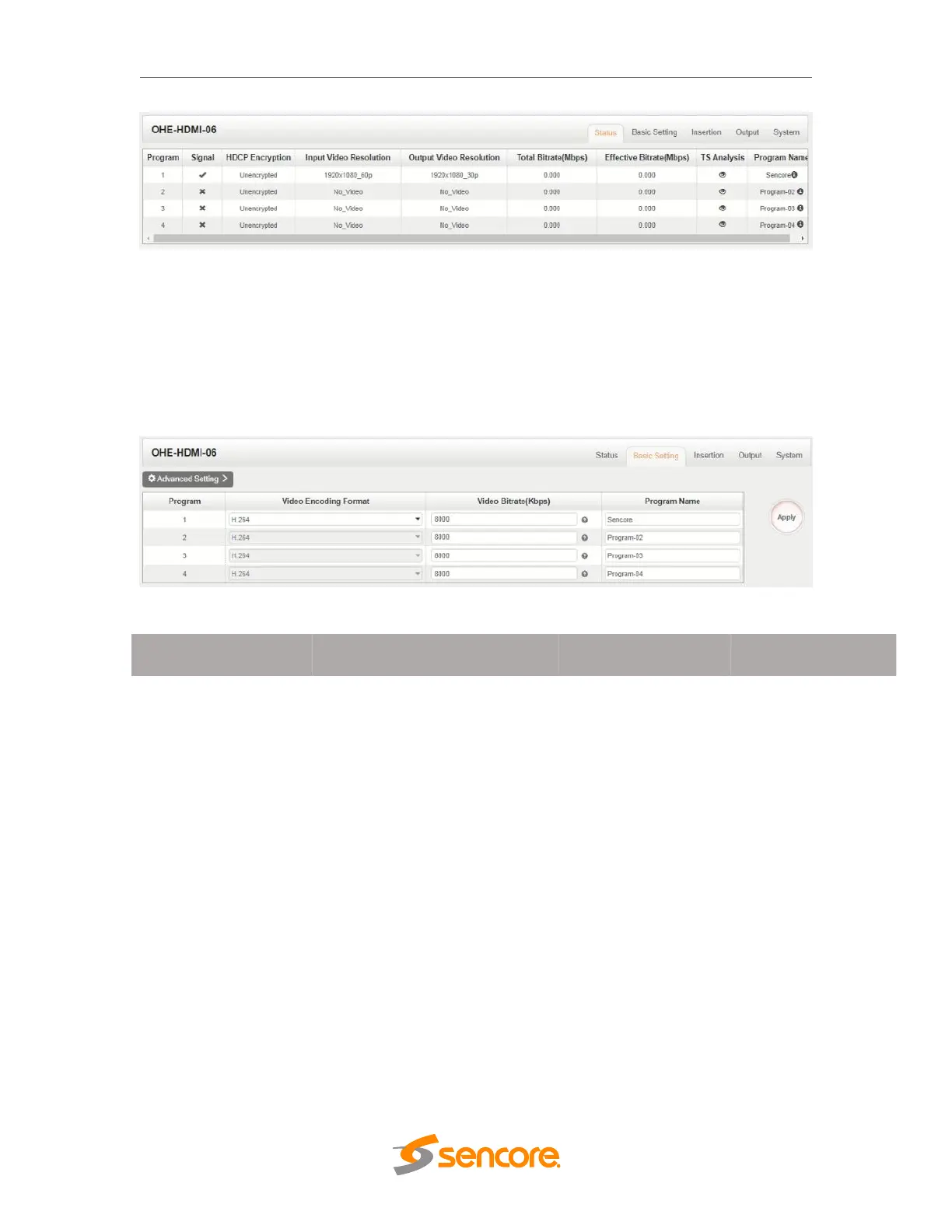

3.4.5.2 Module Basic Settings
This page allows you to modify the Video, Audio and Service Parameters. Click
Advanced Settings to see all parameters you can modify and check specific
parameters you want to set and see. Click the Apply button on the right side to make the
change take effect.
Video Encode
Settings
Range
Video Encode
Settings
Range
Video Type
H.264 , H.265
Video PID
32~8190
Video Bitrate
(Kbps)
600~12000
PCR PID
32~8190
GOP Structure
IPPP/IBBP
PMT PID
32~8190
Video Resolution
Auto ,
Manual（Horizontal
Pixels：160~1920, Vertical
Pixels
：
120~1080,
Framerate：24~60, Scan
Type
：
Progressive
）
Program Name
Length is 1~31
Video Aspect
Ratio
Automatic , 16×9（SD）, 4
×3
（
SD
）
Provider Name
Length is 0~31
Profile
MAIN , HIGH
3.4.5.3 Module Insertion Settings
