OmniHub 6/6D– User Manual
Page 73 of 182

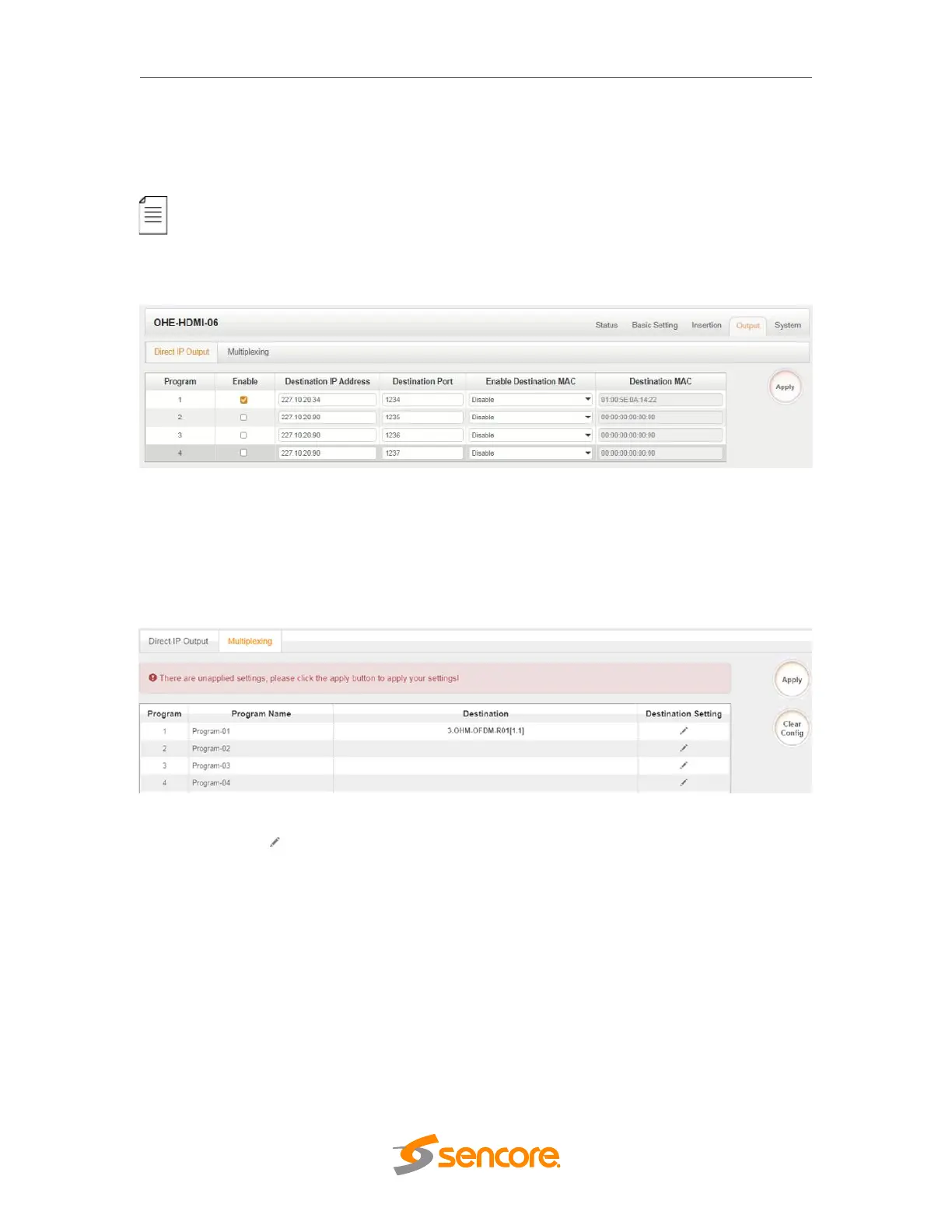

3.4.5.4 Module IP Output
This feature is specifically for encoding a single program and outputting directly to IP. It
will not occupy multicast bandwidth of baseboard.
If you want to use IP output channel on the encoder module and the baseboard IP
module at same time, you should avoid the multicast IP addresses conflicts. If there are
two same IP addresses enabled meantime, all the multicast videos will be affected.
Destination IP Address and Destination Port: for multicast IP addresses or
unicast IP addresses and ports.
Enable Destination MAC: Generally, you do not need to enable this option. This
is reserved for exceptional cases when the unicast stream cannot be received
with using unicast IP addresses. You can enable destination MAC and streaming
out by setting Destination MAC.
To use Multiplexing mode on service level:
1. Click on (pencil) icon. There will always be a BaseBoard selection for the IP
output and other Output options depending on the module inserted.
2. Select the correct Output and Channel you want to output the service to.
3. Check Multiplex on the channel you want to outputt. You can output multiple
services to one channel or output one service to multiple channels.
3.4.5 OHE6-SDI-01
OHE-SDI-01 module supports 2 CH of H.264/AVC HD/SD (up to 1080p60) or MPEG-2
HD/SD (up to 1080i60) encoding via SDI/CVBS input, audio via phoenix connector.
MPEG1-L2, AAC and AC3 audio encoding are available with optional licenses, 2×BNC.
Supports CC Subtitles.
