3.5 Modulation Modules
3.5.1 OHM6-QAMA-00/R00
OHM6-QAM-00 / R00 / R01 / R01A module supports modulating 16 non-adjacent
channels with 1 RF port and 1 RJ45 network port that is reserved for future use. QAM A
and B share the same Hardware but Different Software. If you need to change the
Module from A to B, please contact your local support for assistance.
3.5.1.1 Module Status

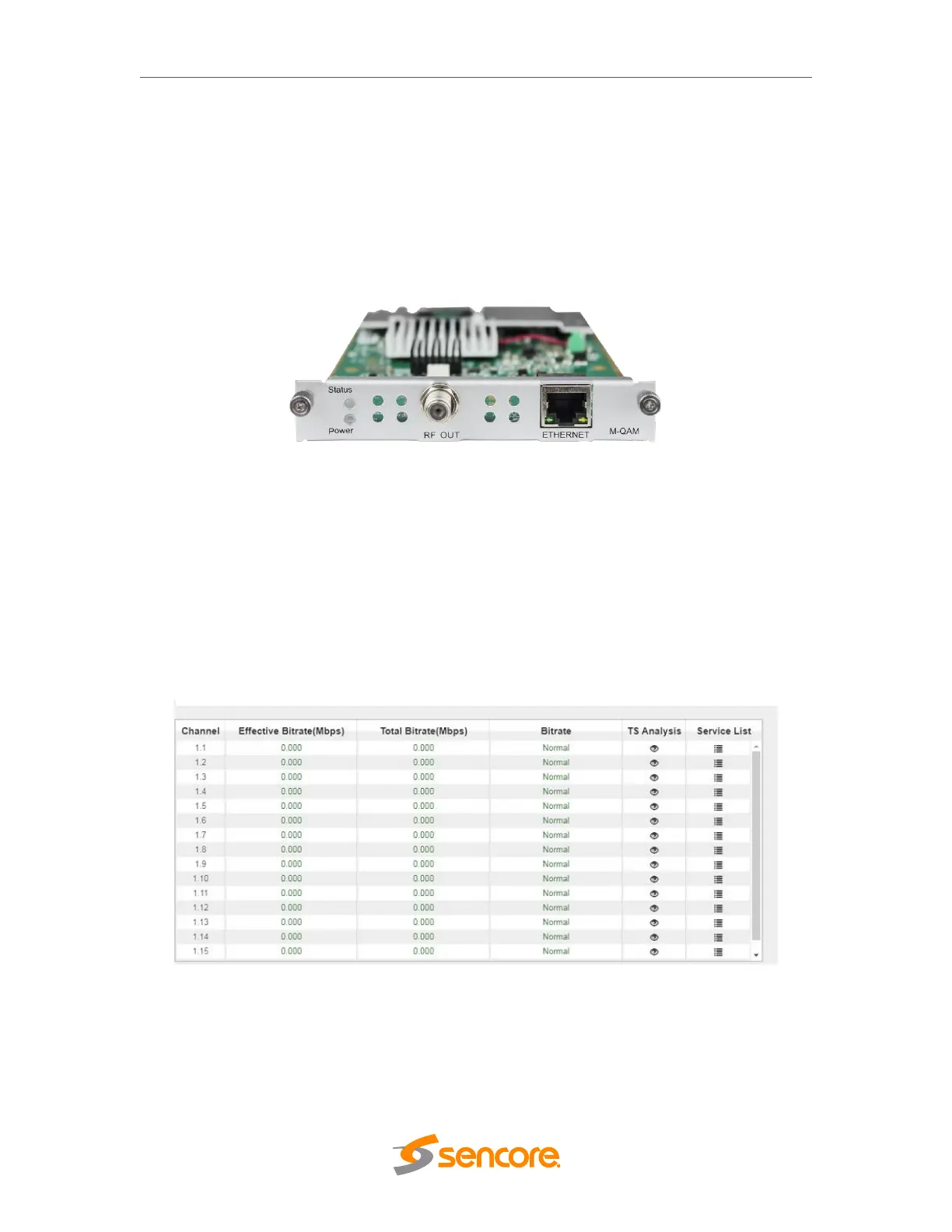

Status of QAMA6-00 shows the Total Bitrate of a TS and the Effective bitrate, with which
you can monitor if the output programs will overflow in a certain TS. Since the Modulator
produces a lot of heat, the Module is also designed to automatically powered off when
the temperature is higher than 74 degrees Celsius (165.2 degrees Fahrenheit). The
status page for all Output modules of OmniHub 6/6D are mostly the same with each
other and with all other modules. You will notice there is not much difference in every link
on the status page. See OHR6-DVBC-00 on page 30 for reference.
3.5.1.2 Module Basic Settings
This page is where you can modify or set the frequency for the RF modulation. OHM6-
QAMA-R00 has 16 non-adjacent channels while OHM6-QAMA-R01 has 4 adjacent
channels both at single port.
