OmniHub 6/6D– User Manual
Page 61 of 182

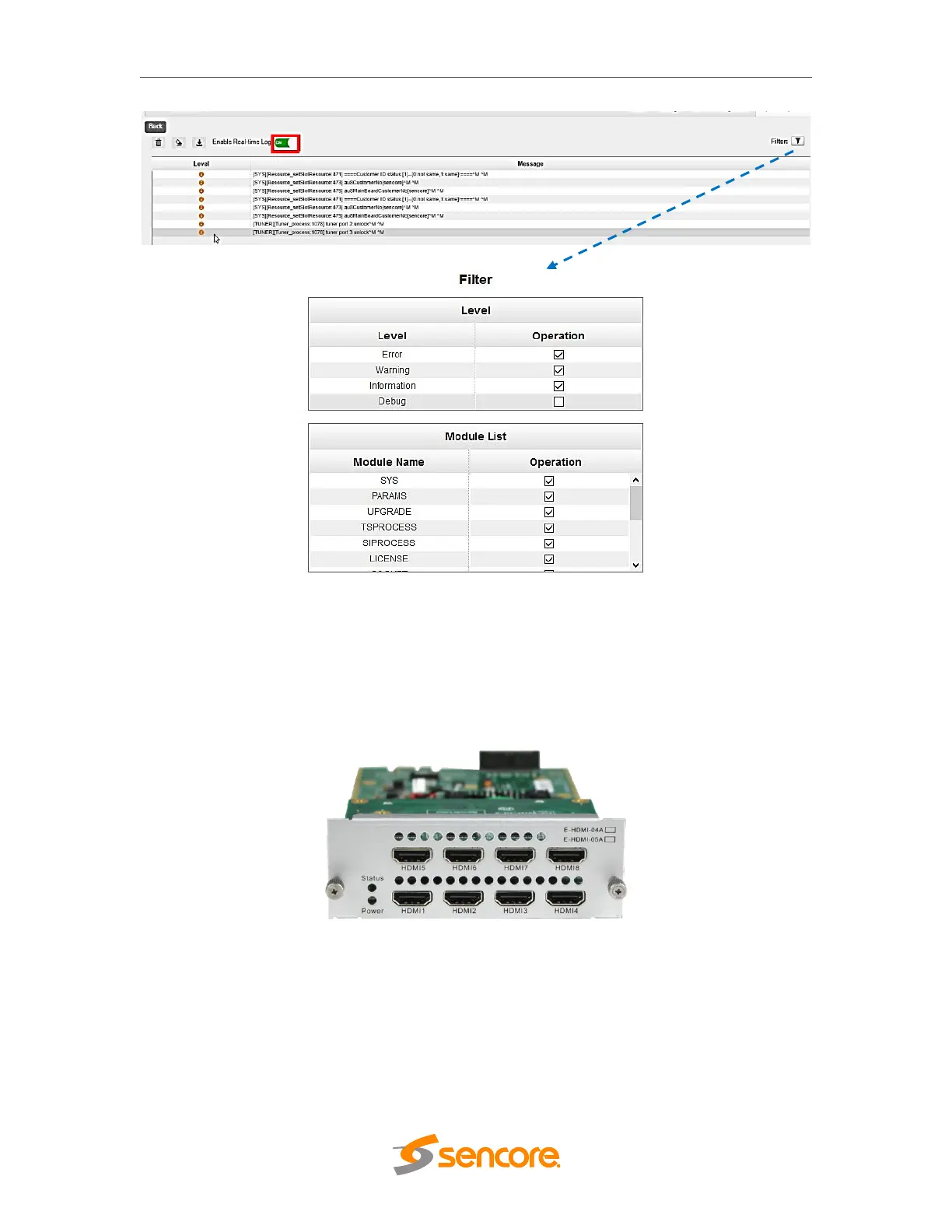

3.4.4 OHE6-HDMI-05/05A
OHE6-HDMI-05/05A module is a 4/8 - channel HDMI encoding module that supports
H.264. This supports AC3 and AAC via license and supports OSD Subtitle, logo picture
and QR code overlay. OHE6-HDMI-05 occupies 1 slot in the chassis and OHE6-HDMI-
05A occupies 2 slots in OmniHub 6/6D chassis.
3.4.4.1 Module Status
Like other Hdmi encoder module. The Status of OHE6-HDMI-05/05A shows the Bitrate,
input and output Resolution, TS analysis and Service List on each channel as shown in
the image below.
